INFICON GAS-Mate leak detector for R600A, R290, and methane/LPG fuels.

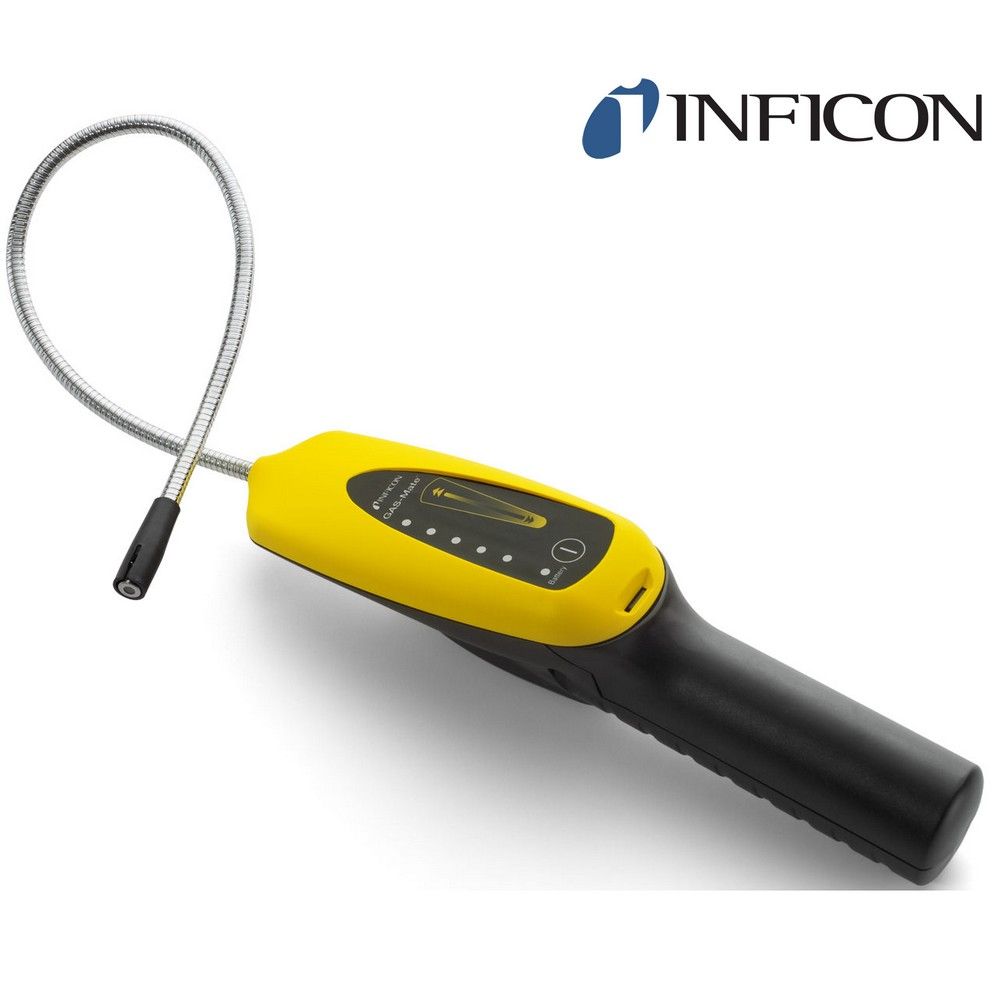

INFICON GAS-Mate Electronic Leak Detector

for refrigerant gases isobutane R600A and propane R290

and combustible gases such as methane and LPG

The GAS-Mate offers twice the sensitivity of other devices on the market: 5 ppm of methane, the main component of natural gas. The GAS-Mate can detect many other combustible gases, such as tracer gas, ammonia, propane, ethanol, and hydrogen sulfide.

SUMMARY OF FEATURES

Sensitive to 5 ppm methane (twice as sensitive as other devices on the market)

Detects methane, hydrogen, propane, butane, cyclopentane, ethane, ethanol, isobutane, ammonia, and tracer gas (95% nitrogen, 5% hydrogen)

? Multiple LEDs and a variable-intensity audio alarm to indicate the extent of the leak

Adjustable sensitivity to quickly locate leaks

? Automatic zeroing to ignore background gas levels in the test area

? Small sensor and probe tip for leak testing in tight spots

? Intrinsically safe certified by Met Laboratories for use in potentially explosive environments

3 year warranty

? Made in the USA

SPECIFICATIONS

The base unit includes : Sensor, two D-size alkaline batteries and a hard plastic carrying case.

Sensitivity 5 ppm methane

Controls: Power button, touch pad

Power: Two D-size alkaline batteries (1.5V) included (use Duracell® MN1300 batteries to maintain intrinsically safe approval)

Battery life: 25 hours

Probe: Flexible rubber-coated metal tube, length approx. 38 cm

Multiple LED alarm indicators and variable intensity audio alarm

Weight with batteries 0.7 kg

Certifications: Intrinsic safety for Class I, Division I, Groups AD, T4 according to MET Laboratories Listing # E112145 II 3G Ex nA nL IIC T4 X according to EN 60079-00 and EN 60079-15

Product Code: 718-202-G11
