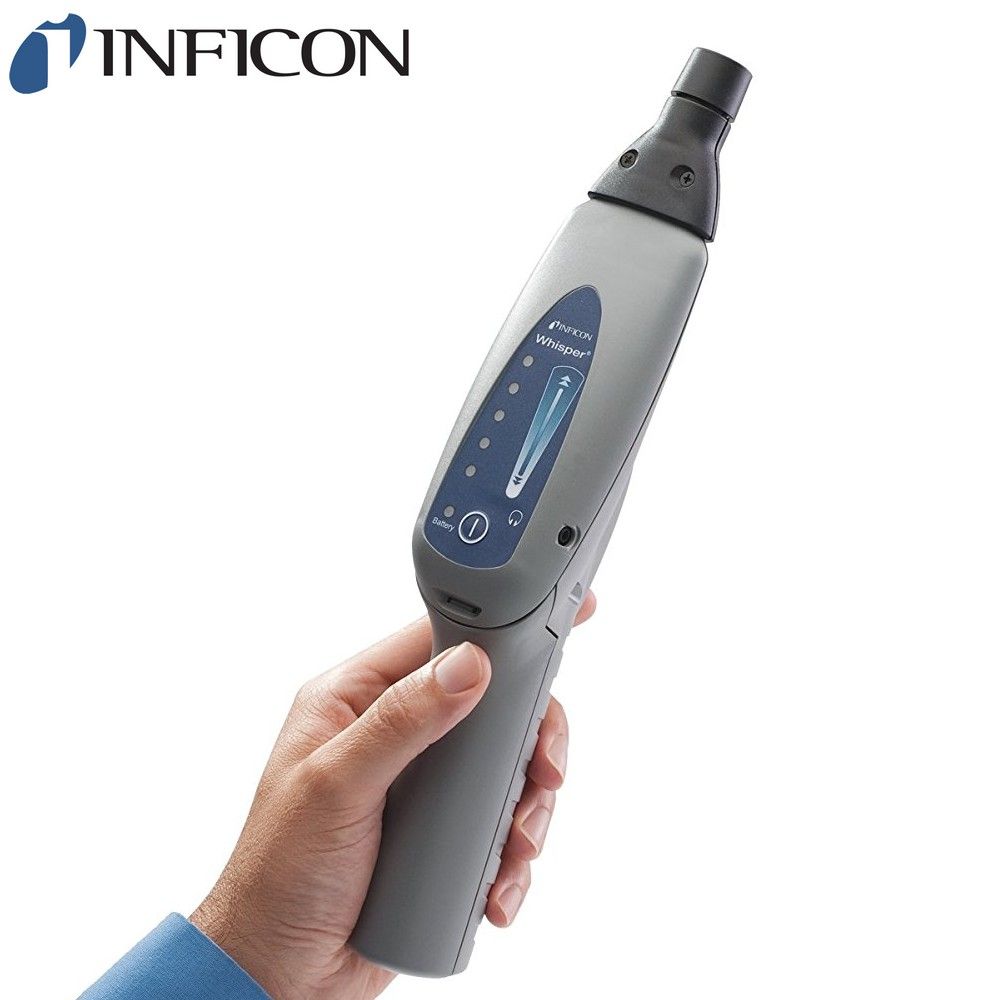

INFICON Whisper Ultrasonic Leak Detector for Gases Under Pressure or Vacuum

INFICON Whisper Ultrasonic

for gases under pressure or vacuum: refrigerant, nitrogen...

Do you need to detect a "special leak" that a gas detector, traditional soap bubble test, or contrast fluid system can't resolve? Whisper is ideal for detecting and locating ultrasonic frequencies generated in the following contexts:

• leaks of any gas under pressure or vacuum

• electric arc

• worn bearings and machinery

• anomalies in the condensate drains

• gasket leaks

The detector is equipped with a special integrated receiver that detects frequencies around 40.5 kHz. Through a sophisticated Whisper system, it identifies the source of the ultrasound and, thanks to a regulation system, eliminates interference caused by external noise. This makes Whisper a versatile solution that can also be used in noisy environments, such as utility rooms.

SUMMARY OF APPLICATIONS

? Refrigerant leaks

Nitrogen leaks

? Identifying worn bearings

Leaks in pneumatic systems

Leaks in compressed air systems

Leaks in vacuum systems

? Diagnosis of solenoid valve operation

? Condensate drains

Leaks in sealed areas (refrigerated containers, vehicles, etc.)

? Electric arc

Unit includes: High quality headphones, accessory probe including metal contact, rubber extension cord, ultrasonic transmitter with 9V battery, two D-size alkaline batteries, hard plastic carrying case

Controls: Power button, touch pad keyboard

Power supply: Two D-size alkaline batteries (included)

Battery life 165 hours

Weight with batteries 0.68 kg

2 year warranty

Product Code: 711-203-G11
