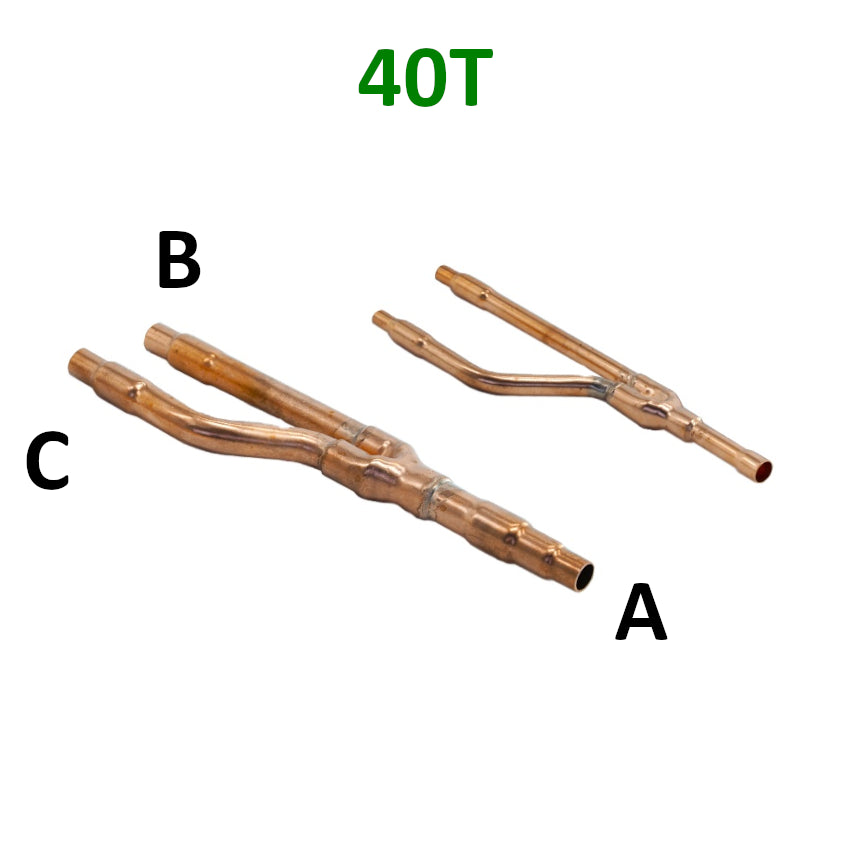

Copper branch joint for DAIKIN 40T VRV / VRF system

MODEL

LINE

TO

B

C

22T

Steam Line

19.05/15.88/12.70

19.05/15.88

15.88/12.70

Liquid Line

9.52

9.52/6.35

9.52/6.35

33T

Steam Line

19.05/22.22

19.05/15.88

15.88/12.70

Liquid Line

12.70/9.52

9.52/6.35

9.52/6.35

37T

Steam Line

25.4/28.58/31.80

25.40/19.05/15.88

19.05/15.88/12.70

Liquid Line

12.70/15.88

12.70/9.52

12.70/9.52/6.35

40T

Steam Line

31.80/38.10

31.80/28.58/25.40

25.40/19.05/15.88

Liquid Line

19.05/15.88

19.05/15.88/12.70

15.88/12.70/9.52
