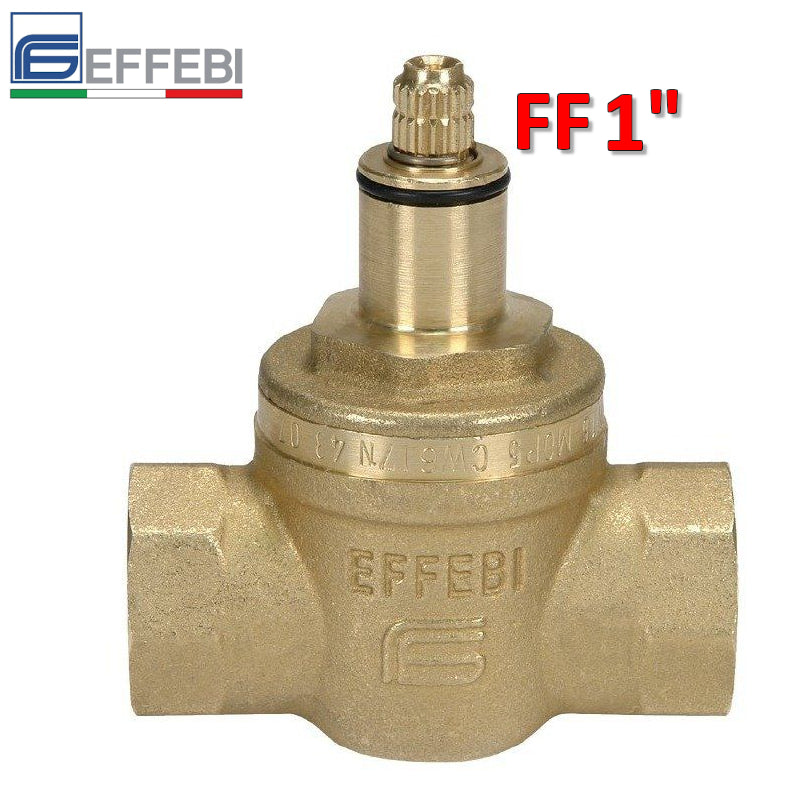

INCAS EXTRA female-female pull-out valve with 1" water teflon-coated ball

REMOVABLE VALVE - INCAS EXTRA

FEMALE FEMALE 1" - TEFLON-COATED BALL

DESCRIPTION:

• the INCAS EXTRA full bore valve has been designed to give the possibility of replacing one or more sealing components if necessary, without changing the valve body.

• the INCAS EXTRA full bore valve is equipped with the patented TOP-ENTRY maintenance system, which allows for easy replacement of the gaskets without replacing the valve body.

• the special patented sphere-body shape allows water to recirculate, avoiding stagnation and therefore the possible formation of bacteria.

• Extension kits are available to increase the distance between the valve and the accessories by multiples of 15 mm (K250).

• the valve with anti-scale ball surface treatment is available for systems with very hard water.

Areas of use:

The INCAS EXTRA valve is used for concealed installation in sanitary and heating systems.

Threaded ends:

female standard to UNI ISO 7/1 (UNI EN 10226) standards.

Operating organs:

Knob with rosette (K210) including extension, lever with rosette (K200) including extension, closed cap with operating key (K204), 15mm extension (K250).

The direction of flow can also be detected from the marking on the operating stem.

All valves comply with Directive 97/23/EC and are 100% tested with an electronically controlled pneumatic leak test.

TEMPERATURE LIMITS

from -15°C to +110°C

PRESSURE LIMITS

PN16 (20°C)

Product Code: 1680G206
