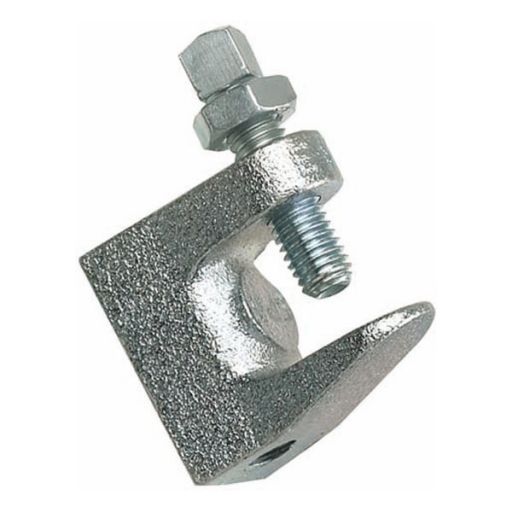

Galvanized malleable cast iron clamp ØM8

GALVANIZED CAST IRON CLAMP

ØM8

TECHNICAL FEATURES:

? A: 3-17 mm

? B: 35 mm

? C: 20 mm

? D: 36 mm

? And: 19 mm

• Galvanized malleable cast iron

• Electrolytic zinc plating UNI ISO 2081:2018 thickness 6 ÷ 9 [µm]

• Zinc-plated class 8.8 steel screw

• Zinc-plated class 8 steel nut

FEATURES: Cast iron clamp for fastening to the flanges of steel beams without drilling or welding. Supplied complete with clamping bolt and locknut.

USE: For creating suspension systems when the fastening material is steel beams. This allows for the creation of support systems for plumbing, electrical, air conditioning, and ductwork. The loads indicated have a yield strength factor of 4.

Product Code: 14810
