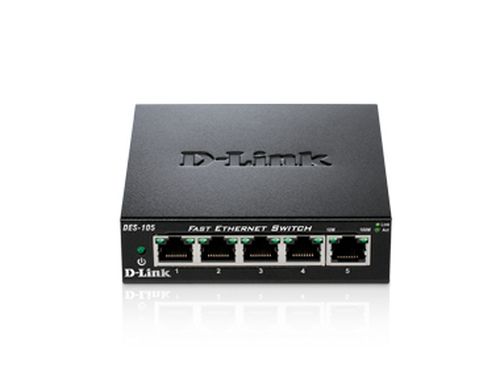

D-LINK SWITCH 5 PORTS 10/100 METALLIC CASE

The DES-105 are unmanaged switches with QoS features for traffic prioritization and optimal performance and experience for VoIP calls, multimedia streaming, and Internet browsing. Additionally, they consume very little power, making them ideal for creating or expanding a small Ethernet network without requiring specialized IT skills. These switches feature a metal housing and provide a cost-effective solution for demanding network needs. The metal housing ensures the switches are grounded, offering a variety of environmental options and making them ideal for placement in larger cabinets, public areas, and active/hazardous areas.

- Plug and play operation for ease of installation
- 5 Fast Ethernet port models available
- Non-blocking architecture: maximum simultaneous throughput on all ports
- Quiet fanless operation, suitable for any environment
- Quality of Service (QoS) code for traffic prioritization and optimal performance for multimedia content transmission, VoIP calls and Internet browsing
- Robust metal product housing: suitable for use in typical industrial environments such as factories and construction sites
- Equipped with a slot for a Kensington security lock to allow the switch to be positioned in various locations
- D-Link Green™ technology saves energy and extends product life

The DES-105 Fast Ethernet switches provide businesses with a cost-effective way to create a small network and connect computers, wireless access points, IP cameras, network printers and other Ethernet devices quickly and easily, without complicated configuration.

These switches feature 5 Fast Ethernet ports with auto-sensing to detect the maximum speed of connected devices, allowing you to manage your network for the best possible performance. The fanless design allows them to operate completely silently, making them ideal for offices, libraries, or meeting rooms.

Layer2 Features

- MAC address table: 2K
- Auto MDI/MDIX crossover for all ports
- Store-and-forward switching scheme
- Full/half-duplex for Ethernet/Fast Ethernet speeds
- Full-duplex only for Gigabit Ethernet speed
- Jumbo Frames: 9000 Bytes

Switching fabric

- 10 Gbps

Data Transfer Rates

- Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
- Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
- Gigabit Ethernet: 2000 Mbps (full duplex)

Packet Filtering/Forwarding Rates

- Ethernet: 14,880 pps per port
- Fast Ethernet: 148,800 pps per port
- Gigabit Ethernet: 1,488,000 pps per port

RAM Buffer

- 128 KB

LED Indicators

- By port: Link/Activity/Speed
- For device: Power

Quality of Service (QoS)

- Supports 802.1p QoS
- 4 Queues, Strict Mode

Green features

- Energy Efficient Ethernet (EEE) standard
- D-Link Green: power saving by cable length detection
- RoHS compliant

Power

- External 5 V/1 A Level “V” Power Adapter

Power Consumption (DC input)

- Standby: 0.5 W.
- Maximum: 2.01 W.

MTBF

- 1,688,338 hours

Temperature

- Operating: 0 to 50 °C
- Storage: -10 to 70 ?C

Humidity

- Operating: 10% to 90% RH non-condensing
- Storage: 5% to 90% RH non-condensing

Dimensions (W x D x H)

- 100 x 98 x 28 mm

Certifications

- FCC Class B
- ICES-003 Class B
- CE Class B
- C-Tick Class B
- VCCI Class B
- cUL
- CB
