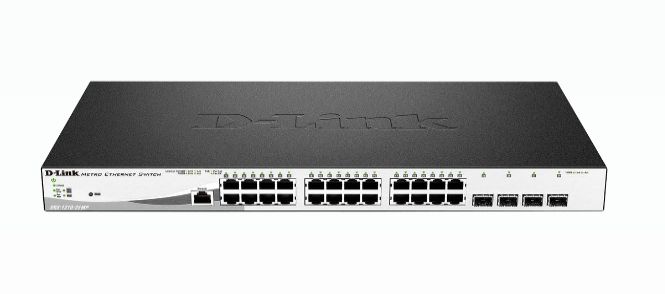

D-Link DGS-1210-28MP/E Managed Network Switch L2 Gigabit Ethernet (10/100/1000) Support Power over Ethernet (PoE) 1U Black,

D-Link DGS-1210-28MP/E. Switch type: Managed, Switch level: L2. RJ-45 port type: Gigabit Ethernet (10/100/1000), RJ-45 port quantity: 24, Console port: RJ-45. Full duplex. MAC address table size: 16,000 entries, Switching capacity: 56 Gbit/s. Network standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE) support. Rack mount, Form factor: 1U

Switch type

Managed

Switch Level

L2

Quality of Service (QoS) support

Yes

Web-based management

Yes

Traffic classification

Yes

MIB Support

RFC1213MIB II, RFC1493, RFC1907, RFC1757, 2819, RFC2021, RFC1398, 1643, 1650, 2358, 2665, RFC2674, 4363, RFC 2233, 2863, RFC 2618, RFC 2620, RFC 2925

Number of RJ-45 ports

24

RJ-45 port type

Gigabit Ethernet (10/100/1000)

Number of SFP modules installed

0

Number of SFP+ modules installed

0

Number of SFP module slots

4

Fiber optic connector

SFP

Console port

RJ-45

Network standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support

No

Ethernet technology over copper cables

10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T

Door mirroring

Yes

Full duplex

Yes

IP Routing

Yes

Flow control support

Yes

Link grouping

Yes

Speed ​​limit

Yes

Auto MDI/MDI-X

Yes

Opening protocol tree

Yes

Self-negotiation

Yes

VLAN support

Yes

Virtual LAN Features

MAC address-based VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN

Number of VLAs

4094

Electrical cable fiber technology

1000BASE-X

MAC table dimensions

16,000 entries

Switching capacity

56 Gbit/s

forwarding rate

41.7 Mpps

Store-and-forward

Yes

Number of queues

8

Number of static routes

32

Jumbo Frames Support

Yes

Jumbo Frame

9216

Packet memory buffer

1.5 MB

DHCP Features

DHCP client

Access Control List (ACL)

Yes

Access Control List (ACL) Rules

256

IGMP snooping function

Yes

Supported security algorithms

802.1x RADIUS, SNMP, SSH

SSH/SSL support

Yes

Loop back protection

Yes

BPDU Protection/Filter

Yes

IP-MAC-Port binding function

Yes

Authentication

Guest VLAN, MAC-based Authentication, Port-based Authentication

Multicast support

Yes

Multicast listener discovery (MLD) snooping

MLD v1, MLD v2

Rack mounting

Yes

Form factor

1U

Product color

Black, Grey

LED indicators

Activity, Smoke Extractor Fan, Connection, Power, Speed

Number of fans

2 fan(s)

Electromagnetic compatibility

FCC A, CE A, VCCI, C-Tick, BSMI, CCC

Memory type

DDR3-SDRAM

Installed RAM

256 MB

Flash memory

32 MB

Acoustic emission

52.4 dB

Diet

AC/DC

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Consumption

27.49 W

Power over Ethernet (PoE) support

Yes

Power over Ethernet (PoE) ports quantity

24

Operating temperature range

-5 - 50 °C

Temperature range

-40 - 70 °C

Operating humidity range

10 - 90%

Humidity

5 - 90%

Heat dissipation

850.58 BTU/h

Length

440 mm

Depth

210 mm

Height

44 mm

Weight

3.86 kg

Certification

IEC61000-4-5, RoHS

Harmonized System Code (HS)

85176990
