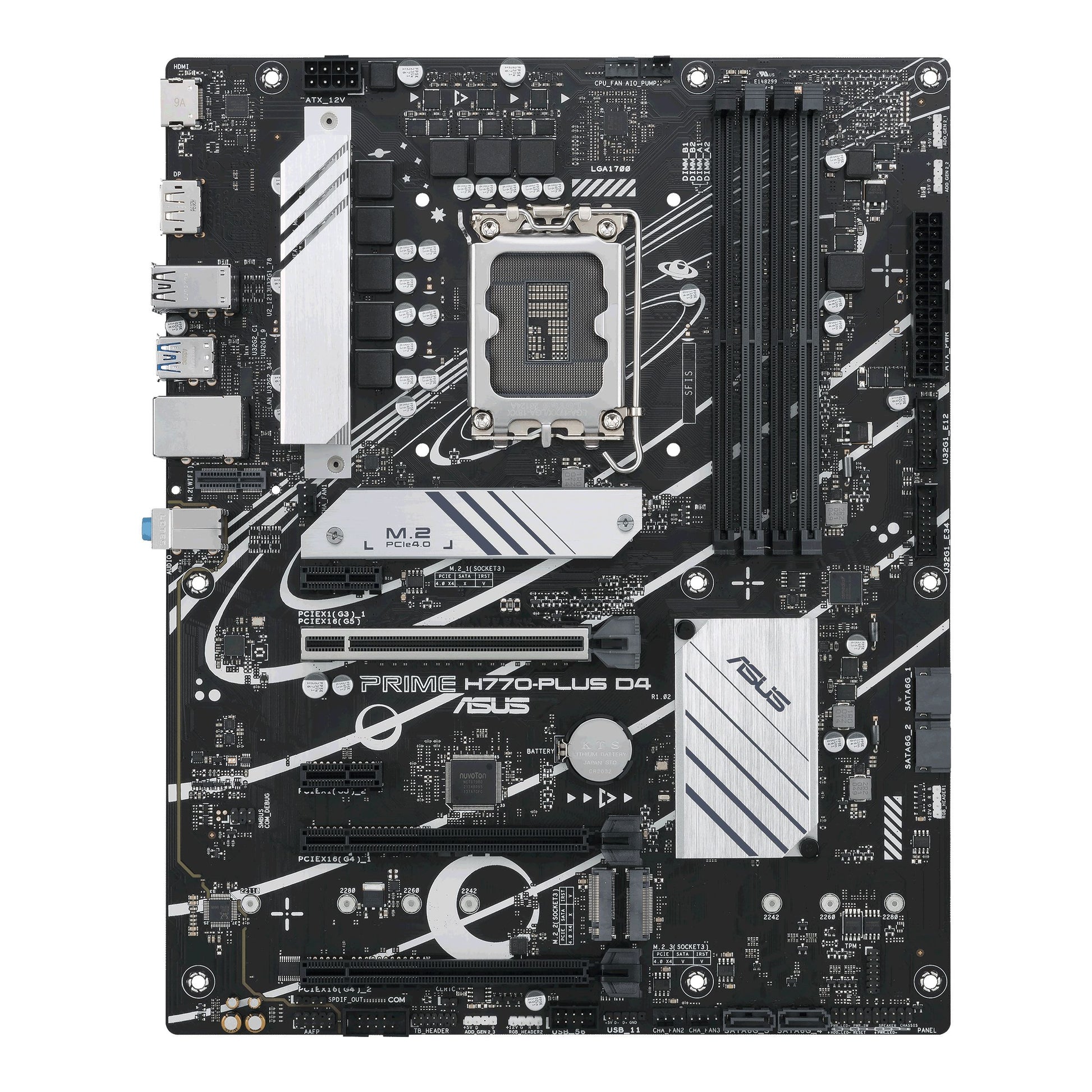

ASUS PRIME H770-PLUS D4 Intel H770 LGA 1700 ATX

ASUS PRIME H770-PLUS D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum supported RAM: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible Processors

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Maximum number of SMP processors

1

Socket Supported Processors

LGA 1700

Supported memory types

DDR4-SDRAM

Number of memory slots

4

Maximum RAM supported

128 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

Non-ECC

Supported memory speeds

5066,5000,4800,4600,4400,4266,4000,3733,3600,3466,3400,3333,3200,3000,2933,2800,2666,2400,2133 MHz

Supported memory clock speed (max)

5066 MHz

Without buffer

Yes

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

Number of hard drives supported

4

number of supported storage devices

7

RAID support

Yes

RAID Levels

0, 1, 5, 10

Parallel processing technology

Not supported

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

S/PDIF output connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

3

Frame intrusion connector

Yes

EPS Power Connector (8-Pin)

Yes

Number of COM connectors

1

TPM connector

Yes

Thunderbolt ports

1

Connector with 12V power

Yes

RGB LED connector

Yes

Number of USB 2.0 ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

1

Quantity of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

0

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

0

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

HDMI version

2.1

DisplayPort Quantity

1

DisplayPort version

1.4

Headphone outputs

1

Line input

Yes

Microphone input jack

Yes

Wi-Fi

No

Ethernet LAN connection

Yes

Ethernet Interface Type

2.5 Gigabit Ethernet

Component for

PC

Motherboard Form Factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel H770

Audio system

7.1 channels

Cooling type

Passive

Power supply type

ATX

Supported Windows operating system

Windows 10, Windows 11

PCI Express x1 slot (Gen 3.x)

2

PCI Express x16 slot (Gen 4.x)

2

PCI Express x16 slot (Gen 5.x)

1

Number of M.2 slots (M)

3

BIOS Type

UEFI AMI

BIOS Memory Size

192 Mbit

Packaging width

328 mm

Packaging depth

53 mm

Packaging height

266 mm

Packaging weight

1.13 kg

Length

305 mm

Depth

244 mm

Cables included

SATA

User Guide

Yes

Number of M.2 slots (E)

1
