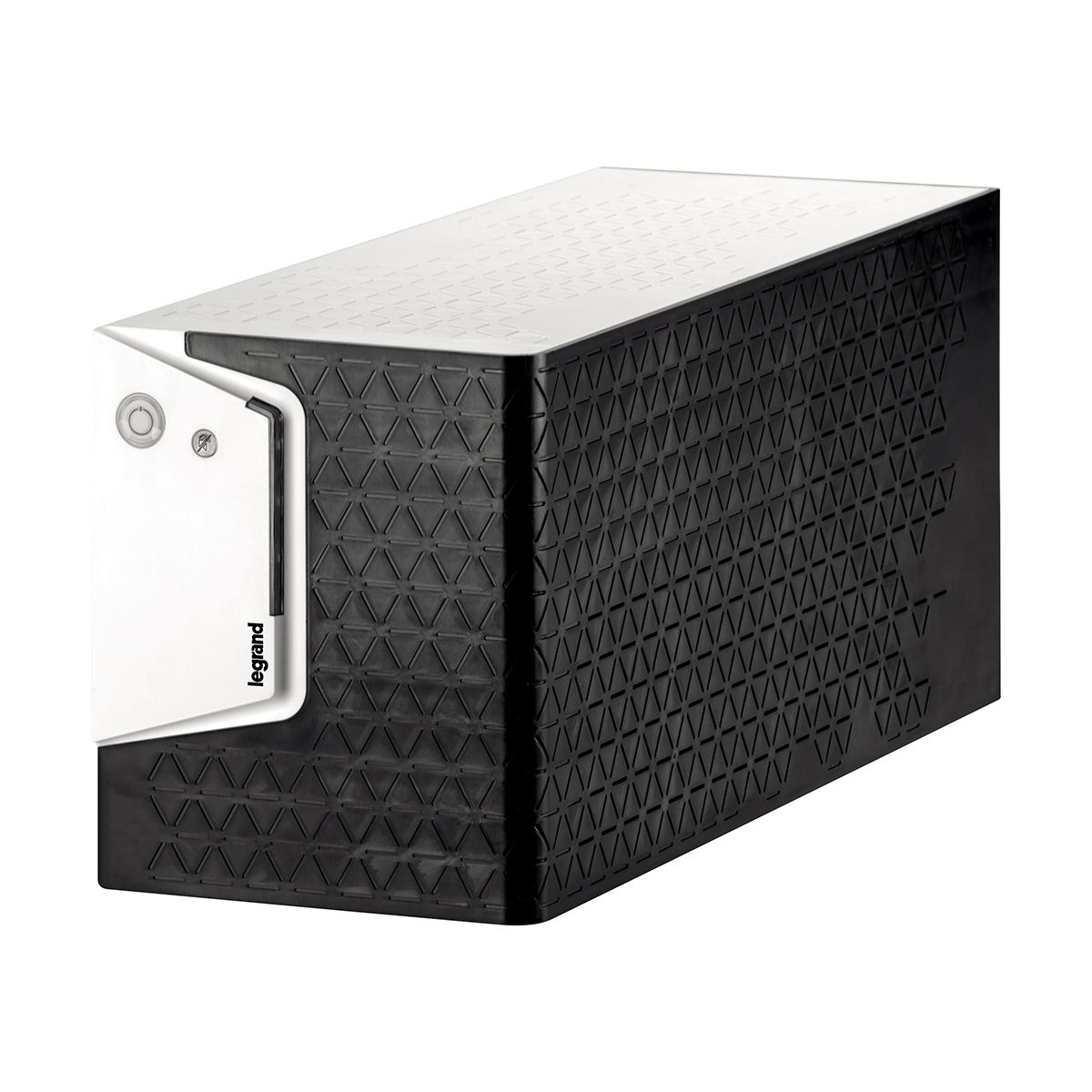

Legrand Keor ASI SP 1000 GR line-interactive uninterruptible power supply (UPS) 1 kVA 600 W 4 AC outlet(s)

Keor SP UPSs are single-phase uninterruptible power supplies with line-interactive technology. They deliver a nominal power of 600-800-1000-1500-2000VA, are CPU-controlled, and are equipped with hermetically sealed, maintenance-free, valve-regulated lead-acid batteries.

The presence of an internal electronic stabilizer (AVR) ensures effective protection for the connected loads against disturbances in the electrical network.

Legrand Keor ASI SP 1000 GR. UPS topology: Line-interactive, Output power: 1 kVA, Output power: 600 W. AC outlet type: C13 coupler, Power socket: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Lead acid (VRLA), Battery capacity: 7 Ah. Form factor: Mini Tower, Product colour: Black, White. Certificates of conformity: CE, Certification: EN 62040-1, EN 62040-2

UPS Topology

Interactive line

Output power

1 kVA

Output power

600 W

Waveform

Sinusoidal

Input operating voltage (min)

170 V

Input operating voltage (max)

280 V

Input frequency

45/65 Hz

Output operating voltage (min)

207 V

Output voltage (max)

253 V

output frequency

50/60 Hz

Output frequency adjustment

1 Hz

Output voltage regulation

10%

Automatic Voltage Regulator (AVR)

Yes

Number of input phases

1

Number of output phases

1

Efficiency

97%

Output power factor

0.6

Acoustic emission

40 dB

Surge protection

Yes

Power protection features

Overcharge, Overdischarge, Overload, Short Circuit

Sound alarms

Yes

Potential-free output

No

Automatic shutdown

No

Power supply type

B.C

AC Output Type

C13 Coupler

Power outlet

C14 Coupler

Number of AC outlets

4 AC outlet(s)

Number of F-type outputs

2

USB port

Yes

Number of USB 2.0 ports

2

USB port type

USB Type-A/USB Type-B

Serial interface

Yes

Battery technology

Lead acid (VRLA)

Battery capacity

7 Ah

Number of batteries

2

Form factor

Mini Tower

Product color

Black, White

LED indicators

Yes

Operating temperature range

0 - 40 °C

Operating humidity range

0 - 95%

Certificates of conformity

THERE IS

Certification

EN 62040-1, EN 62040-2

Length

148 mm

Depth

380 mm

Height

173 mm

Weight

9 kg

Packaging width

148 mm

Packaging depth

9.73 mm

Packaging height

173 mm

Packaging weight

9.77 kg

Quantity per pallet

40 pcs

Net pallet height

121 cm

Net pallet depth

100 cm

Net pallet width

120 cm

Net weight of the pallet

411.6 kg

Harmonized System Code (HS)

85078000

Main box width

243 mm

Length of the main carton

465 mm

Main box height

265 mm

Weight of the master carton

10.3 kg

Quantity per master carton

1 pc

Sustainability Compliance

Yes
