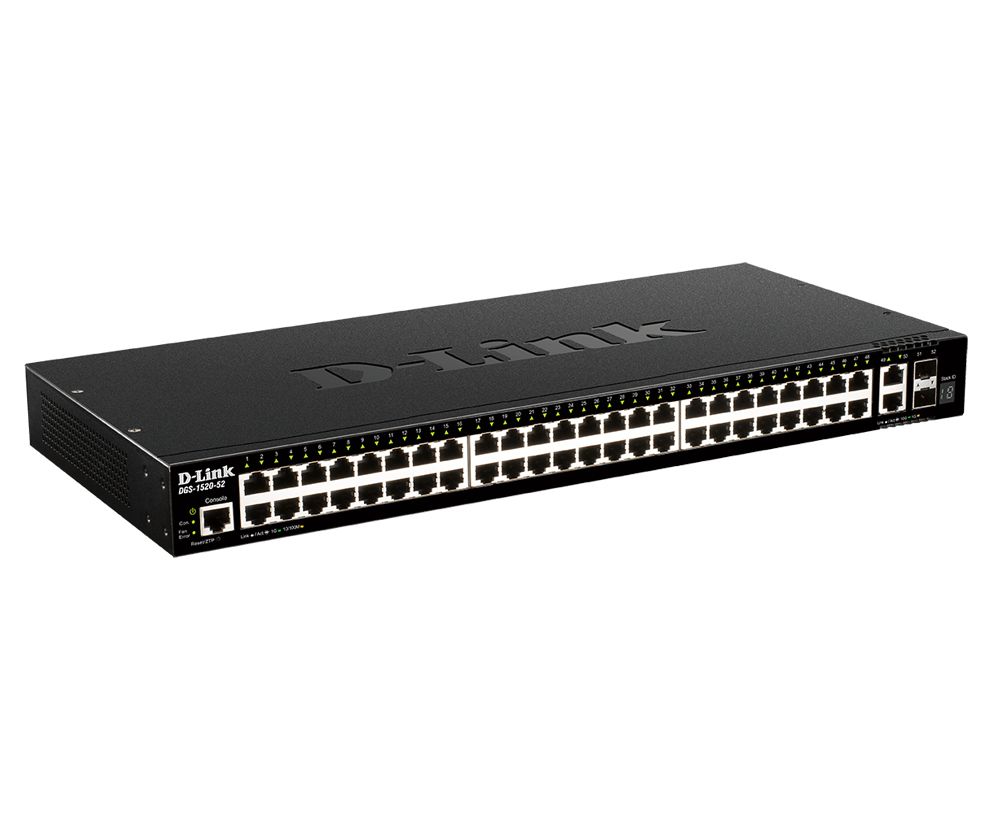

D-Link DGS-1520-52/E 10G Ethernet (100/1000/10000) 1U L3 Managed Network Switch Black

D-Link DGS-1520-52/E. Switch type: Managed, Switch level: L3. RJ-45 port type: 10G Ethernet (100/1000/10000), RJ-45 port quantity: 50. MAC address table size: 16384 entries, Switching capacity: 176 Gbit/s. Rack mount, Form factor: 1U

Switch type

Managed

Switch level

L3

Web-based management

Yes

Number of RJ-45 ports

50

RJ-45 port type

10G Ethernet (100/1000/10000)

Number of Gigabit Ethernet ports (copper)

48

Number of 10G Ethernet ports (copper)

2

SFP+ module slot quantity

2

Fibre Channel Doors

2

Fiber optic connector

SFP+

10G support

Yes

Flow control support

Yes

Link grouping

Yes

Auto MDI/MDI-X

Yes

Opening protocol tree

Yes

Head-of-line (HOL) block

Yes

VLAN support

Yes

MAC table dimensions

16384 entries

Switching capacity

176 Gbit/s

forwarding rate

130.95 Mpps

Store-and-forward

Yes

Static routing

Yes

Jumbo Frames Support

Yes

Jumbo Frame

12288

IGMP snooping function

Yes

Loop back protection

Yes

BPDU Protection/Filter

Yes

GARP VLAN Registration Protocol (GVRP)

Yes

Routing Protocol

OSPF, RIP, RIPng, VRRP

Rack mounting

Yes

Stackable

Yes

Form factor

1U

Product color

Black

Physical stacking (units)

8

Virtual stacking (unit)

32

Acoustic emission

56.8 dB

Mean Time Between Failures (MTBF)

364888 h

Diet

B.C

Redundant power supply (RPS) support

Yes

AC input voltage

100 - 240 V

Power consumption (max)

51.2 W

Power over Ethernet (PoE) support

No

Operating temperature range

-5 - 50 °C

Temperature range

-40 - 70 °C

Operating humidity range

10 - 95%

Humidity

5 - 95%

Heat dissipation

174.6 BTU/h

Length

441 mm

Depth

207.4 mm

Height

44 mm

Weight

2.78 kg

Certificates of conformity

BSMI, CE, Federal Communications Commission (FCC)

Sustainability Compliance

Yes
