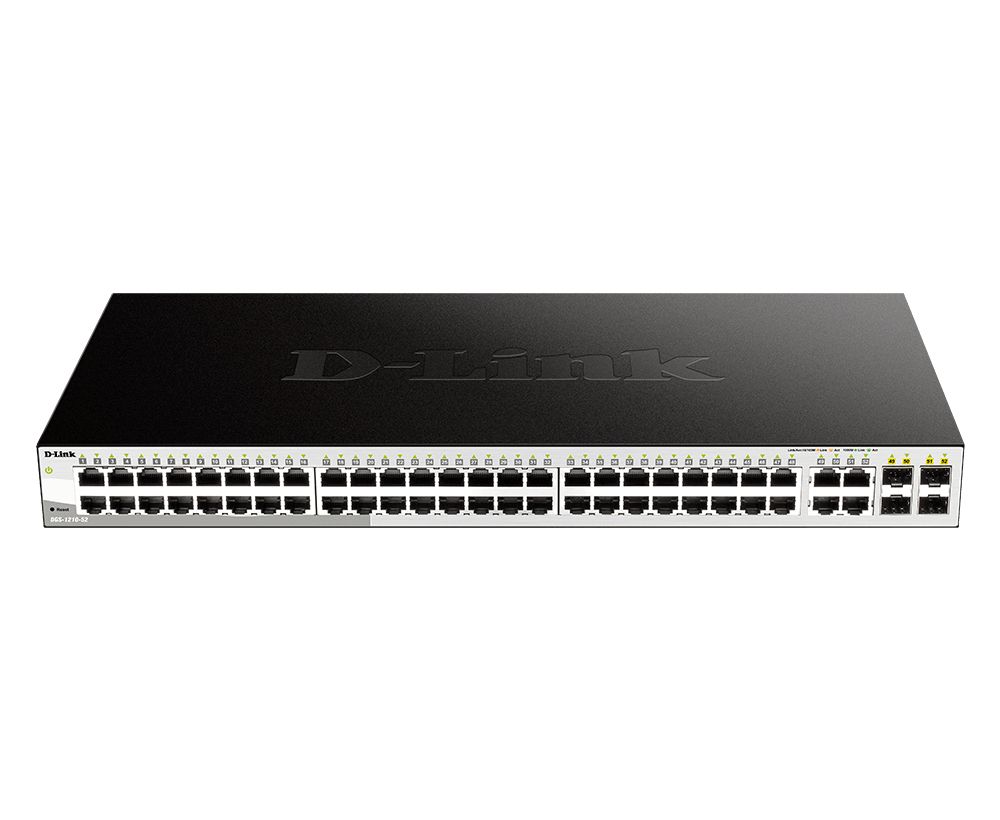

D-Link DGS-1210-52 Managed L2 Gigabit Ethernet (10/100/1000) 1U Black

D-Link DGS-1210-52. Switch type: Managed, Switch level: L2. RJ-45 port type: Gigabit Ethernet (10/100/1000), RJ-45 port quantity: 48. Full duplex. MAC address table size: 16,000 entries, Switching capacity: 104 Gbit/s. Network standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: AC input jack. Rack mount, Form factor: 1U

Switch type

Managed

Switch level

L2

Quality of Service (QoS) support

Yes

Web-based management

Yes

ARP inspection

Yes

Configuring Localization Parameters (CLI)

Yes

System Event Log

Yes

MIB Support

Y

Number of RJ-45 ports

48

RJ-45 port type

Gigabit Ethernet (10/100/1000)

Number of SFP modules installed

0

Number of SFP+ modules installed

0

Quantity of SFP Combo Ports

4

Power connector

AC input jack

Network standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Ethernet technology over copper cables

10BASE-T, 100BASE-TX, 1000BASE-T

Door mirroring

Yes

Full duplex

Yes

Flow control support

Yes

Link grouping

Yes

Broadcast Storm Control

Yes

Auto MDI/MDI-X

Yes

Opening protocol tree

Yes

Head-of-line (HOL) block

Yes

Self-negotiation

Yes

VLAN support

Yes

Number of VLAs

256

MAC table dimensions

16,000 entries

Switching capacity

104 Gbit/s

forwarding rate

77.4 Mpps

Store-and-forward

Yes

Jumbo Frames Support

Yes

Jumbo Frame

10000

Packet memory buffer

12 MB

DHCP Features

DHCP server, DHCP client

Access Control List (ACL)

Yes

IGMP snooping function

Yes

MAC address filters

Yes

Loop back protection

Yes

Multicast support

Yes

Rack mounting

Yes

Stackable

Yes

Form factor

1U

Product color

Black

LED indicators

Yes

Memory type

DDR3-SDRAM

Installed RAM

256 MB

Flash memory

32 MB

Acoustic emission

0 dB

Mean Time Between Failures (MTBF)

400667 h

Diet

B.C

Power supply included

Yes

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power consumption (max)

34.85 W

Power over Ethernet (PoE) support

No

Operating temperature range

-5 - 50 °C

Temperature range

-40 - 70 °C

Operating humidity range

0 - 95%

Humidity

0 - 95%

Heat dissipation

118.92 BTU/h

Length

440 mm

Depth

210 mm

Height

44 mm

Weight

3.46 kg
