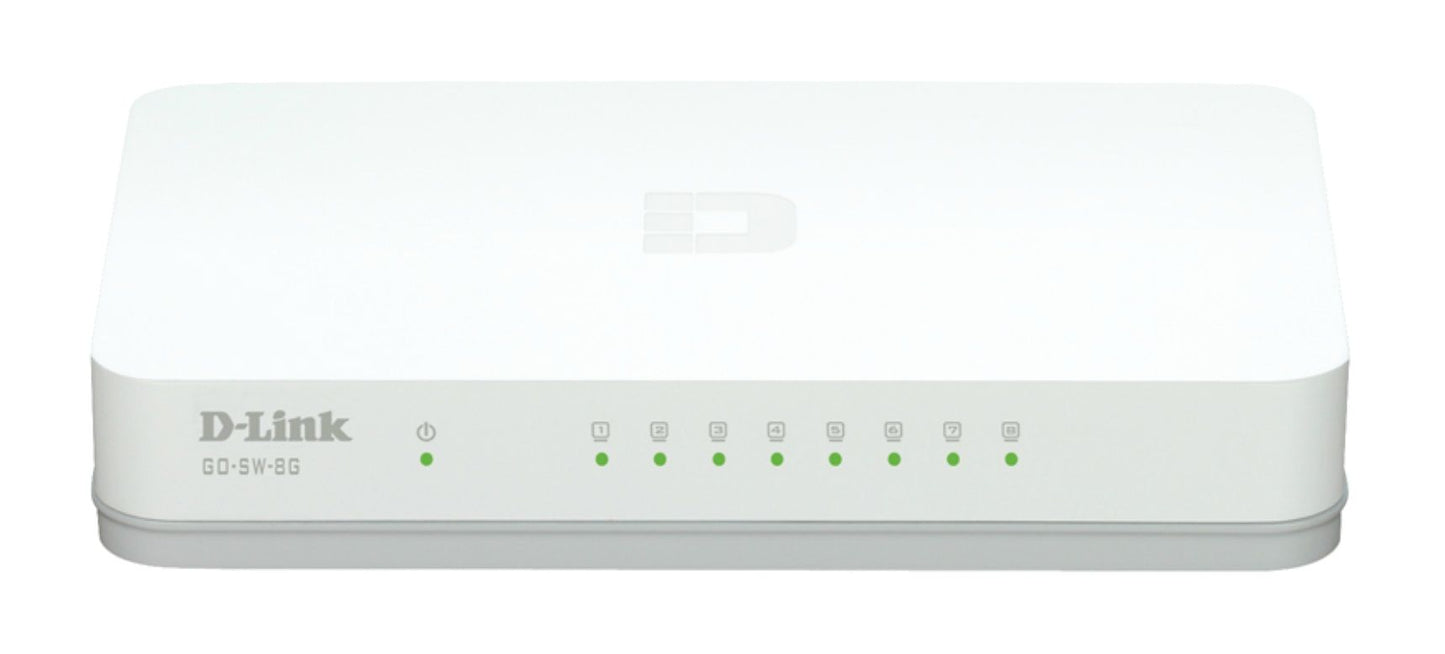

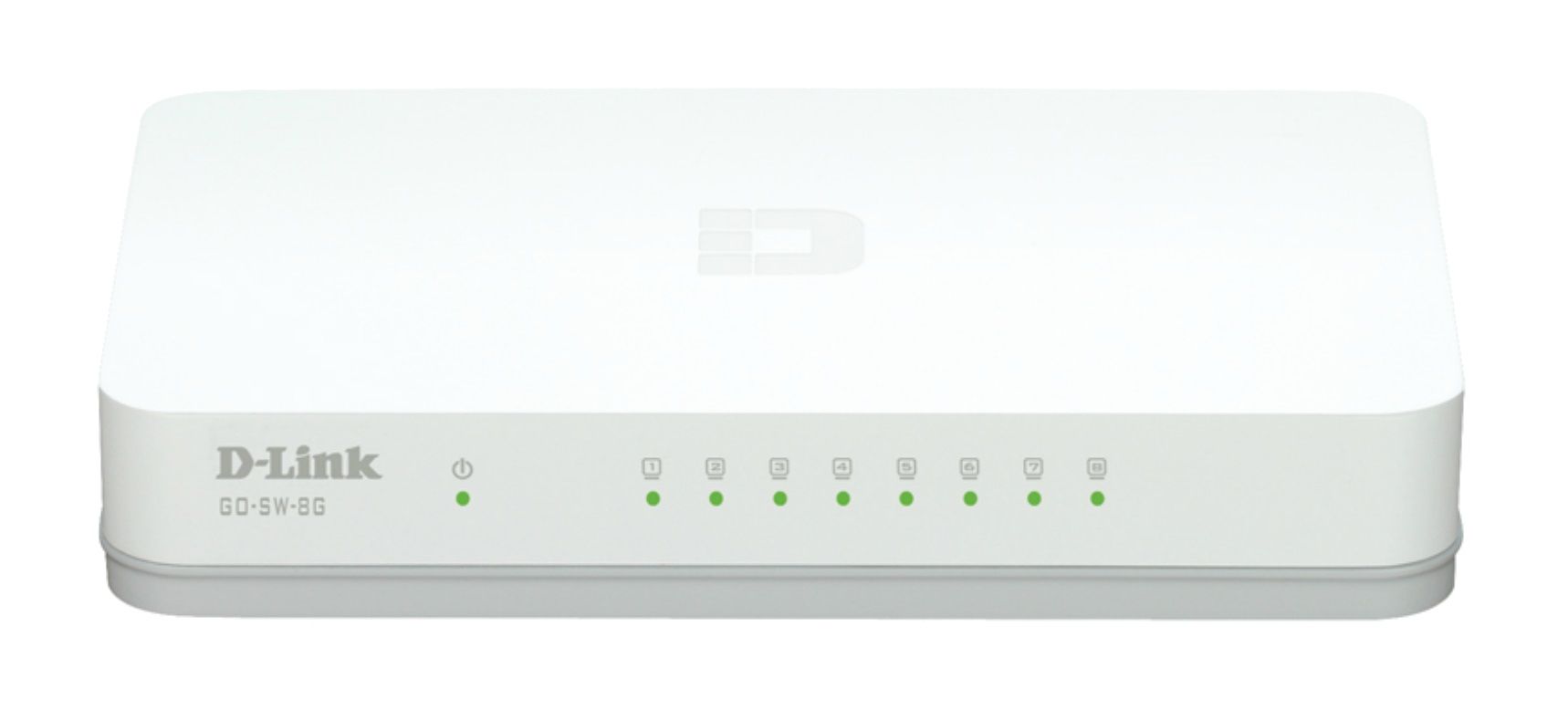

D-Link GO-SW-8G/E Unmanaged Gigabit Ethernet (10/100/1000) Network Switch White

D-Link GO-SW-8G/E. Switch type: Unmanaged. RJ-45 port type: Gigabit Ethernet (10/100/1000), RJ-45 port quantity: 8. Full duplex. MAC address table size: 8000 entries, Switching capacity: 16 Gbit/s. Network standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack

Switch type

Not managed

Number of RJ-45 ports

8

RJ-45 port type

Gigabit Ethernet (10/100/1000)

Number of SFP modules installed

0

Number of SFP+ modules installed

0

Number of Gigabit Ethernet ports (copper)

8

Power connector

DC-in jack

Network standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

10G support

No

Ethernet technology over copper cables

1000BASE-T, 100BASE-TX, 10BASE-T

Full duplex

Yes

Flow control support

Yes

Auto MDI/MDI-X

Yes

MAC address auto-learning supported

Yes

MAC table dimensions

8000 entries

Switching capacity

16 Gbit/s

Store-and-forward

Yes

Jumbo Frames Support

Yes

Jumbo Frame

9216

Packet transmission rate (1 Gbps)

1488000 pps

Packet transmission speed (100 Mbps)

148,800 pps

Packet transmission speed (10 Mbps)

14880 pps

Supported network protocols

CSMA/CD

Rack mounting

No

Product color

White

LED indicators

Yes

Buffer size

128 KB

Mean Time Between Failures (MTBF)

412433 h

Output voltage

5 V

Output current

1 A

Operating temperature range

0 - 40 °C

Temperature range

-10 - 70 °C

Operating humidity range

10 - 90%

Humidity

5 - 90%

Length

128 mm

Depth

68.5 mm

Height

25.4 mm

Weight

195 g

User Guide

Yes

AC/DC adapter

Yes

Packaging width

104 mm

Packaging depth

158 mm

Packaging height

94 mm

Packaging weight

281 g

Shipping carton height

19.3 cm

Shipping carton width

23 cm

Shipping carton length

49.8 cm

Net weight of shipping carton

1.95 kg

Quantity of shipping carton

10 pcs

Gross pallet weight (air)

348.5 kg

Number of cartons per pallet (air)

100 pcs

Quantity per pallet (air)

1000 pcs

Pallet length

110 cm

Pallet width

120 cm

Pallet height (air)

2.06 m

Gross weight of pallet (sea)

348.5 kg

Number of cartons per pallet (sea)

100 pcs

Quantity per pallet (sea)

1000 pcs

Pallet height (sea)

2.06 m

Shipping carton weight

3.3 kg

Certification

FCC cUL/UL ICES-003 CCC THERE IS Anatel C-Tick LVD VCCI

Harmonized System Code (HS)

85176990
