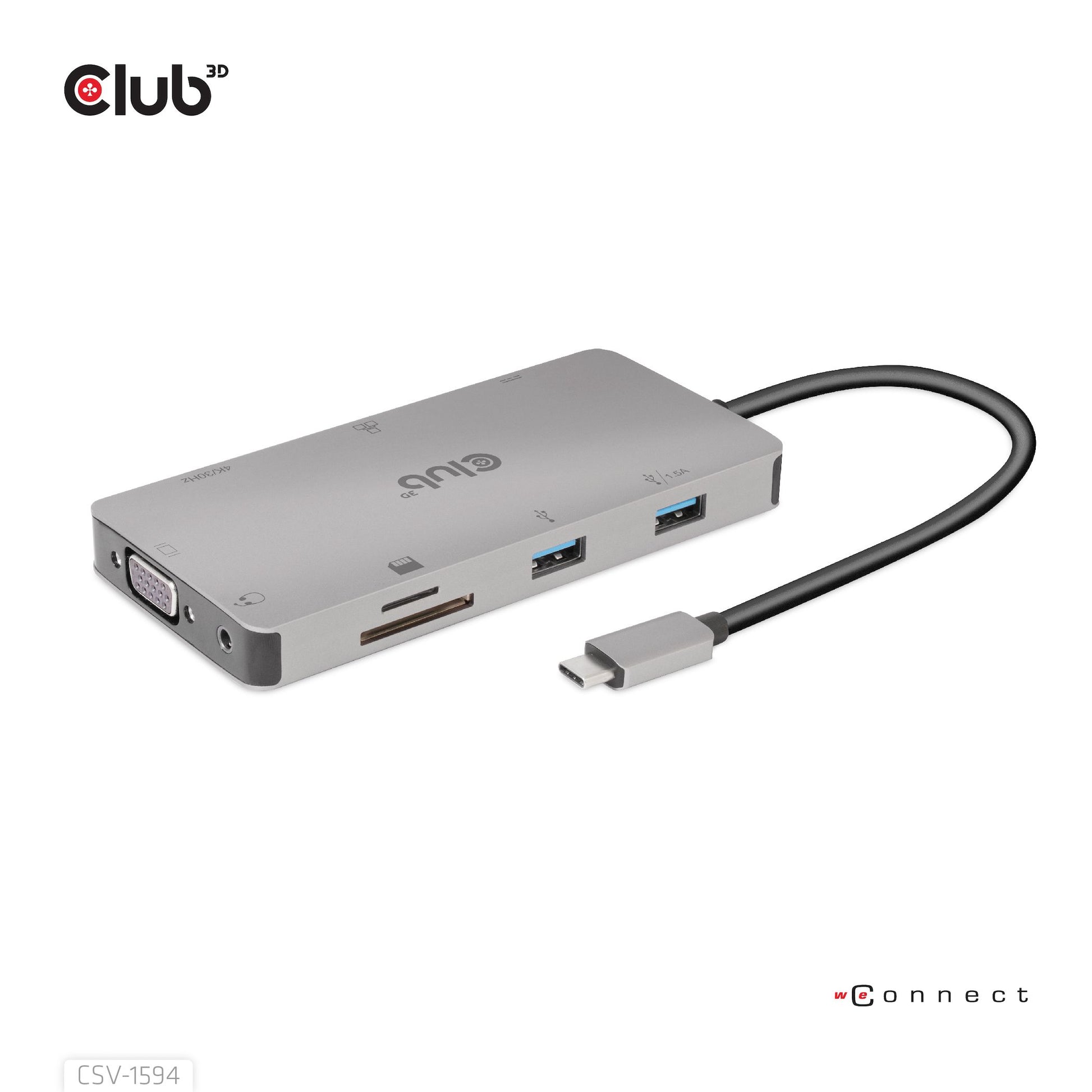

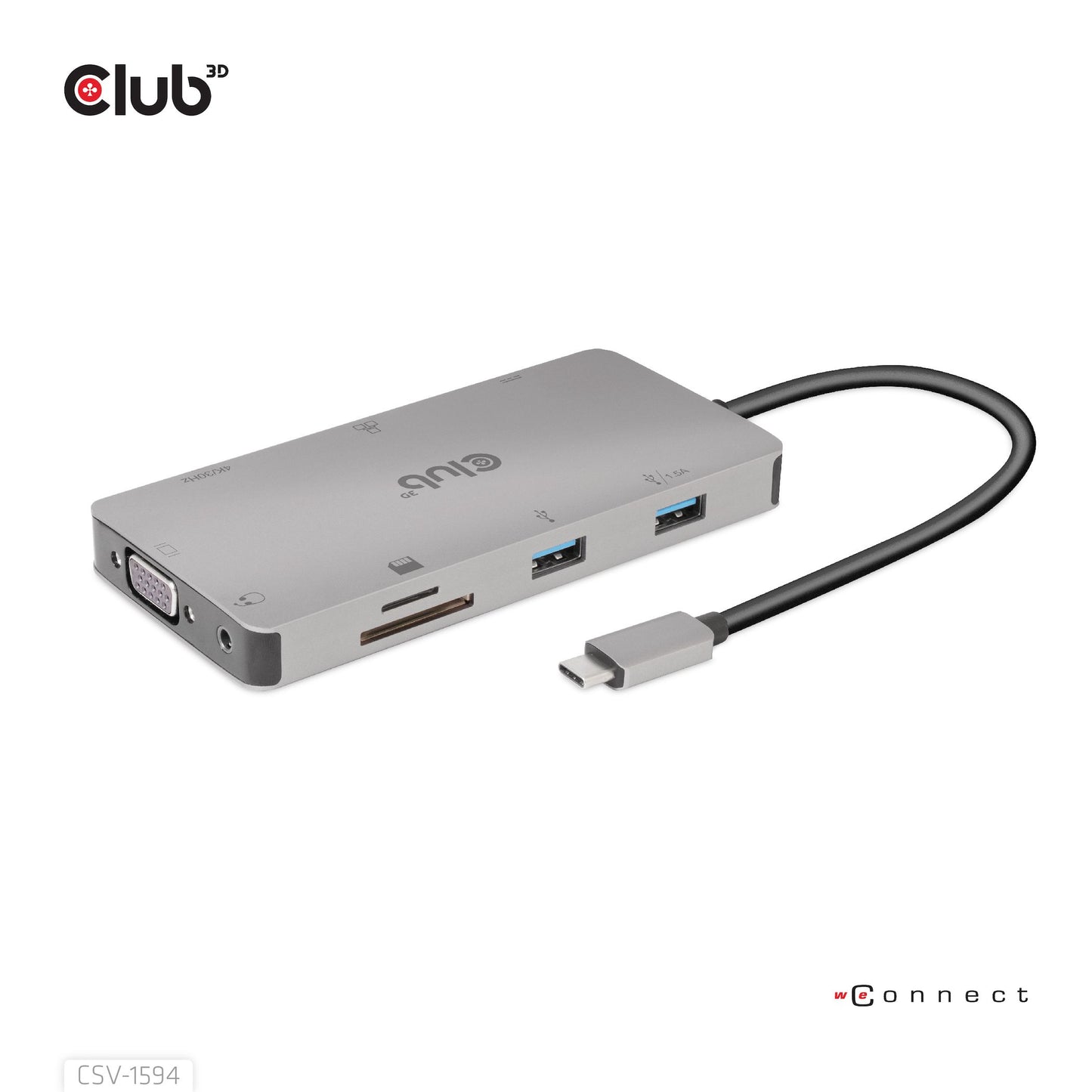

CLUB3D CSV-1594 USB 3.2 Gen 1 (3.1 Gen 1) Type-C Laptop Docking Station and Port Replicator Black, Gray

CLUB3D CSV-1594. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB power delivery up to: 100 W. Ethernet LAN transfer rates: 10,100,1000 Mbit/s. Product colour: Black, Grey, Memory card types: MicroSD (TransFlash), SD, Maximum refresh rate: 60 Hz. Output voltage: 5 V, Output current: 1.8 A, Power consumption (max): 7.5 W. Width: 125 mm, Depth: 59 mm, Height: 14 mm

Host Interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-C

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

2

Quantity of HDMI ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

1

USB power supply

Yes

USB Power Delivery Review

3.0

USB power supply up to

100 W

Quantity of VGA (D-Sub) ports

1

Microphone/headphone combo jack

Yes

HDCP

Yes

HDCP version

1.4

Ethernet LAN ports (RJ-45)

1

Ethernet LAN Transfer Speed

10,100,1000 Mbit/s

Product color

Black, Grey

Integrated card reader

Yes

Types of memory cards

MicroSD (TransFlash), SD

Maximum refresh time

60 Hz

Hub interfaces

3.5mm, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, VGA

Plug & Play

Yes

Certification

ROHS, FCC, CE EMI

Output voltage

5 V

Output current

1.8 A

Power consumption (max)

7.5 W

Supported Windows operating system

Yes

Mac operating system compatibility

Yes

Length

125 mm

Depth

59 mm

Height

14 mm

Weight

117 g

Quantity per package

1 pc

Packaging width

70 mm

Packaging depth

35 mm

Packaging height

320 mm

Packaging weight

165 g

Quick Guide

Yes

Cable length

0.15 m
