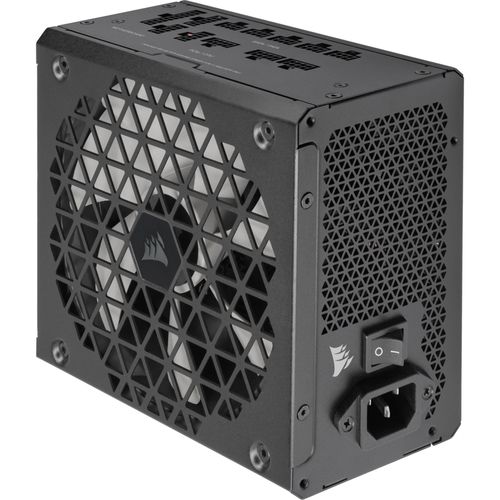

CORSAIR RMX SHIFT SERIES POWER SUPPLY, RM850X, 850 WATT, 80 PLUS GOLD CERTIFIED, FULLY MODULAR POWER
CORSAIR RMX SHIFT SERIES POWER SUPPLY, RM850X, 850 WATT, 80 PLUS GOLD CERTIFIED, FULLY MODULAR POWER
Couldn't load pickup availability
Corsair introduces its revolutionary RMx SHIFT Series of ATX 3.0-certified power supplies, offering PC enthusiasts a completely new way to build. Available in power ratings from 750W to 1200W, these fully modular 80 PLUS Gold-certified power supplies feature side-mounted DC connectors for easy cable access and neater, more manageable cables.
The repositioned side panel of the RMx SHIFT line of power supplies gives you a clear view of all modular micro-fit connections and makes them easier to access, making cable and connection management a breeze. The new panel not only makes it easier to connect and disconnect cables, but also eliminates the need to bend or twist cables to reach the connectors, thus reducing stress and keeping your system tidy.
Every model in the RMx SHIFT power supply line is ATX 3.0 certified and PCIe 5.0 compliant, to efficiently power the latest and greatest systems, helping improve performance and overall reliability, while delivering the power you need to keep your system running at peak performance.
Thanks to the included professional-quality PCIe 5.0 12VHPWR CPU cable, RMx SHIFT Series power supplies are compatible for use with the latest generation graphics cards, such as the NVIDIA GeForce RTX 40 Series.
Additionally, RMx SHIFT Series power supplies boast all the other features that professional PC builders have come to love with the RMx line. So, connect only the cables you need for your system with fully modular CORSAIR Type 5 Gen 1 Micro-Fit cables. Additionally, the 140mm fluid dynamic bearing fan uses a specially tuned fan curve for reliable, low-noise performance, and supports Zero RPM mode for virtually silent operation at low loads.
With 80 PLUS Gold and Cybenetics Gold certifications, RMx SHIFT Series power supplies deliver consistent power and up to 90% efficiency. 100% Japanese-made electrolytic capacitors rated at 105ºC ensure consistent power and long-lasting performance.
Technical Data:
- Dimensions: 150 x 86 x 160 mm (WxHxD)
- Connections: Modular
- Ventilation: 140 mm fan (semi-passive)
- Efficiency: 90% / 92% / 89% at 20% / 50% / 100% load (230V), 80 PLUS Gold certified
- Form Factor: ATX
- Power: 850 Watts
- Amperages:
+3.3V: 20A
+5V: 20 A
+12V: 70 (850 W)
-12V: 0.3A (3.6W)
+5Vsb: 3 A - Connectors:
1x 20+4 Pin (610 mm)
2x 4+4 Pin (EPS/ATX12V) (650 mm)
1x 12VHPWR (12+4) pins (650 mm)
2x 6+2 Pin-PCIe (750 mm)
2x 6+2 Pin-PCIe (650 mm)
12x SATA (700~800mm)
8x 4 Pin Molex (750mm) - MTBF: 100,000 hours
