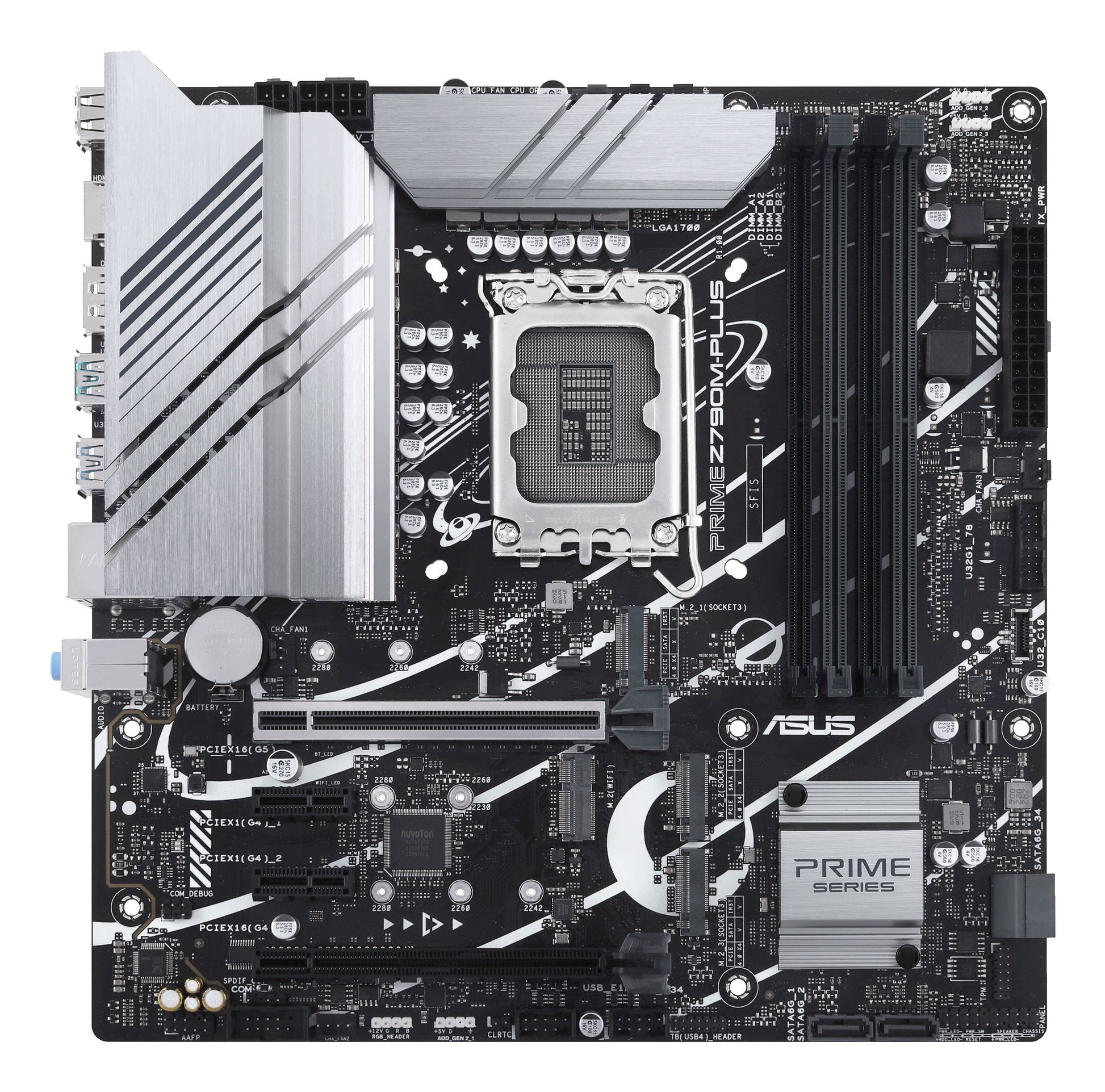

ASUS PRIME Z790M-PLUS Intel Z790 LGA 1700 micro ATX

ASUS PRIME Z790M-PLUS. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum supported RAM: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector: USB Type-A. Ethernet interface type: Gigabit Ethernet

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible Processors

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Supported memory types

DDR5 SDRAM

Number of memory slots

4

Maximum RAM supported

128 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

Non-ECC

Supported memory speeds

4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz

Without buffer

Yes

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA

Supported storage drive types

HDD & SSD

Number of hard drives supported

3

number of supported storage devices

4

RAID support

Yes

RAID Levels

0, 1, 5, 10

Integrated graphics card

No

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

S/PDIF output connector

Yes

Audio connector

Yes

ATX Connector (24-PIN)

Yes

Fan power supply

Yes

CPU fan connector

Yes

Number of chassis fan connectors

3

Peripheral Connectors (Molex) (4-pin)

1

EPS Power Connector (8-Pin)

Yes

Number of COM connectors

1

Serial Port Headers

1

Thunderbolt ports

1

Connector with 12V power

Yes

RGB LED connector

Yes

Number of USB 2.0 ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

0

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

0

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

HDMI version

2.0

DisplayPort Quantity

1

DisplayPort version

1.4

Headphone outputs

1

Line input

Yes

Microphone input jack

Yes

Quantity of COM ports

1

USB connector

USB Type A

Wi-Fi

No

Ethernet LAN connection

Yes

Ethernet Interface Type

Gigabit Ethernet

Component for

PC

Motherboard Form Factor

micro ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel Z790

Audio system

7.1 channels

Product color

Aluminum, Black

Power supply type

ATX

Supported Windows operating system

Windows 10, Windows 11

PCI Express x1 slot (Gen 4.x)

2

PCI Express x16 slot (Gen 4.x)

1

PCI Express x16 slot (Gen 5.x)

1

Number of M.2 slots (M)

3

BIOS Type

UEFI AMI

BIOS Memory Size

192 Mbit

Length

244 mm

Depth

244 mm

Cables included

SATA

Software provided

ASUS Exclusive Software Armory Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

quantity of mSATA ports

0
