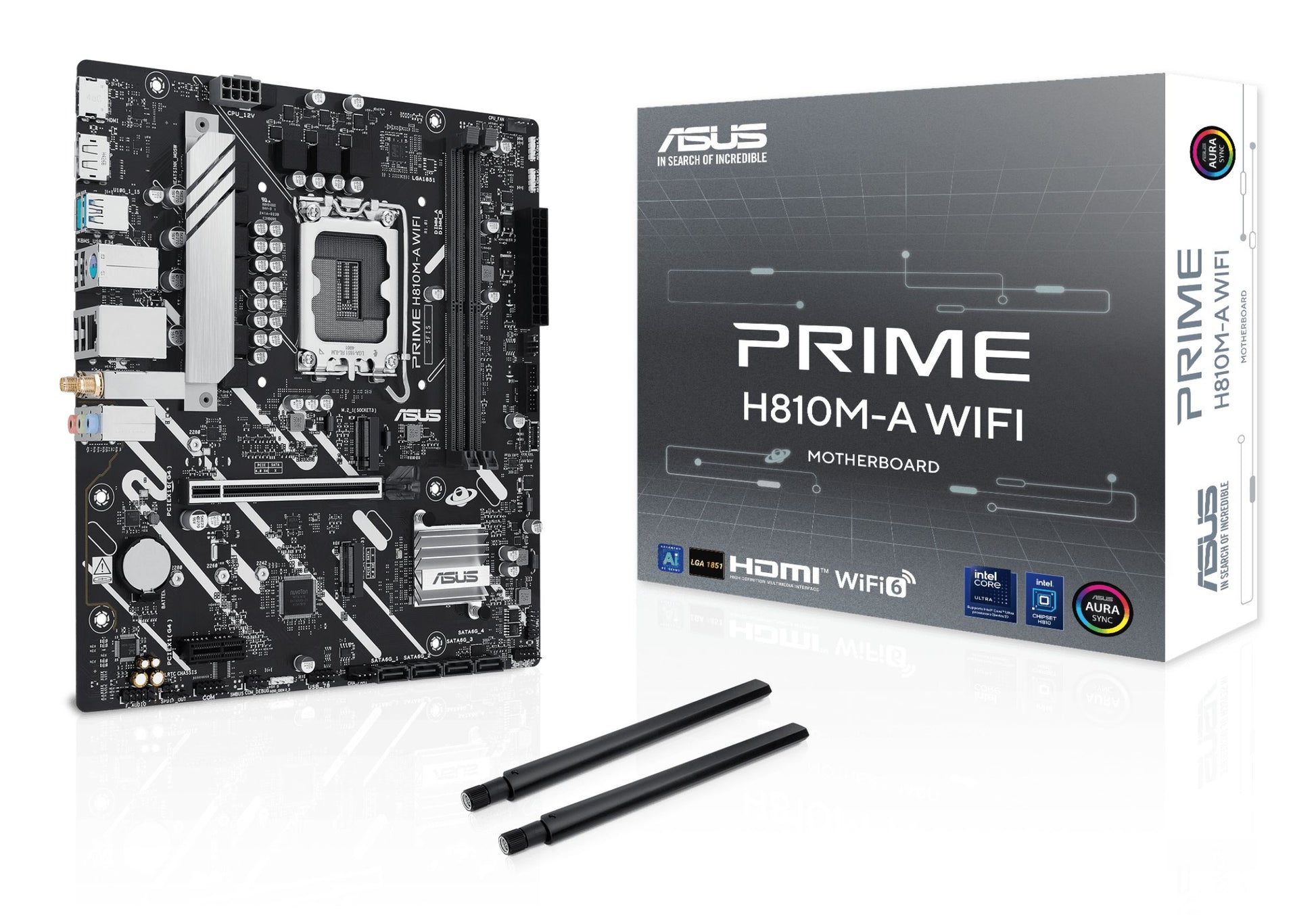

ASUS PRIME H810M-A WIFI Intel H810 LGA 1851 (Socket V1) micro ATX

ASUS PRIME H810M-A WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processors: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum supported RAM: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standard: Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Compatible Processors

Intel Core Ultra (Series 2)

Socket Supported Processors

LGA 1851

Supported memory types

DDR5 SDRAM

Number of memory slots

2

Maximum RAM supported

128 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

Non-ECC

Without buffer

Yes

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

Number of hard drives supported

4

number of supported storage devices

6

RAID support

Yes

RAID Levels

0, 1, 5, 10

Parallel processing technology

Not supported

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

S/PDIF output connector

Yes

Front panel audio connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Number of CPU fan connectors

1

Number of chassis fan connectors

2

Number of COM connectors

1

TPM connector

Yes

Connector with 12V power

Yes

Number of USB 2.0 ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

0

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

0

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

PS/2 Ports Quantity

1

DisplayPort Quantity

1

WiFi-AP antenna plug

1

Wi-Fi

Yes

Ethernet LAN connection

Yes

Ethernet Interface Type

Gigabit Ethernet

Standard Wi-Fi

Wi-Fi 6 (802.11ax)

Wi-Fi Standard

Wi-Fi 6 (802.11ax)

Bluetooth

Yes

Bluetooth version

5.3

Component for

PC

Motherboard Form Factor

micro ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel H810

Audio system

7.1 channels

Supported Windows operating system

Windows 10 x64, Windows 11

PCI Express x1 slot (Gen 4.x)

1

PCI Express x16 slot (Gen 4.x)

1

Number of M.2 slots (M)

2

Maximum size of the first M.2 Key connector

2280

Maximum PCI Express generation of the first M.2

4.0

Maximum size of the second Key M.2 connector

2280

Maximum PCI Express Generation 2 M.2

4.0

BIOS Type

UEFI AMI

BIOS Memory Size

256 Mbit

Length

244 mm

Depth

222 mm

Cables included

SATA

Screws included

Yes
