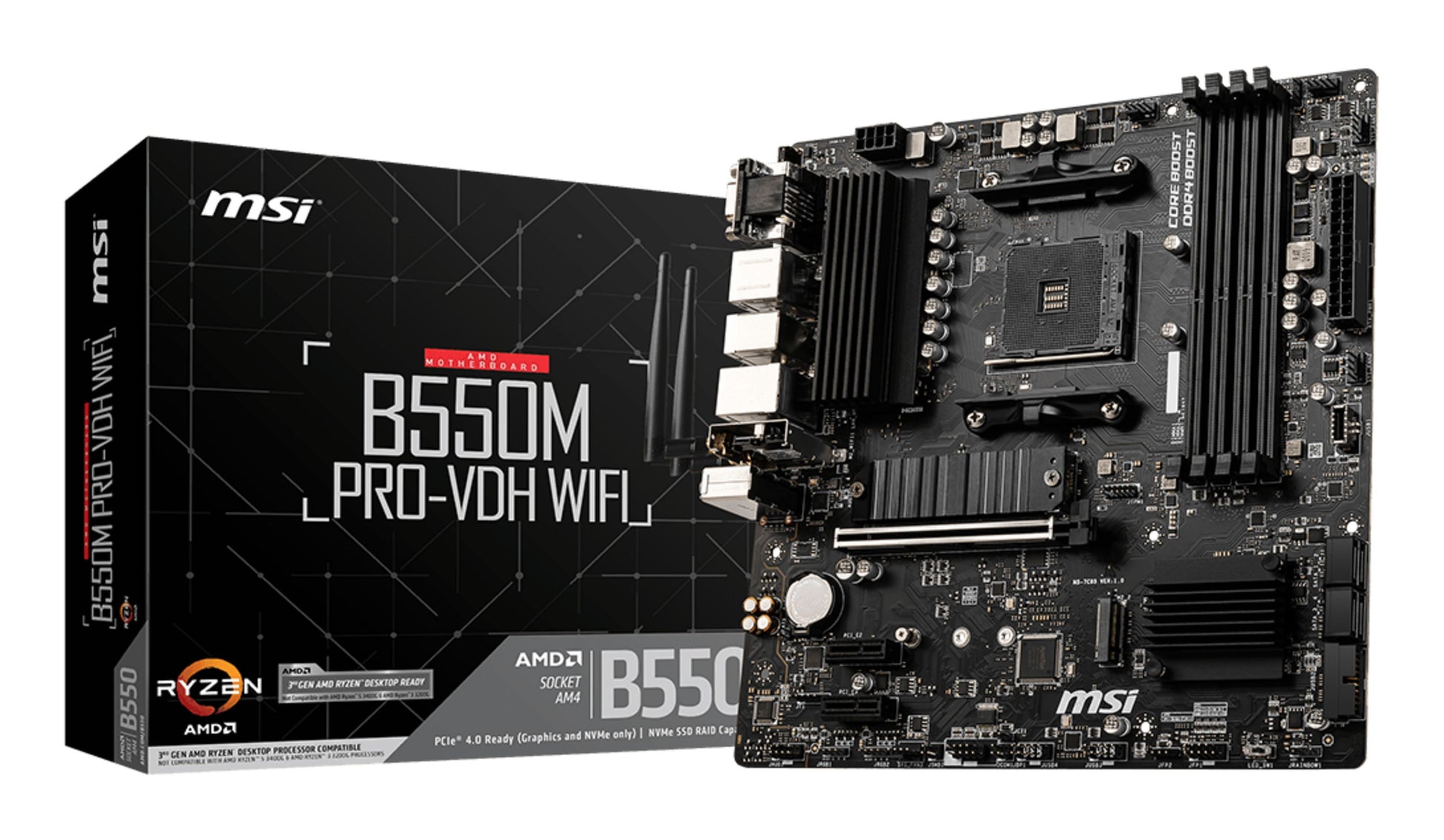

MSI B550M PRO-VDH WIFI motherboard AMD B550 Socket AM4 micro ATX

MSI B550M PRO-VDH WIFI. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum supported RAM: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum graphics adapter memory: 16000 MB, Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111HN, Standard Wi-Fi standard: Wi-Fi 5 (802.11ac)

Processor manufacturer

AMD

Processor socket

Socket AM4

Compatible Processors

AMD Ryzen 3000 Series

Maximum number of SMP processors

1

Socket Supported Processors

Socket AM4

Supported memory types

DDR4-SDRAM

Number of memory slots

4

Maximum RAM supported

128 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

ECC & Non-ECC

Supported memory speeds

1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400 MHz

Without buffer

Yes

Supported storage drive interfaces

SATA III

Supported storage drive types

HDD & SSD

RAID support

Yes

RAID Levels

0, 1, 10

Parallel processing technology

Not supported

Maximum graphics adapter memory

16000 MB

Maximum resolution

4096 x 2160 pixels

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

Total number of SATA connectors

0

Number of Parallel ATA connectors

0

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

3

Serial Port Headers

1

Connector with 12V power

Yes

RGB LED connector

Yes

Number of USB 2.0 ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

0

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

1

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

Quantity of eSATA ports

0

PS/2 Ports Quantity

1

Number of IEEE 1394/Firewire ports

0

DisplayPort Quantity

1

WiFi-AP antenna plug

2

Wi-Fi

Yes

Ethernet LAN connection

Yes

Ethernet Interface Type

Gigabit Ethernet

LAN Controller

Realtek 8111HN

Standard Wi-Fi

Wi-Fi 5 (802.11ac)

Wi-Fi Standard

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Bluetooth

Yes

Bluetooth version

4.2

Component for

PC

Motherboard Form Factor

micro ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD B550

Audio system

7.1 channels

Audio chip

Realtek ALC892

Product color

Black

Number of mounting holes

8

PCI Express x1 slot (Gen 3.x)

2

PCI Express x16 slot (Gen 4.x)

1

Number of M.2 slots (M)

2

CMOS clear jumper

Yes

Harmonized System Code (HS)

84733020

Length

244 mm

Depth

244 mm

Height

65 mm

Cables included

SATA

Drivers included

Yes

Weight

1 kg
