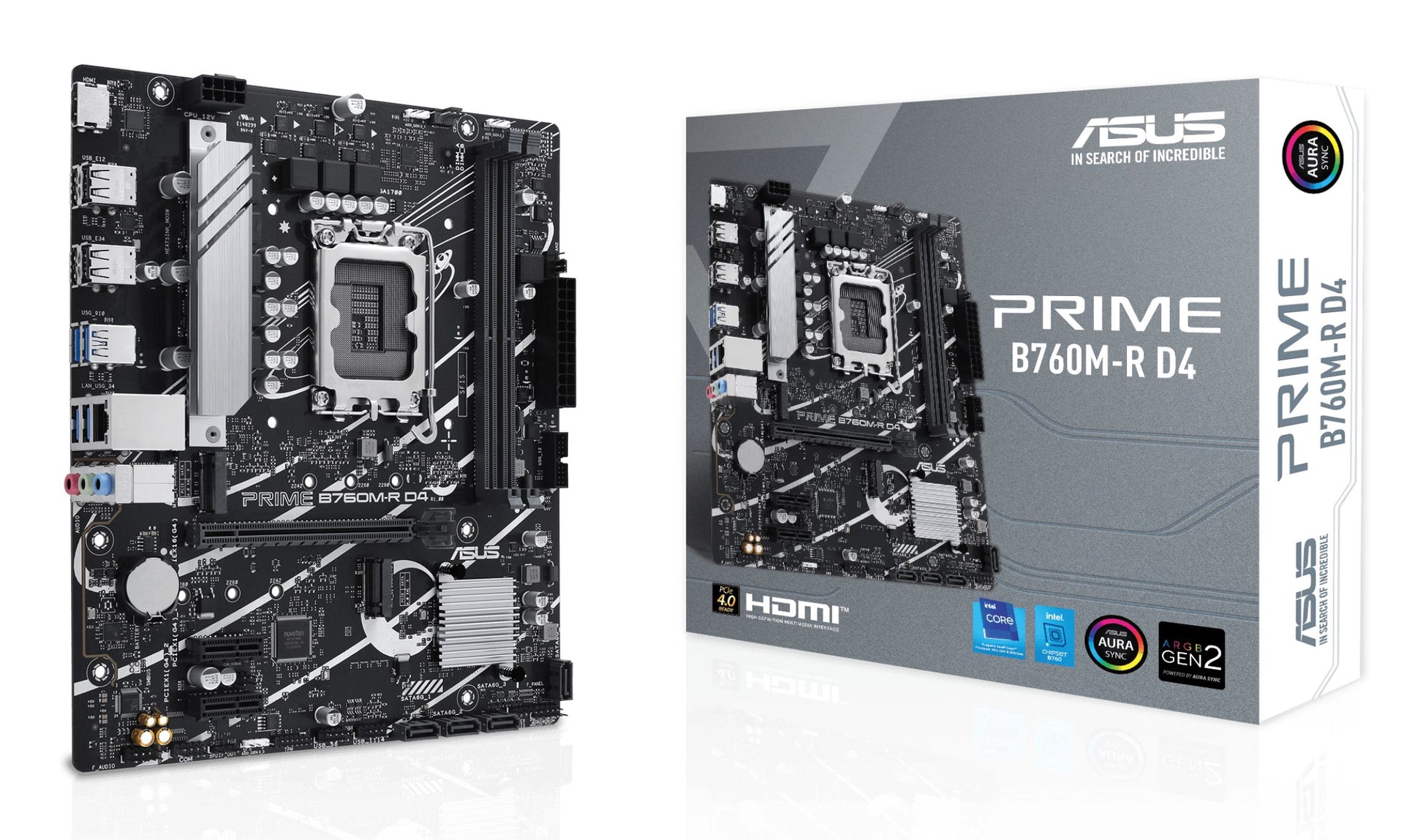

ASUS PRIME B760M-R D4 Intel B760 LGA 1700 micro ATX

ASUS PRIME B760M-R D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processors: 14th Gen Intel Core i9, 12th Gen Intel Core i3, 13th Gen Intel Core i3, 12th Gen Intel Core i5,.... Supported memory types: DDR4-SDRAM, Maximum supported RAM: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible Processors

Intel Core i9 14th Gen, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen

Socket Supported Processors

LGA 1700

Supported memory types

DDR4-SDRAM

Number of memory slots

2

Maximum RAM supported

64 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

Non-ECC

Supported memory speeds

2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066,5333 MHz

Supported memory clock speed (max)

5333 MHz

Without buffer

Yes

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

Number of hard drives supported

4

number of supported storage devices

6

RAID support

Yes

RAID Levels

0, 1, 5, 10

Parallel processing technology

Not supported

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS Power Connector (8-Pin)

Yes

Number of COM connectors

1

TPM connector

Yes

Connector with 12V power

Yes

RGB LED connector

Yes

Number of USB 2.0 ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

0

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

0

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

HDMI version

2.1

Headphone outputs

1

Line input

Yes

Wi-Fi

No

Ethernet LAN connection

Yes

Ethernet Interface Type

2.5 Gigabit Ethernet

Component for

PC

Motherboard Form Factor

micro ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel B760

Audio system

7.1 channels

Product color

Black

Cooling type

Passive

Power supply type

ATX

Supported Windows operating system

Windows 10, Windows 11

PCI Express x1 slot (Gen 4.x)

2

PCI Express x16 slot (Gen 4.x)

1

Number of M.2 slots (M)

2

BIOS Type

UEFI AMI

BIOS Memory Size

128 Mbit

Packaging width

270 mm

Packaging depth

263 mm

Packaging height

51.5 mm

Packaging weight

903 g

Length

244 mm

Depth

211 mm

Cables included

SATA
