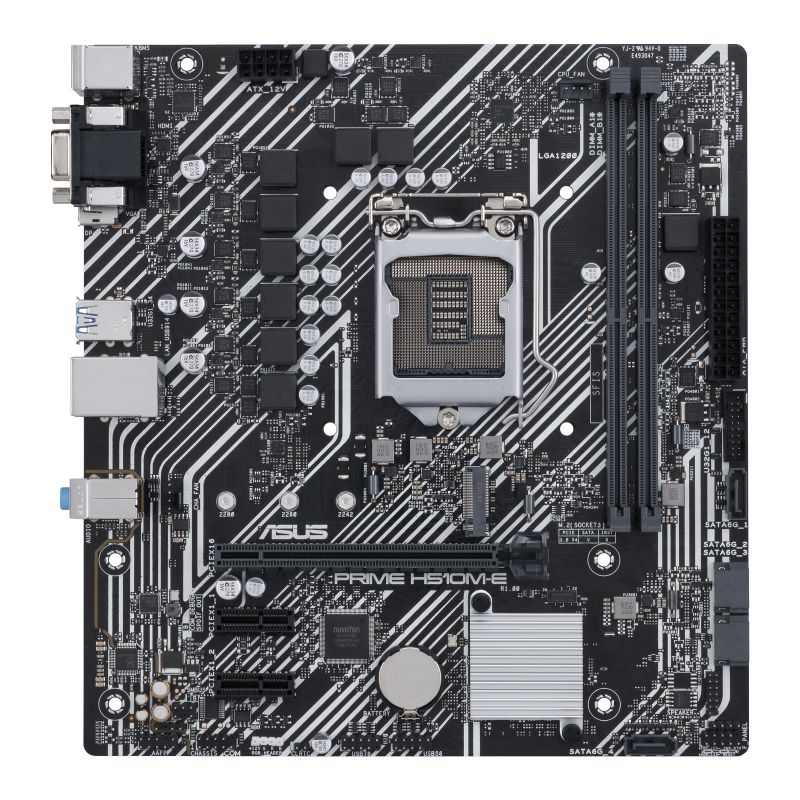

ASUS PRIME H510M-E Intel H510 LGA 1200 (Socket H5) micro ATX

ASUS PRIME H510M-E. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum supported RAM: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2304 pixels. USB connector: USB Type-A

Processor manufacturer

Intel

Processor socket

LGA 1200 (Socket H5)

Compatible Processors

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® G

Socket Supported Processors

LGA 1200 (Socket H5)

Supported memory types

DDR4-SDRAM

Number of memory slots

2

Maximum RAM supported

64 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

Non-ECC

Supported memory speeds

2133,2400,2666,2800,2933,3200 MHz

Without buffer

Yes

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

number of supported storage devices

5

Parallel processing technology

Not supported

Maximum resolution

4096 x 2304 pixels

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of Parallel ATA connectors

0

S/PDIF output connector

Yes

Front panel audio connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

1

EPS Power Connector (8-Pin)

Yes

Number of COM connectors

1

TPM connector

Yes

Connector with 12V power

Yes

RGB LED connector

Yes

Number of USB 2.0 ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

0

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

1

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

Quantity of eSATA ports

0

PS/2 Ports Quantity

2

Number of IEEE 1394/Firewire ports

0

HDMI version

2.0

DisplayPort Quantity

1

DisplayPort version

1.4

Headphone outputs

3

Microphone input jack

Yes

USB connector

USB Type A

Wi-Fi

No

Ethernet LAN connection

Yes

Ethernet Interface Type

Gigabit Ethernet

LAN Controller

Intel® I219-V

Wake-on-LAN ready

Yes

Component for

PC

Motherboard Form Factor

micro ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel H510

Audio system

7.1 channels

Audio chip

Realtek ALC887 / Realtek ALC897

Supported Windows operating system

Windows 10 x64

PCI Express x1 slot (Gen 3.x)

2

PCI Express x16 slot (Gen 4.x)

1

Number of M.2 slots (M)

1

BIOS Type

UEFI AMI

BIOS Memory Size

128 Mbit

CMOS clear jumper

Yes

Harmonized System Code (HS)

84733020

Length

226 mm

Depth

211 mm

Cables included

SATA

Drivers included

Yes
