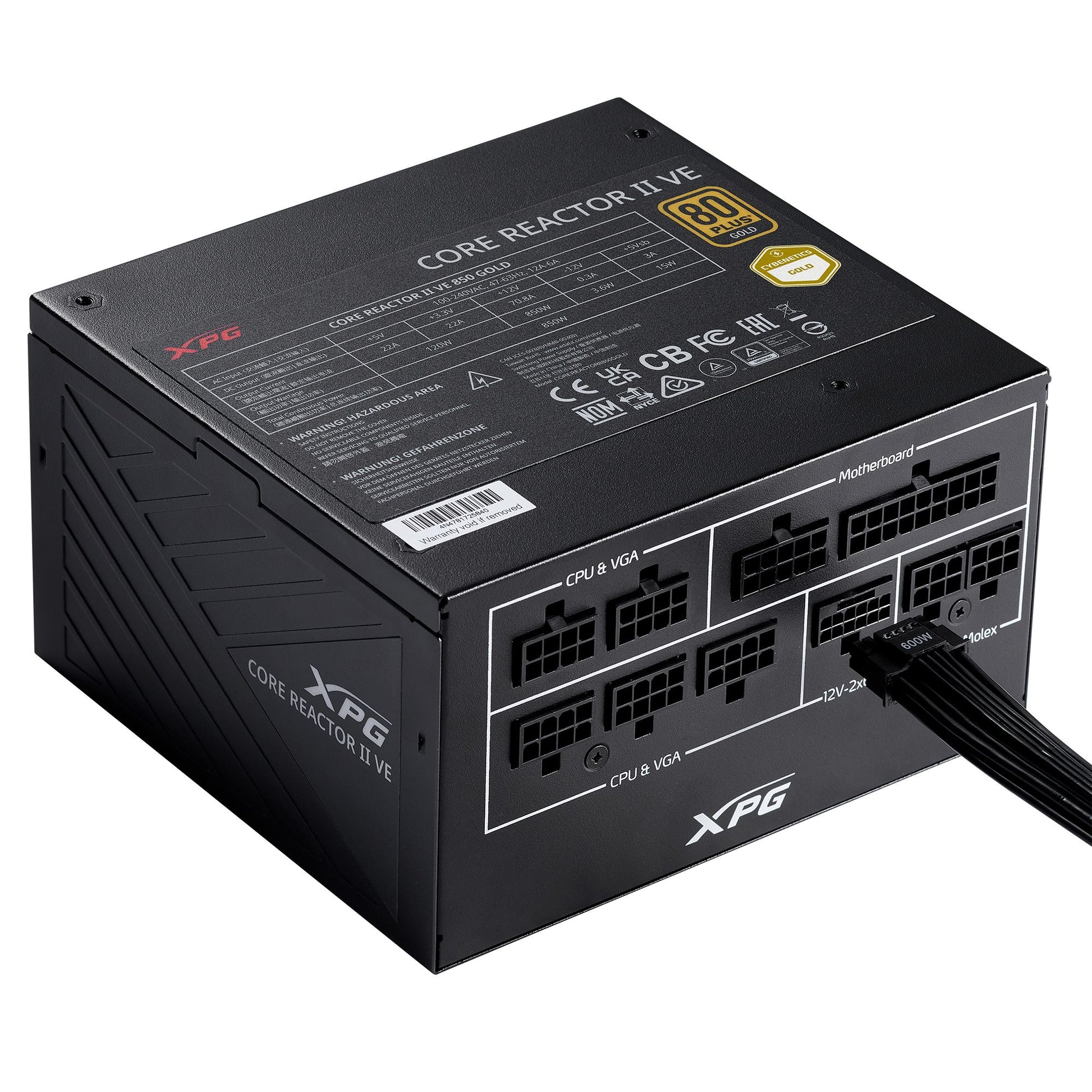

XPG COREREACTOR II VE 850W computer power supply 24-pin ATX ATX Black

XPG COREREACTOR II VE 850W. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard connector: 24-pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150.450 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: CB / CE / FCC / TUV / cTUVus / BSMI / CCC NOM / FCC IC / UKCA / TUV / TUV S-Mark / cTUVus

Total power

850 W

AC input voltage

100 - 240 V

AC input frequency

47 - 63 Hz

Input current

12 A

Power factor

0.99

Maximum output current (+3.3V)

20 A

Maximum output current (+12V)

70.8 A

Maximum output current (+5V)

20 A

Maximum output current (-12V)

0.3 A

Maximum output current (+5Vsb)

3 A

Power protection features

Overcurrent, Overpower, Overload, Overheat, Short circuit, Surge & inrush protection (SIP), Under load

Motherboard connector

24-pin ATX

Peripheral Connectors (Molex) (4-pin)

2

Motherboard power cable length

65 cm

Number of SATA connectors

6

SATA power cable length

150,450 mm

EPS Power Connector (8-Pin)

Yes

EPS power connector (4+4 pins)

Yes

PCI Express connectors (6+2 pins)

3

PCI Express Power Connector Cable Length (12+4 pin)

600 mm

PCI Express Power Connectors (12-pin)

1

CPU Power Connector (4+4-Pin)

Yes

CPU Power Cable Length

75 cm

ATX Connector (24-PIN)

Yes

ATX power connector (12+4 pin)

Yes

Wiring type

Totally Modular

Usage

PC

Power Supply Unit (PSU) Form Factor

ATX

80 PLUS Certification

80 PLUS Gold

ATX version

3.1

Bearing technology

FDB

Mean Time Between Failures (MTBF)

100,000 hours

Product color

Black

Cooling type

Active

Fan diameter

12 cm

Number of fans

1 fan(s)

Certification

CB / CE / FCC / TUV / cTUVus / BSMI / CCC NOM / FCC IC / UKCA / TUV / TUV S-Mark / cTUVus

Length

150 mm

Depth

140 mm

Height

86 mm

Weight

1.45 kg

Packaging weight

3.03 kg
