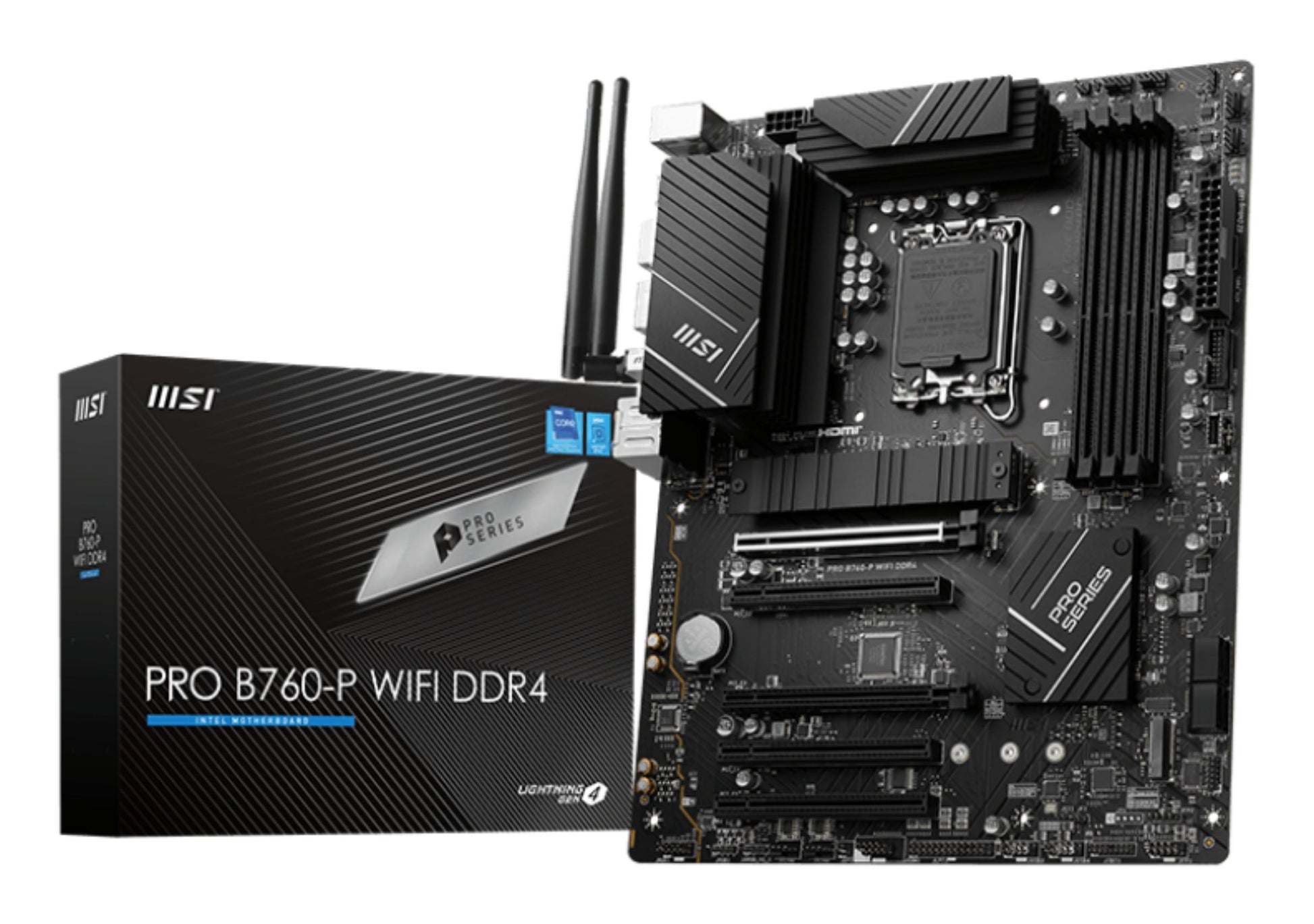

MSI PRO B760-P WIFI DDR4 LGA 1700 ATX Motherboard

MSI PRO B760-P WIFI DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processors: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR4-SDRAM, Maximum supported RAM: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible Processors

Intel® Celeron®, Intel® Pentium® Gold

Maximum number of SMP processors

1

Socket Supported Processors

LGA 1700

Supported memory types

DDR4-SDRAM

Number of memory slots

4

Maximum RAM supported

128 GB

memory slot type

DIMM

Memory channels

Dual channel

ECC compatibility

Non-ECC

Supported memory speeds

2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4200,4266,4400,4600,4800,5000,5066,5200,5333 MHz

Supported memory clock speed (max)

5333 MHz

Supported storage drive interfaces

M.2, SATA III

RAID support

Yes

RAID Levels

0, 1, 5, 10

Integrated graphics card

No

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

Front panel audio connector

Yes

Front panel connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

TPM connector

Yes

RGB LED connector

Yes

Number of USB 2.0 ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

0

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

0

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

DisplayPort Quantity

1

Wi-Fi

Yes

Ethernet LAN connection

Yes

Ethernet Interface Type

2.5 Gigabit Ethernet

Bluetooth

Yes

Component for

PC

Motherboard Form Factor

ATX

Motherboard chipset family

Intel

Audio system

7.1 channels

Audio chip

Realtek ALC897

Product color

Black

Power supply type

ATX

Supported Windows operating system

Windows 10, Windows 11

PCI Express x16 slots

5

Number of M.2 slots (M)

2

BIOS Type

UEFI AMI

BIOS Memory Size

256 Mbit

System management BIOS (SMBIOS) version

3.5

Length

243.8 mm

Depth

304.8 mm
