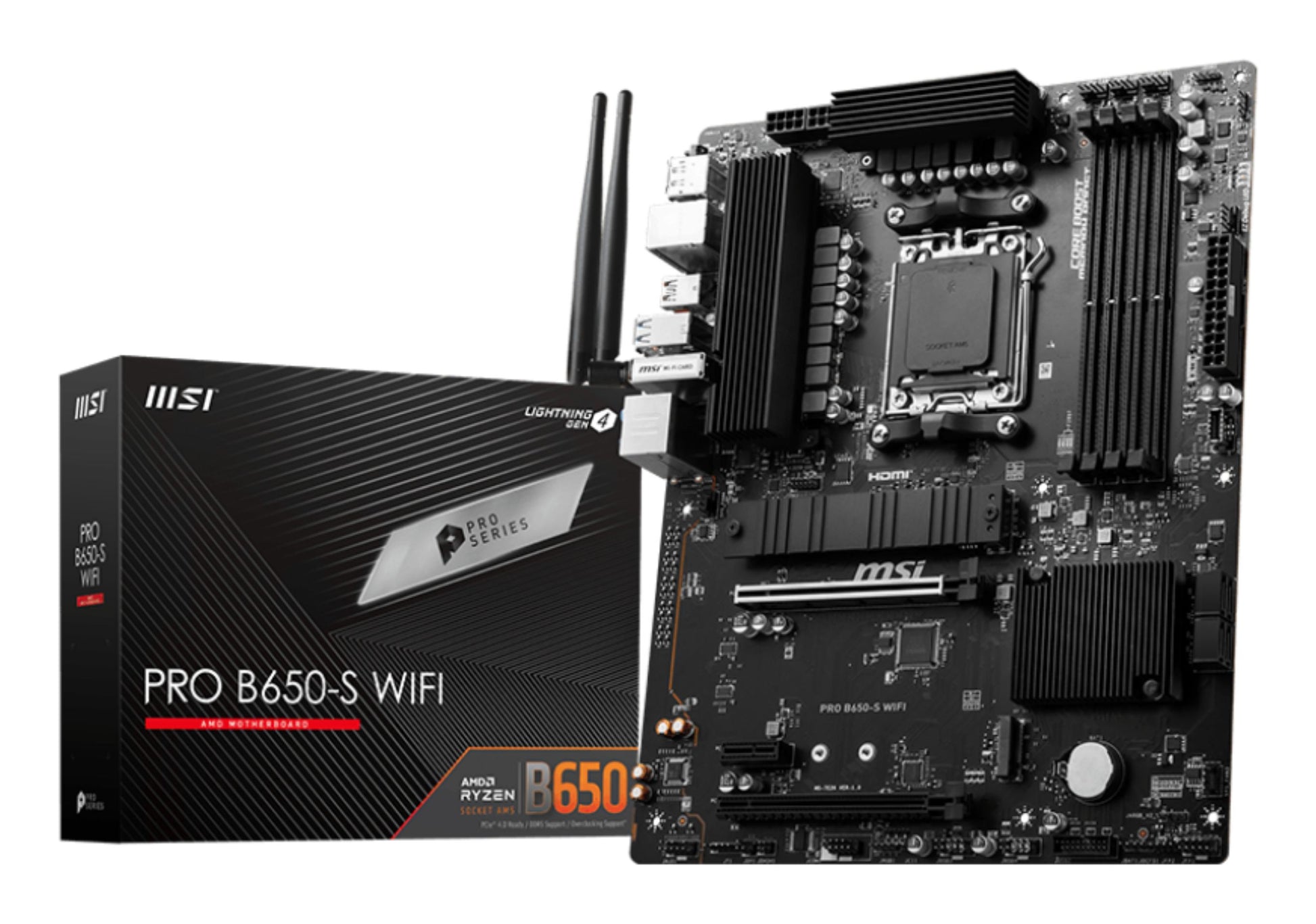

MSI PRO B650-S WIFI motherboard AMD B650 Socket AM5 ATX

The PRO series is designed for professionals in all industries. Impressive performance and high quality are the cornerstones of these products, while aiming to provide users with an incredible experience.

MSI PRO B650-S WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processors: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum supported RAM: 192 GB, ECC compatibility: Non-ECC. Supported storage interfaces: M.2, SATA, RAID levels: 0, 1. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125-BG, Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

Processor manufacturer

AMD

Processor socket

Socket AM5

Compatible Processors

AMD Ryzen 7000 Series

Socket Supported Processors

Socket AM5

Supported memory types

DDR5 SDRAM

Number of memory slots

4

Maximum RAM supported

192 GB

ECC compatibility

Non-ECC

Supported memory speeds

7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz

Supported memory clock speed (max)

7200 MHz

Supported storage drive interfaces

M.2, SATA

RAID Levels

0, 1

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

0

Front panel audio connector

Yes

Front panel connector

Yes

ATX Connector (24-PIN)

Yes

CPU fan connector

Yes

Frame intrusion connector

Yes

Number of USB 2.0 ports

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

0

Ethernet LAN ports (RJ-45)

1

Quantity of VGA (D-Sub) ports

0

Quantity of HDMI ports

1

Quantity of DVI-D ports

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

HDMI version

2.1

Headphone outputs

1

Line input

Yes

Microphone input jack

Yes

Wi-Fi

Yes

Ethernet LAN connection

Yes

Ethernet Interface Type

2.5 Gigabit Ethernet

LAN Controller

Realtek RTL8125-BG

Standard Wi-Fi

Wi-Fi 6E (802.11ax)

Wi-Fi Standard

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)

Bluetooth

Yes

Bluetooth version

5.3

Component for

PC

Motherboard Form Factor

ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD B650

Audio system

7.1 channels

Audio chip

Realtek ALC897

PC Health Monitoring

Fan

Supported Windows operating system

Windows 11 x64

PCI Express x16 slot (Gen 3.x)

1

Number of M.2 slots (M)

2

Length

243.8 mm

Depth

304.8 mm
