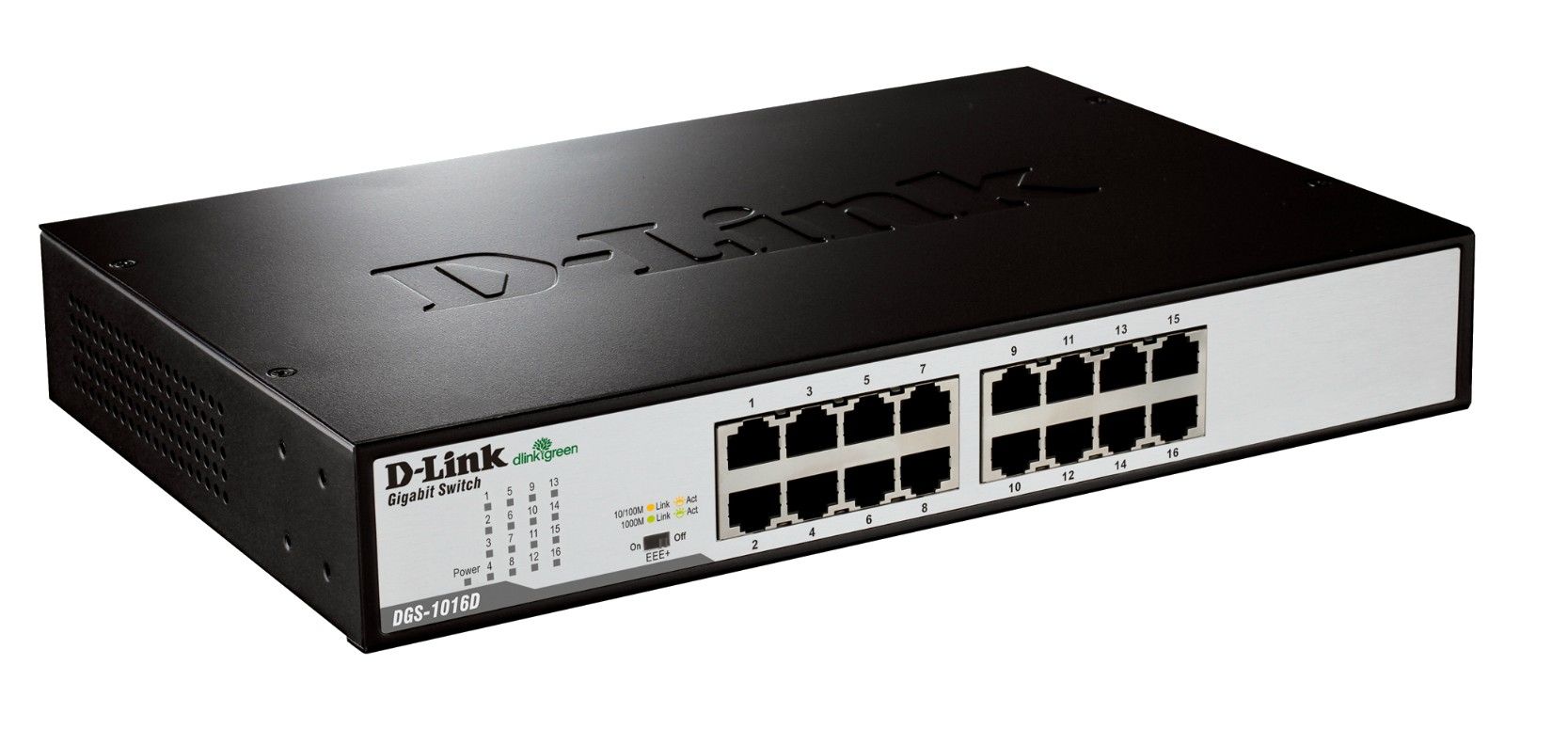

D-Link DGS-1016D/E Unmanaged Network Switch Black, Metallic

Gigabit switch with 16 copper ports
Streamline costs by delivering gigabit connections to desktops
With D-Link's new high-port density Gigabit switch, upgrading a desktop to Gigabit connections is simple and affordable. Gigabit desktop switches are a cost-effective solution that provides workgroups with the bandwidth of Gigabit Ethernet technology.

16 Gigabit copper ports
Each switch features 16 Gigabit ports, providing desktops with rapid server access to accommodate growing network loads. Plug-and-play installation and copper Gigabit ports, which can be connected using existing Category 5 twisted pair cabling, instantly improve workgroup performance without requiring expensive fiber optic cabling or complex reconfiguration. All ports support 10/100/1000Mbps network connections with full/half duplex auto-discovery and auto-negotiation.

Gigabit access to servers in full-duplex mode
Gigabit ports provide dedicated bandwidth for desktops, delivering full-duplex connections at 2000 Mbps. This allows workstations to simultaneously access server data without bottlenecks.

IEEE 802.3x Flow Control
This feature supports direct connection of all servers to the switch, ensuring fast and reliable data transfer. At 2000Mbps in full duplex mode, the switch provides high-speed data pipes to servers with minimal data transfer loss.

MDI/MDIX Auto-Negotiation
All ports support MDI/MDIX autonegotiation. This eliminates the need for crossover cables or uplink ports. Any port can be connected to a server, hub, or switch using a straight-through twisted pair.

Complete integration
The switch integrates seamlessly with existing Ethernet, Fast Ethernet, or Gigabit Ethernet network devices, requiring no hardware or software upgrades.

Plug-and-Play installation
With 10/100/1000Mbps auto-detection and speed negotiation on all ports and compatibility with existing Category 5 cabling, network setup is incredibly simple. Simply plug the cables into the switch and your network is ready to use in minutes.

D-Link DGS-1016D/E. Switch type: Unmanaged. Number of RJ-45 ports: 16. Full duplex. MAC address table size: 8000 entries, Switching capacity: 32 Gbit/s. Network standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Rack mount

Switch type

Not managed

Quality of Service (QoS) support

Yes

Number of RJ-45 ports

16

Network standards

IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

10G support

No

Ethernet technology over copper cables

1000BASE-T, 100BASE-T, 10BASE-T

Full duplex

Yes

Flow control support

Yes

Auto MDI/MDI-X

Yes

MAC table dimensions

8000 entries

Switching capacity

32 Gbit/s

Store-and-forward

Yes

Maximum transfer speed

1 Gbit/s

Jumbo Frames Support

Yes

Packet memory buffer

0.340 MB

Rack mounting

Yes

Stackable

Yes

Product color

Black, Metallic

LED indicators

Yes

Mean Time Between Failures (MTBF)

828109 h

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Consumption

11.7 W

Power over Ethernet (PoE) support

No

Operating temperature range

0 - 40 °C

Temperature range

-10 - 55 °C

Operating humidity range

5 - 95%

Length

281.9 mm

Depth

180.3 mm

Height

44.5 mm

Weight

1.35 kg

Packaging width

180 mm

Packaging depth

328 mm

Packaging height

108 mm

Packaging weight

1.71 kg

Shipping carton height

35.9 cm

Shipping carton width

19.7 cm

Shipping carton length

57.2 cm

Net weight of shipping carton

8.54 kg

Quantity of shipping carton

5 pcs

Gross pallet weight (air)

295.7 kg

Number of cartons per pallet (air)

30 pcs

Quantity per pallet (air)

150 pcs

Pallet length

110 cm

Pallet width

120 cm

Pallet height (air)

121.2 cm

Gross weight of pallet (sea)

480.3 kg

Number of cartons per pallet (sea)

50 pcs

Quantity per pallet (sea)

250 pcs

Pallet height (sea)

193 cm

Shipping carton weight

9.21 kg

Certification

FCC Class A, CE, ICES-003, VCCI, C-Tick, RoHS

Harmonized System Code (HS)

85176990
