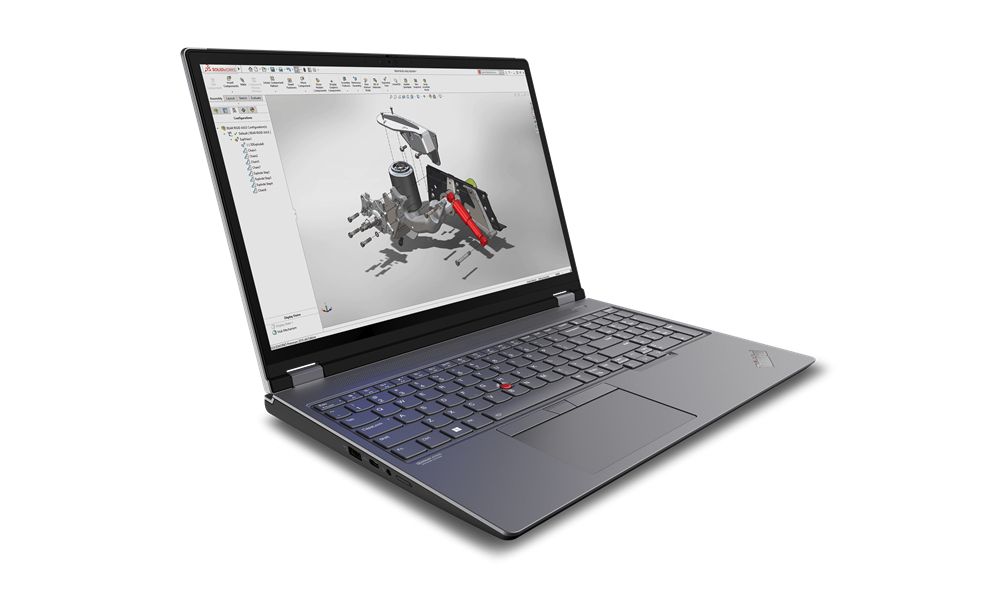

Lenovo ThinkPad P16 Gen 2 Intel® Core™ i9 i9-13980HX Mobile Workstation 40.6 cm (16") WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA

Portable power and limitless performance
- Powerful portable workstation and portable desktop in one
- Intel vPro® with 13th Gen Intel® Core™ HX-series processors
- Support for discrete NVIDIA® RTX™ and Intel® Arc™ graphics cards
- Ultra-high-speed memory and storage and excellent Wi-Fi options
- Choice of stunning displays, including OLED touch screen
- Outstanding reliability meets military specifications, ISV certification and ThinkShield security
- Components made from recycled materials and plastic-free packaging


Lenovo ThinkPad P16 Gen 2. Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel® Core™ i9, Processor model: i9-13980HX. Diagonal display diagonal: 40.6 cm (16"), HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Installed memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics adapter model: Intel® UHD Graphics, Discrete graphics adapter model: NVIDIA RTX 2000 Ada. Operating system installed: Windows 11 Pro. Product colour: Black, Grey

Product type

Mobile workstation

Product color

Black, Grey

Form factor

Clamshell

Color name

Storm gray (top), villi black (bottom)

Body material

Aluminum

Screen diagonal size

40.6 cm (16")

Display resolution

2560 x 1600 pixels

Touch screen

No

HD typology

WQXGA

Panel type

IPS

LED backlight

Yes

Native aspect ratio

4.10pm

Anti-glare screen

Yes

Screen brightness

500 cd/m²

RGB color space

sRGB

Color range

100%

Maximum refresh time

165 Hz

Contrast ratio

1200:1

Processor family

Intel® Core™ i9

Processor manufacturer

Intel

Processor model

i9-13980HX

Processor generation

13th Generation Intel® Core™ i9

Number of processor cores

24

Maximum turbo processor frequency

5.6 GHz

Performance Core

8

Efficient cores

16

Processor Turbo Frequency Maximum Performance-core

5.6 GHz

Efficient-core Processor Maximum Turbo Frequency

4 GHz

Processor cache

36 MB

Processor cache type

Smart cache

Base processor power

55 W

Maximum turbo power

157 W

Installed RAM

32 GB

Maximum RAM supported

192 GB

RAM Type

DDR5-SDRAM

Memory speed

5600 MHz

Memory form factor

SO-DIMM

Memory structure

2 x 16 GB

Memory slot

4x SO-DIMM

Memory channels

Dual channel

Total storage capacity

1 TB

Memory support

SSD

Optical drive type

No

Total SSD capacity

1 TB

Number of SSDs installed

1

SSD capacity

1 TB

Solid State Drive (SSD) Interface

PCI Express 4.0

NVMe

Yes

SSD size

M.2

Integrated card reader

Yes

Types of memory cards

SD

Integrated graphics card

Yes

Separate graphics card adapter

Yes

Dedicated graphics card

NVIDIA RTX 2000 Ada

Integrated graphics card model

Intel® UHD Graphics

Discrete GPU Manufacturer

NVIDIA

Dedicated Graphics Memory

8 GB

Graphics card memory type

GDDR6

Integrated GPU manufacturer

Intel

Integrated graphics adapter family

Intel® UHD Graphics

Audio chip

Realtek ALC3306

Audio system

Dolby Atmos

Number of built-in speakers

2

Speaker power

2 W

Built-in microphone

Yes

Number of microphones

2

Front camera

Yes

Front camera resolution

1920 x 1080 pixels

Front camera HD type

Full HD

Infrared (IR) camera

Yes

Camera for private life

Yes

Type of privacy

Privacy protection shutter

Mobile network connection

No

Standard Wi-Fi

Wi-Fi 6E (802.11ax)

Wi-Fi Standard

Wi-Fi 6E (802.11ax)

Antenna type

2x2

WLAN controller device model

Intel Wi-Fi 6E AX211

WLAN controller manufacturer

Intel

Ethernet LAN connection

No

Bluetooth

Yes

Bluetooth version

5.1

Near Field Communication (NFC)

No

WWAN

Upgradeable

Number of USB 2.0 ports

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

Quantity of HDMI ports

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

1

HDMI version

2.1

Number of Thunderbolt 4 ports

2

Intel® Thunderbolt 4

Yes

Microphone/headphone combo jack

Yes

USB Type-C DisplayPort Alternate Mode

Yes

USB Sleep-and-Charge

Yes

USB ports Sleep-and-Charge

1

Motherboard chipset

Intel WM790

Numeric keypad

Yes

Pointing device

ThinkPad UltraNav

backlit keyboard

Yes

Water resistant

Yes

Keyboard language

Italian

Operating system included

Windows 11 Pro

Operating system architecture

64-bit

Operating system language

German, Dutch, English, French, Italian

Battery capacity

94 Wh

Battery technology

Lithium Polymers (LiPo)

AC Power Dissipation Adapter

170 W

AC frequency adapter

50 - 60 Hz

AC input voltage adapter

100 - 240 V

USB power supply

Yes

Cable lock

Yes

Cable lock slot type

Kensington

Fingerprint reader

Yes

Smart card reader

Yes

Windows Hello

Yes

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Password protection

Yes

Password protection

BIOS, On, SSD, Supervisor

Operating temperature range

5 - 35 °C

Temperature range

5 - 43 °C

Operating humidity range

8 - 95%

Humidity

5 - 95%

Maximum sending altitude

3048 m

Certificates of conformity

RoHS

Certification

MIL-STD-810H

Sustainability certificates

ENERGY STAR, EPEAT Gold, TCO

Weight

2.95 kg

Length

364 mm

Depth

266 mm

Height

30.2 mm
