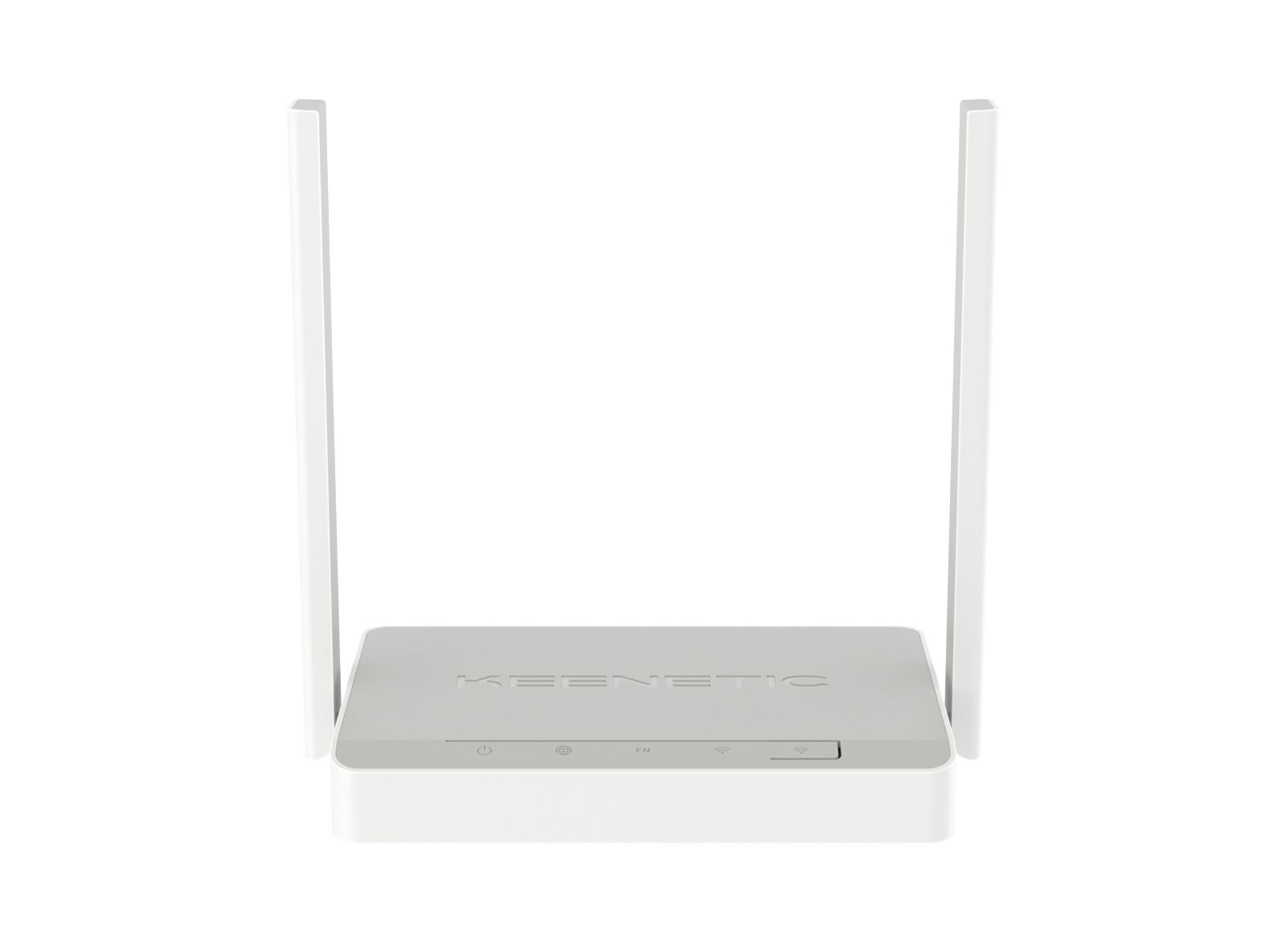

Keenetic Explorer AC1200 5 Mesh Wi-Fi Router/Extender with 4-Port Smart Switch

Keenetic Explorer
AC1200 5 mesh Wi-Fi Router/Extender with 4-port smart switch

Simplify your connection, amplify your life
Control at your fingertips
On the one hand, the Explorer can act as a high-end AC1200-class Wi-Fi router in all scenarios where USB functionality and Ethernet speeds above 100 Mbps are not required. On the other hand, the manual switching between router/extender mode makes it an ideal Wi-Fi extender in a Wi-Fi system, extending coverage via Ethernet cable or mesh Wi-Fi connections.

Next-generation security for next-level networking
Your privacy, our priority
Protect your family from inappropriate content and effectively manage screen time to ensure a safe and healthy online experience for everyone. Say hello to reliable Wi-Fi and peace of mind with Keenetic Explorer.

Keenetic Explorer AC1200 Mesh Wi-Fi 5 Router/Extender with 4-Port Smart Switch. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz/5 GHz), Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 1200 Mbps. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data transfer rate: 10,100 Mbps, Cabling technology: 10/100Base-T(X). Number of data streams: 2x2. Supported security algorithms: WEP, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK, Firewall security: SPI firewall

Ethernet WAN

Yes

DSL WAN

No

SIM card slot

No

USB modem compatible with 3G/4G

No

WAN Connection Type

RJ-45

Wi-Fi Band

Dual-band (2.4 GHz/5 GHz)

Standard Wi-Fi

Wi-Fi 5 (802.11ac)

WLAN data transfer rate (max)

1200 Mbit/s

Wi-Fi Standard

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

WLAN data transfer rate (first band)

300 Mbit/s

WLAN data transfer rate (second band)

367 Mbit/s

Ethernet LAN connection

Yes

Ethernet LAN Interface Type

Fast Ethernet

Ethernet LAN Transfer Speed

10,100 Mbit/s

Wiring technology

10/100Base-T(X)

Network standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v

Port forwarding

Yes

Dynamic DNS (DDNS)

Yes

Criteria-based routing

Yes

VPN Server

OpenVPN

VPN Support

IPsec VPN (client/server)

Ethernet LAN ports (RJ-45)

4

USB port

No

DC-in jack

Yes

Web-based management

Yes

Installing the Web-Based Wizard

Yes

Wi-Fi Multimedia (WMM)/(WME)

Yes

WPS Push Button Security

Yes

Intelligent Mesh Technology

Yes

MU-MIMO technology

Yes

MIME

Yes

Number of data streams

2x2

Supported security algorithms

WEP, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK

Firewall

Yes

Firewall security

SPI firewall

Guest access

Yes

DoS attack prevention

Yes

Parental Control

Yes

MAC address filters

Yes

System Event Log

Yes

NAT (Network Address Translation)

Yes

DHCP Client

Yes

DHCP Server

Yes

Universal Plug and Play (UPnP)

Yes

Product type

Tabletop router

Product color

Gray, White

LED indicators

LAN, Power, WAN

Cables included

LAN (RJ-45)

AC/DC adapter

Yes

Quick Installation Guide

Yes

Antenna design

External

Antenna quality

2

Integrated processor

Yes

Processor manufacturer

MediaTek

Processor model

MediaTek MT7628N

Processor frequency

580 MHz

Installed RAM

128 MB

RAM Type

DDR2

Flash memory

32 MB

Power supply type

B.C

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Output voltage

12 V

Output current

1 A

Operating temperature range

0 - 40 °C

Operating humidity range

20 - 95%

Supported mobile operating system

Android, iOS

Length

159 mm

Depth

110 mm

Height

29 mm

Weight

248 g

Number of products included

1 pc
