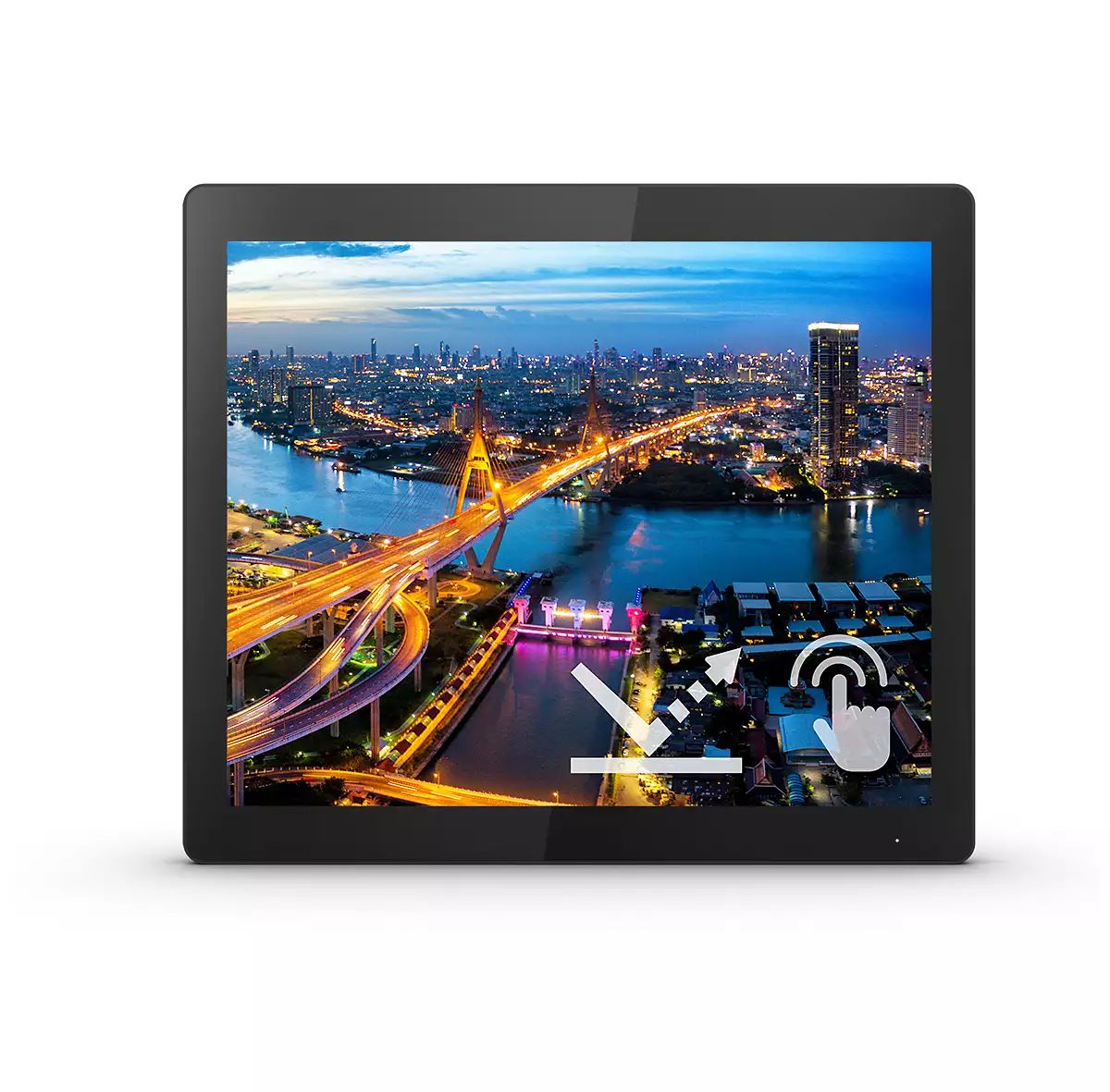

Philips B Line 172B1TFL/00 PC monitor 43.2 cm (17") 1280 x 1024 pixels LED Touch screen Black

The Philips open-frame touch monitor offers optimal mounting flexibility. Its robust, all-screen design is water and dust resistant and adapts to your needs. Excellent brightness and an anti-glare display provide incredible image clarity.

Philips B Line 172B1TFL/00. Diagonal display size: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, Display technology: LED, Response time: 4 ms, Native aspect ratio: 5:4, Viewing angle, horizontal: 160°, Viewing angle, vertical: 140°. Built-in USB hub. VESA mounting. Product colour: Black

Screen diagonal size

43.2 cm (17")

Display resolution

1280 x 1024 pixels

Native aspect ratio

5:4

Display technology

LED

Touch screen

Yes

Panel type

TN

Response time

4 ms

Screen shape

Dish

Contrast ratio

1000:1

Maximum refresh time

75 Hz

Display colors

16.78 million colors

Backlight type

W-LED

touchscreen technology

Progressive capacitive system

Touch technology

Multi-touch

Number of simultaneous touch points

10

Screen brightness

400 cd/m²

Format

5:4

Contrast ratio (dynamic)

50000000:1

Marketing name of dynamic contrast ratio

SmartContrast

Viewing angle (horizontal)

160°

Viewing angle (vertical)

140°

Dot Pitch

0.264 x 0.264 mm

Pixel Density

96 ppi (dots per inch)

Horizontal scanning range

30 - 83 kHz

Vertical scan range

50 - 75 Hz

Visible size, horizontal

33.8 cm

Visible dimension, vertical

27 cm

Screen diagonal size (cm)

43.2 cm

DDC/CI Interface

Yes

Percentage of obfuscation

5%

Surface hardness

7H

sRGB screen

Yes

NVIDIA G-SYNC

No

AMD FreeSync

No

Video Sync Component

Separate sync, Sync-on-green (SOG)

Flicker-free technology

Yes

Low Blue Light Technology

Yes

Supported Windows operating system

Windows 10, Windows 7, Windows 8, Windows 8.1

Other supported operating systems

Android

Built-in speakers

No

Built-in camera

No

Product color

Black

Front frame

Black

Integrated USB hub

Yes

HDMI

Yes

Number of upstream ports

1

Number of USB Type-A downstream ports

2

Touch USB port

Yes

Quantity of VGA (D-Sub) ports

1

DVI port

Yes

Quantity of DVI-D ports

1

Quantity of HDMI ports

1.4

HDMI version

1.4

DisplayPort Quantity

1.2

DisplayPort version

1.2

Audio output

Yes

VESA standard mounting

Yes

Cable lock

Yes

Height adjustment

No

Panel mounting interface 24/5000 Panel mounting interface

100 x 100 mm

Wall mountable

Yes

Cable lock slot type

Kensington

On-Screen Display (OSD)

Yes

OSD languages

Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian

Number of OSD languages

21

Palm rejection area

30 x 30 mm

Plug & Play

Yes

LED indicators

Operation, Stand-by

Energy efficiency class (SDR)

AND

Consumption

12.1 W

Consumption (standby mode)

0.4 W

Consumption (off mode)

0.3 W

Consumption (energy saving mode)

7.9 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power supply type

External

European Product Register for Energy Labelling (EPREL) Code

420487

Operating temperature range

0 - 40 °C

Temperature range

-20 - 60 °C

Operating humidity range

20 - 80%

Operating altitude

0 - 3658 m

Non-operating altitude

0 - 12192 m

Width (without stand)

383 mm

Depth (without support)

49 mm

Height (without stand)

329 mm

Weight (without stand)

4.3 kg

Packaging width

465 mm

Packaging depth

123 mm

Packaging height

384 mm

Packaging weight

5.83 kg

Cables included

HDMI, DisplayPort, USB Type A to USB Type B, AC

User Manual

Yes

Software provided

SmartControl

Does not contain

PVC/BFR, Mercury

International Protection Code (IP)

IP65

Effective viewing area

339.72 x 270.336 mm

Recyclable packaging materials

100%

Free from heavy metals

Hg (mercury)

EasyREAD mode

Yes

Energy efficiency class (old)

AND

Certificates of conformity

RoHS

Mean Time Between Failures (MTBF)

70,000 hours

Certification

CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, CU-EAC, EAEU RoHS, TUV Ergo, TUV/GS, TUV Eye Comfort certified

Harmonized System Code (HS)

85285210

Image enhancement

SmartImage

Approvals

CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; CU-EAC; EAEU RoHS; TUV Ergo; TUV/GS; TUV Eye Comfort certified

Touch method

Stylus, Finger, Glove
