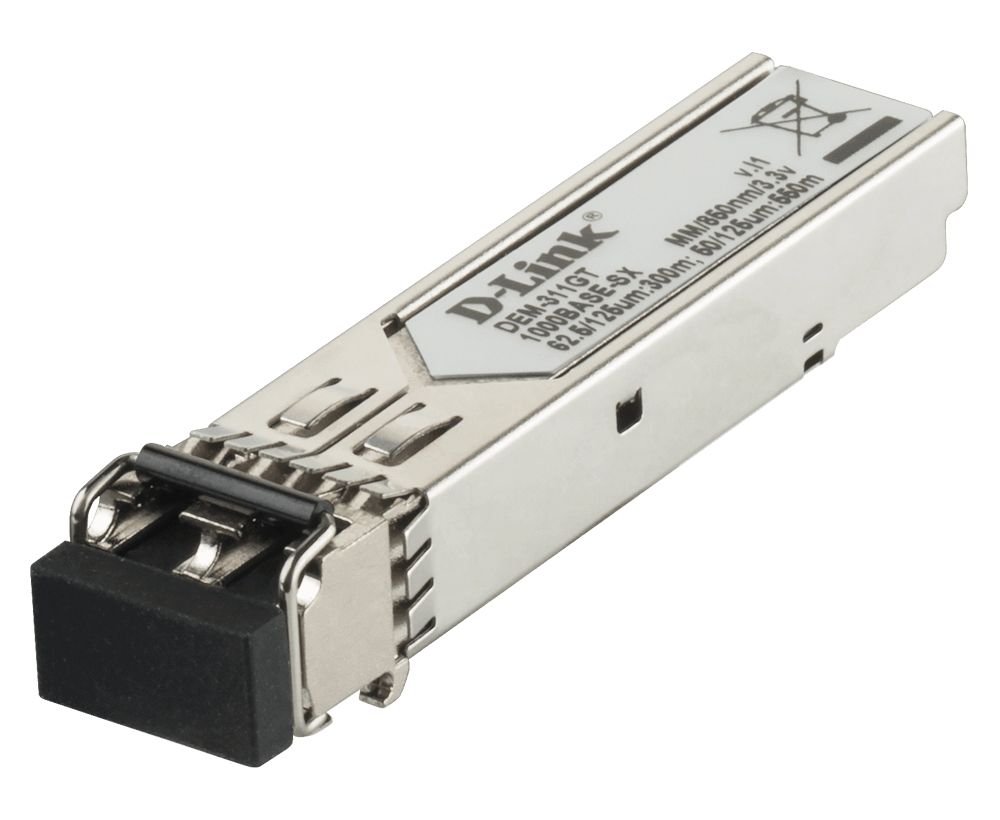

D-Link DEM-311GT 1000 Mbit/s SFP 850 nm Fiber Optic Network Transceiver Module

D-Link DEM-311GT. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1000 Mbps, Interface type: SFP. Product colour: Black, Stainless steel. Input voltage: 3.3 V, Maximum current: 0.24 A. Compliance certificates: RoHS, Certification: FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B, FDA/CDRH, TUV, cUL. Width: 13.4 mm, Depth: 56.4 mm, Height: 10.3 mm

SFP Transceiver Type

Fiber optics

Maximum data transfer speed

1000 Mbit/s

Interface type

SFP

Multimode Fiber (MMF) supported

Yes

Fiber optic connector

LC

Supported fiber cable diameters (sheath core)

50/125,62.5/125 µm

Maximum transfer distance

550 m

Wavelength

850 nm

Tx Power (min)

-4 dBmW

Tx Power (max)

-17 dBmW

Rx Power (max)

-3 dBmW

Connection balance sheet

13 dB

Network standards

IEEE 802.3z

Electrical cable fiber technology

1000BASE

Product color

Black, Stainless Steel

Hot-Plug Support

Yes

Input voltage

3.3 V

Maximum current

0.24 A

Certificates of conformity

RoHS

Certification

FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B, FDA/CDRH, TUV, cUL

Minimum operating temperature

0 °C

Maximum operating temperature

70°C

Operating temperature range

0 - 70 °C

Temperature range

-40 - 85 °C

Operating humidity range

10 - 90%

Humidity

5 - 90%

Length

13.4 mm

Depth

56.4 mm

Height

10.3 mm

Weight

15.5 g

Quantity per package

10 pcs

RX sensitivity

-17 dB

Sustainability Compliance

Yes
