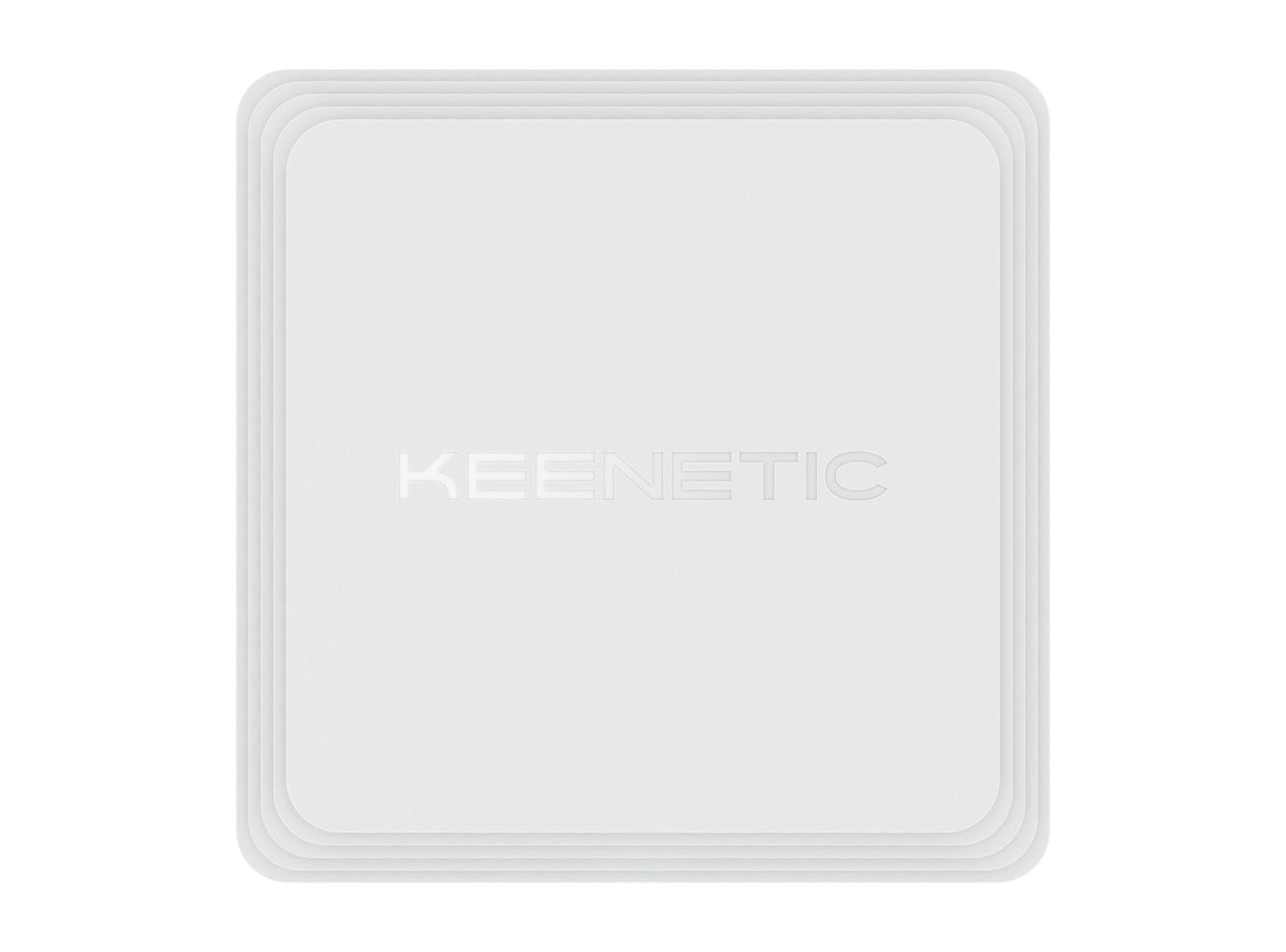

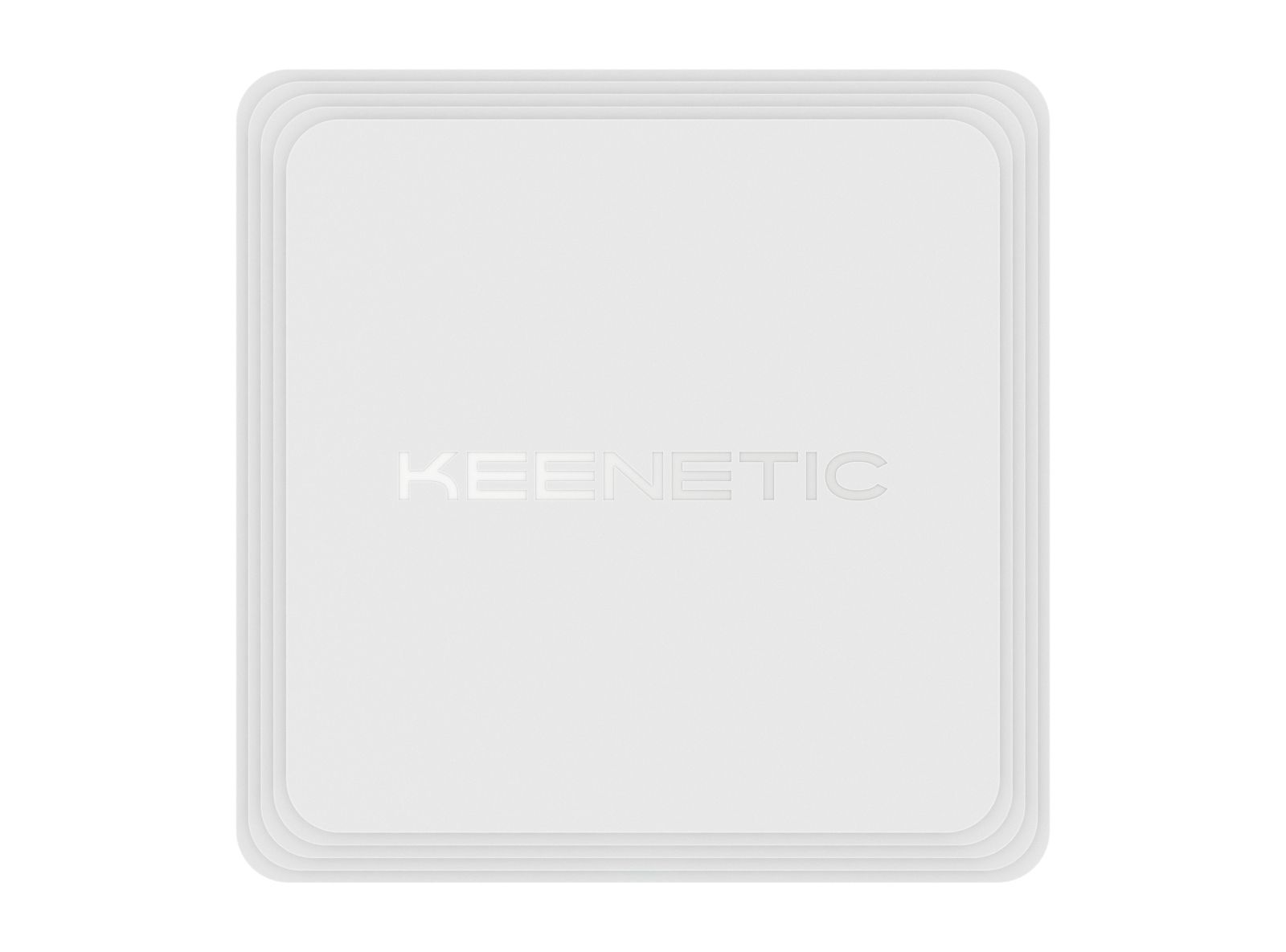

Keenetic Orbiter Pro AC1300 Mesh Wi-Fi Router/Extender/Access Point with 2-Port Gigabit Smart Switch and Power over Ethernet

Keenetic Orbiter Pro
AC1300 Mesh Wi-Fi Router/Extender/Access Point with 2-Port Gigabit Smart Switch and Power over Ethernet

The ultimate Internet experience, simplified
Designed for the modern digital home
Orbiter Pro is a compact, full-featured Wi-Fi router for those who don't like external antennas and unnecessary cables. With AC1300 Wave 2 Wi-Fi, it can cover a small home with many connected wireless devices and an internet subscription at up to 1 Gbps. When creating a Wi-Fi system to seamlessly multiply coverage, Orbiter Pro is the ideal low-profile extender that connects to the main router via Gigabit Ethernet or Mesh Wi-Fi technology.

High speed to keep chasing your dreams
Improve your Internet experience
Recommended for professionals and advanced users focusing on the professional access point category, the Orbiter Pro brings to the forefront PoE power, universal wall or ceiling mounting, support for 802.1Q VLAN, seamless 802.11r/k/v roaming and WPA2/WPA3 Enterprise security, centralized management via any Keenetic router acting as a network controller, and convenient monitoring of large distributed Wi-Fi systems via the Keenetic RMM cloud system.

Keenetic Orbiter Pro AC1300 Mesh Wi-Fi Router/Extender/Access Point with 2-Port Gigabit Smart Switch and Power over Ethernet. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1300 Mbps. Supported security algorithms: HTTPS, OWE, SSH, WEP, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK. Ethernet LAN transfer speeds: 10, 100, 1000 Mbps. Power over Ethernet (PoE) support. Product color: White. Power consumption (max): 12 W

2.4 GHz

Yes

5 GHz

Yes

6 GHz

No

Maximum data transfer speed

1300 Mbit/s

Maximum data transfer rate (2.4 GHz)

400 Mbit/s

Maximum data transfer rate (5 GHz)

867 Mbit/s

Wireless LAN data transfer rate (max)

1300 Mbit/s

Ethernet LAN Transfer Speed

10,100,1000 Mbit/s

Frequency band

2.4 - 5 GHz

Network standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.1x

Wiring technology

10/100/1000Base-T(X)

Number of users

114 user(s)

Automatic channel selection

Yes

Full duplex

Yes

MIME

Yes

MIMO type

Multi-User MIMO

Wi-Fi Multimedia (WMM)/(WME)

Yes

VLAN support

Yes

User based bay width limit

Yes

Smart grid system

Yes

Airtime Fairness (ATF)

Yes

Dynamic Frequency Selection (DFS)

Yes

Quality of Service (QoS) support

Yes

Number of guest networks (2.4 GHz)

7

Criteria-based routing

Yes

Port forwarding

Yes

Dynamic DNS (DDNS)

Yes

BeamForming

Yes

Direct or cloud access via KeenDNS

Yes

L2TP/PPTP data rate

800 Mbit/s

WireGuard Speed

180 Mbit/s

WireGuard

Yes

AdGuard ad blocker

Yes

Internet connection backup

Yes

Ping check

Yes

PPPoE/PPTP/L2TP pass-through

Yes

Routing table

DHCP, Manual

IntelliQoS

Yes

Supported WAN type

Multi-WAN

Supported security algorithms

HTTPS, OWE, SSH, WEP, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK

MAC address filters

Yes

Guest access

Yes

DoS attack prevention

Yes

Parental Control

Yes

Plan access

Yes

IGMP snooping function

Yes

NAT (Network Address Translation)

Yes

VPN Support

PPTP (client/server) L2TP over IPSec (client/server) OpenVPN (client/server) SSTP (client/server) IPsec VPN (client/server)

Universal Plug and Play (UPnP)

Yes

DHCP Server

Yes

DHCP Client

Yes

Supported network protocols

IPoE, PPPoE, PPTP, L2TP, 802.1x

IPv4 and IPv6 Features

IPv4/IPv6 dual stack

UDP-to-HTTP Proxy

Yes

Supported protocols

EoIP, IP-IP, GRE

Web-based management

Yes

Command Line Interface (CLI)

Yes

Installing the Web-Based Wizard

Yes

Syslog

Yes

Traffic statistics

Yes

Captive Door

Yes

Cloud-managed

Yes

Backup function

Yes

Upgradeable firmware

Yes

Ethernet LAN ports (RJ-45)

2

Number of USB 2.0 ports

0

Number of internal RJ-45 ports

2

WAN port

Ethernet (RJ-45)

DC-in jack

Yes

Power over Ethernet (PoE) support

Yes

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

DC voltage rate

12 V

Input current

1 A

Output voltage

12 V

Output current

1 A

Power consumption (max)

12 W

Installation

Ceiling, Wall, Desk

Product color

White

Body material

Plastic

Reset button

Yes

WPS Push Button Security

Yes

Antenna type

Internal

Antenna quality

2

Integrated processor

Yes

Processor manufacturer

MediaTek

Processor model

MediaTek MT7621A

Processor frequency

880 MHz

Number of processor cores

2

Flash memory

128 MB

Installed RAM

128 MB

RAM Type

DDR3

Supported mobile operating system

Android, iOS

Quantity of shipping carton

1 pc

SIM card slot

No

Length

170 mm

Depth

170 mm

Height

38 mm

Weight

488 g

Quantity per package

1 pc

AC/DC adapter

Yes

Cables included

LAN (RJ-45)

Assembly kit

Yes

Quick Guide

Yes

Firewall security

SPI

Operating humidity range

20 - 95%

Operating temperature range

0 - 40 °C

Warranty duration

3 year(s)
