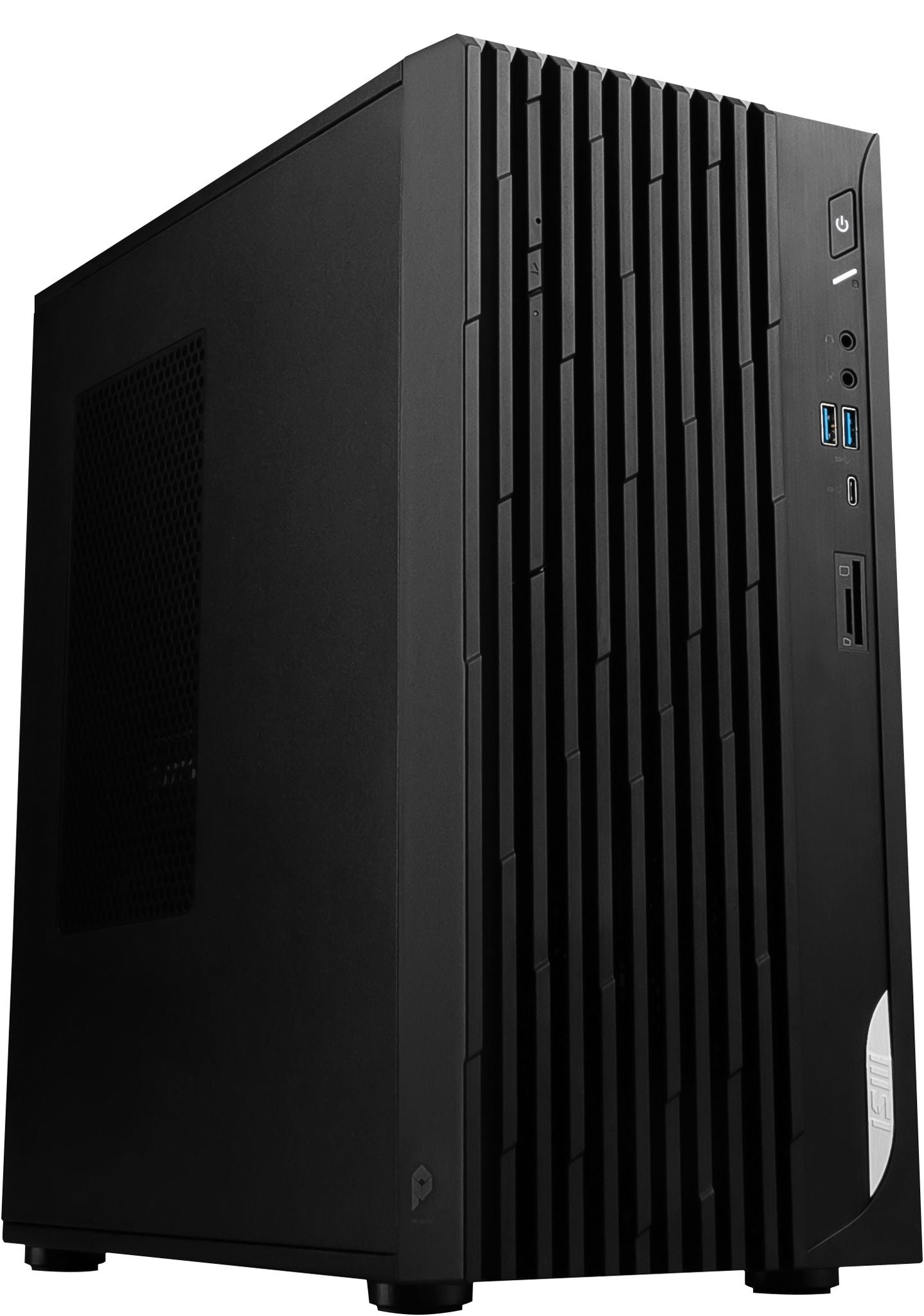

MSI Pro DP180 14TC-426IT Intel® Core™ i7 i7-14700F 16 GB DDR4-SDRAM 512 GB SSD NVIDIA GeForce RTX 3060 Windows 11 Pro Desktop

MSI Pro DP180 14TC-426IT. Processor family: Intel® Core™ i7, Processor model: i7-14700F. Installed RAM: 16 GB, RAM type: DDR4-SDRAM, Memory clock speed: 3200 MHz. Total storage capacity: 512 GB, Storage media: SSD, Integrated card reader. Discrete graphics card: NVIDIA GeForce RTX 3060. Operating system installed: Windows 11 Pro. Power supply: 500 W. Chassis type: Desktop. Product type: PC. Weight: 7.59 kg. Product colour: Black

Processor family

Intel® Core™ i7

Processor manufacturer

Intel

Processor model

i7-14700F

Processor generation

Intel Core i7-14xxx

Number of processor cores

20

Number of processor threads

28

Maximum turbo processor frequency

5.4 GHz

Performance Core

8

Efficient cores

12

Processor Turbo Frequency Maximum Performance-core

5.3 GHz

Efficient-core Processor Maximum Turbo Frequency

4.2 GHz

Performance Core Base Frequency

2.1 GHz

Efficient core base frequency

1.5 GHz

Processor cache

33 MB

Processor cache type

Smart cache

Base processor power

65 W

Maximum turbo power

219 W

Installed RAM

16 GB

Maximum RAM supported

64 GB

RAM Type

DDR4-SDRAM

Memory slot

2x DIMM

Memory speed

3200 MHz

Total storage capacity

512 GB

Optical drive type

No

Memory support

SSD

Total SSD capacity

512 GB

Number of SSDs installed

1

SSD capacity

512 GB

Solid State Drive (SSD) Interface

PCI Express

NVMe

Yes

SSD size

M.2

Integrated card reader

Yes

Types of memory cards

SD

Separate graphics card adapter

Yes

Integrated graphics card

No

Dedicated graphics card

NVIDIA GeForce RTX 3060

Integrated graphics card model

Not available

Discrete GPU Manufacturer

NVIDIA

Dedicated Graphics Memory

8 GB

Ethernet LAN connection

Yes

Wi-Fi

Yes

Ethernet LAN Transfer Speed

10,100,1000,2500 Mbit/s

Standard Wi-Fi

Wi-Fi 6E (802.11ax)

Wi-Fi Standard

Wi-Fi 6E (802.11ax)

WLAN controller manufacturer

Intel

WLAN controller device model

Intel Wi-Fi 6E AX211

Bluetooth

Yes

Bluetooth version

5.3

Number of USB 2.0 ports

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports

0

Quantity of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports

1

Thunderbolt 3 Ports Quantity

0

Quantity of HDMI ports

1

Quantity of VGA (D-Sub) ports

1

HDMI version

2.1

DisplayPort Quantity

1

DisplayPort version

1.4

PS/2 Ports Quantity

1

Ethernet LAN ports (RJ-45)

2

Microphone input jack

Yes

Headphone outputs

1

Microphone/headphone combo jack

Yes

DC-in jack

Yes

Type of houses

Desktop

Product color

Black

Number of 3.5" drive bays

1

Cable lock

Yes

Product type

PC

Motherboard chipset

Intel H610

Operating system included

Windows 11 Pro

Diet

500 W

80 PLUS Certification

80 PLUS Bronze

Operating temperature range

0 - 35 °C

Temperature range

-20 - 60 °C

Operating humidity range

0 - 85%

Humidity

0 - 90%

Certification

FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)

Length

168 mm

Depth

323 mm

Height

369 mm

Weight

7.59 kg

Packaging width

565 mm

Packaging depth

242 mm

Packaging height

510 mm

Packaging weight

9.03 kg

Screen included

No
