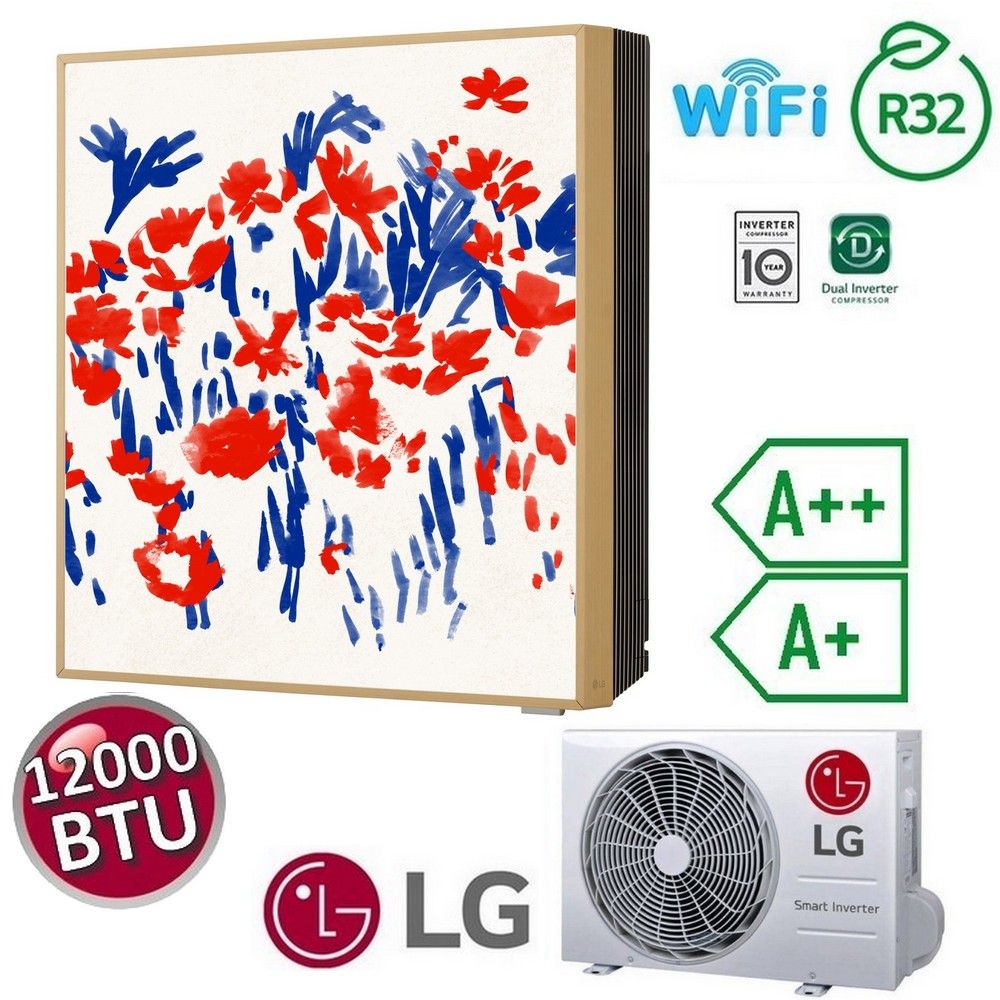

LG ARTCOOL GALLERY photo mono split 12000 Btu 3.5 Kw A++/A+

LG Artcool PHOTO WiFi - 12000 btu

A++ / A+ single split air conditioner / mirror finish

Structure
Internal unit for wall installation, for LG R32 type systems, consisting of an internal support frame in galvanized steel and an external body in shock-proof plastic material.
Front panel with customizable frame.
Wood-colored frame with magnetic bottom profile.
Air intake positioned in the upper part of the front panel, with three-directional flow (RIGHT, LEFT, BOTTOM).
Multi-row heat exchanger with aluminum-finned copper tubes, refrigerant control via electronic expansion valve located on the outdoor unit.

Comfort Power
3D air distribution with indirect air function that can be set from the
infrared command

Series: Artcool Gallery PHOTO WiFi - with R32 refrigerant gas

• Indoor unit model: A12GA1.NSE

• Outdoor unit model: A12GA1.U18

• Type: heat pump

• Power: 12000 BTU


Energy Efficiency:

• Seasonal efficiency:
  -SEER: 6.80
  -SCOP average climate zone: 4.3

• Energy Efficiency Class (Cooling): A++

• Energy Efficiency Class (Heating): A+

• Seasonal energy consumption kWh/year: cooling 180 - heating 879

Performance:

• Cooling Capacity (kW) : 3.5 (0.89 / 4.04)

• Heating Capacity (kW) : 4.0 (0.89 / 4.7)

• Sound Pressure Int. Unit (sa.-a.-m.-b.) (dB(A)) : 42/20

• Sound Pressure External Unit Max (dB(A)) : 51/54

• Sound power level EU (a.): 65

• Cooling power consumption kW: 1020

• Heating power consumption kW: 1078

Electrical data:

• Power supply (V/Hz/?) : 230/1/50

Characteristics:

• Refrigerant gas: R32 / 800 gr.

• Liquid / gas pipe diameter: 6.35 (1/4') / 9.52 (3/8') mm

• Maximum length of pipes with additional load 20 m

• Maximum height difference (external unit above) 7 m

Dimensions and weight:

• Internal Unit HxWxD (mm): 652x652x158; 20 Kg

• External Unit HxWxD (mm): 770x545x288; 33.4 kg

Product Code: A12GA1.NSE+A12GA1.U18
