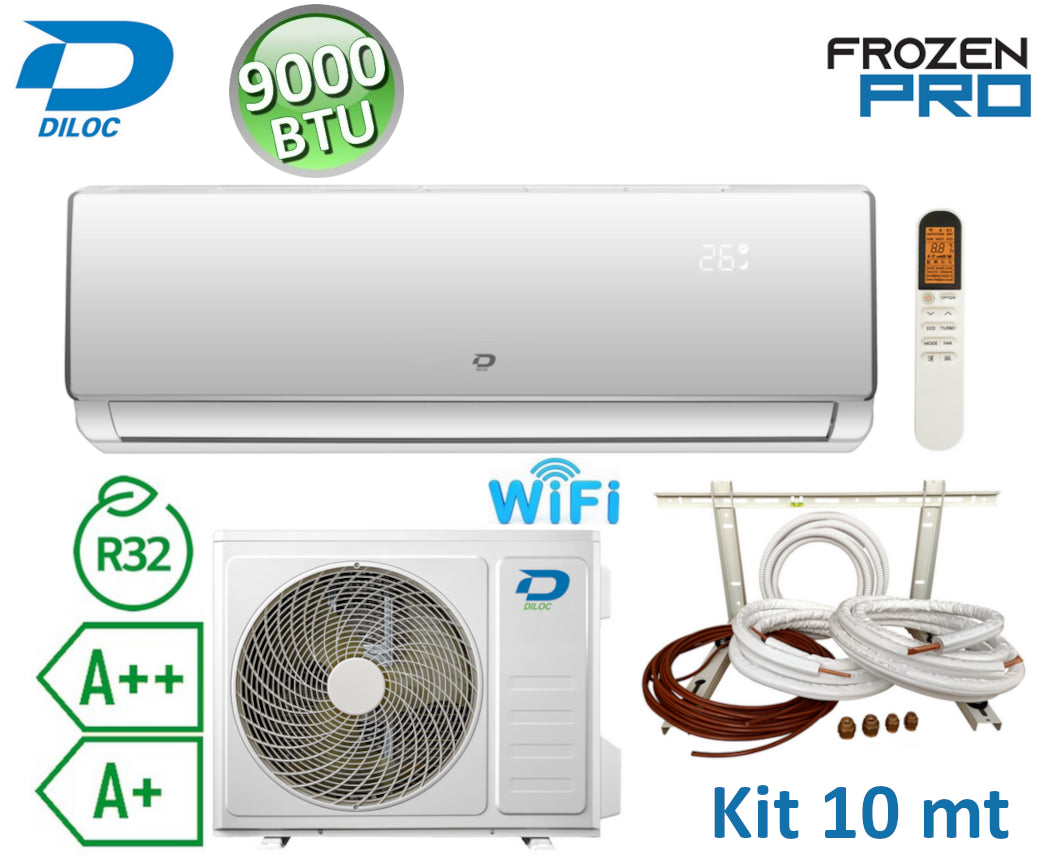

DILOC frozen PRO 9000 BTU air conditioner + 10 m installation kit

R32 REFRIGERANT CLASS A++/A+ HEAT PUMP - INTEGRATED WiFi

Series: GE Green Electric with R32 refrigerant gas with R32 refrigerant gas

• Indoor unit model: FRPRO.25S
• External unit model: FRPRO.25E
• Type: heat pump
• Power: 9000 BTU

Energy Efficiency:

• Seasonal efficiency:
  • - SEER: 6.1
  • - SCOP: (average/warmer/colder climate): 4.0/5.1/
• Energy Efficiency Class (Cooling): A++
• Energy Efficiency Class (Heating): A+ / A+++

Performance:

• Cooling Capacity (kW) : 2.6 (min 0.94 / max 3.3)
• Heating Capacity (kW): 3.4 (min 0.94 / max 3.36)
• Air flow UImax m³/h: max 420
• Sound Pressure Int. Unit (sa.-a.-m.-b.) (dB(A)) : 40-37-33-25-22
• Sound Pressure External Unit (dB(A)) min-max: 50-60
• Cooling power consumption W: 800 (240-1380)
• Heating power consumption W: 699 (240-1552)

Electrical data:

Power supply (V/Hz/?) : 230/1/50

Characteristics:

• Refrigerant gas: R32 - 0.57 Kg
• Liquid / gas pipe diameter: 6.35 (1/4') / 9.52 (3/8') mm
• Maximum length of pipes with standard load: 5 m
• Maximum length of pipes with additional load 25 m
• Maximum height difference (external unit above) 10 m

Dimensions and weight:

• Internal Unit HxWxD (mm): 2255x698x190; 8.5 Kg (without packaging)
• External Unit HxWxD (mm): 520x818x325; 24 Kg (without packaging)

The assembly kit includes:

• 10 meters of 1/4" copper pipe - 0.8 mm wall thickness
• 10 meters of 3/8" copper pipe - 0.8 mm wall thickness
• 10 meter condensation pipe
• 10-meter power cable (for power and communication connection)
• Wall bracket
• EASY JOINT 1/4 SAE self-flaring unions WITHOUT flaring tool
• EASY JOINT 3/8 SAE self-flaring unions WITHOUT flaring tool
