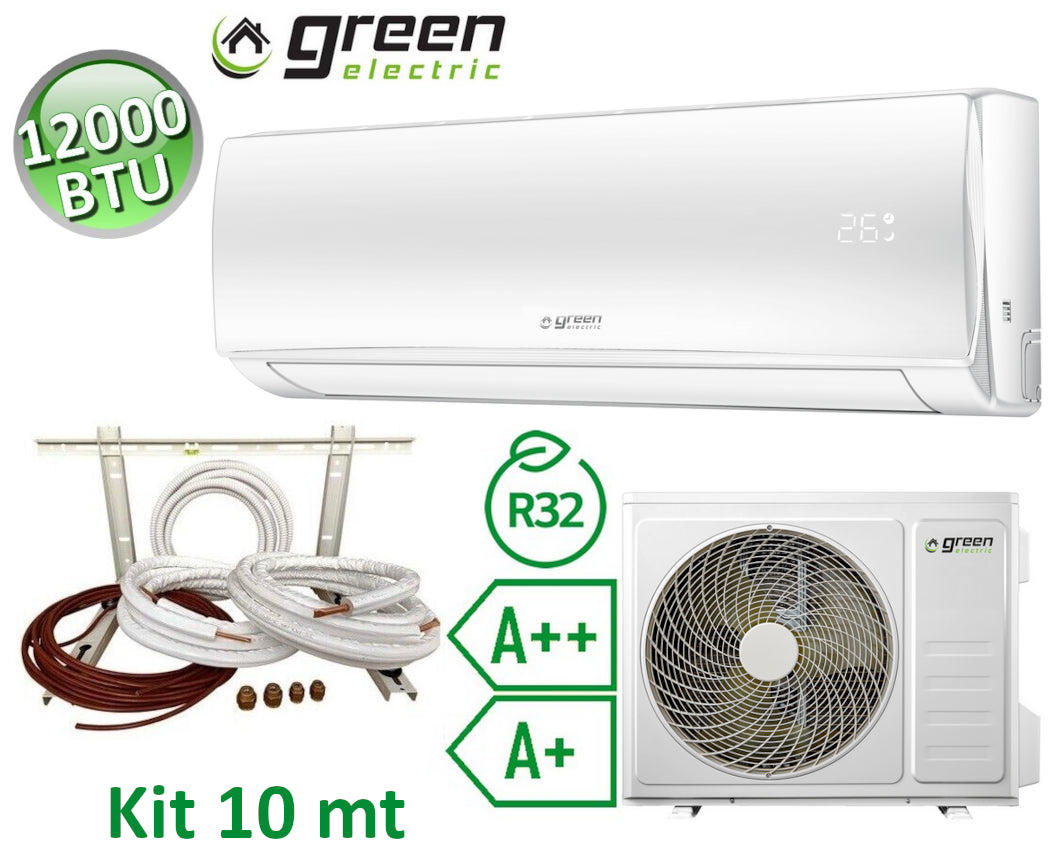

Green Electric EVO 12000 BTU AIR CONDITIONER

R32 REFRIGERANT CLASS A++/A+ HEAT PUMP - OPTIONAL WiFi

Series: Green Electric Evo with R32 refrigerant gas with R32 refrigerant gas

• Indoor unit model: GREVO.35S
• Outdoor unit model: GREVO.35E
• Type: heat pump
• Power: 12000 BTU

Energy Efficiency:

• Seasonal efficiency:
  • -SEER: 6.1
  • -SCOP: 4.0
• Energy Efficiency Class (Cooling): A++
• Energy Efficiency Class (Heating): A+

Performance:

• Cooling Capacity (kW) : 3.4 (3140 / 13000 BTU)
• Heating Capacity (kW): 3.4 (3140 / 12992 BTU)
• Air flow UImax m³/h: 550
• Sound Pressure Int. Unit (sa.-a.-m.-b.) (dB(A)) : 40-37-33-25-22
• Sound Pressure External Unit Max (dB(A)) : 52
• Sound power UE min/max dB(A): 50/60
• Cooling power consumption W: 1130 (290 - 1500)
• Heating power consumption W: 1005 (290 - 1270)

Electrical data:

Power supply (V/Hz/?) : 230/1/50

Characteristics:

• Refrigerant gas: R32 / 0.45 gr.
• Liquid / gas pipe diameter: 6.35 (1/4") / 9.52 (3/8") mm
• Maximum length of pipes with additional load 25 m
• Maximum height difference (external unit above) 10 m

Dimensions and weight:

• Internal Unit HxWxD (mm): 255x698x190; 8.5 Kg (without packaging)
• External Unit HxWxD (mm): 481x765x310; 24 Kg (without packaging)

The assembly kit includes:

• 10 meters of 1/4" copper pipe - 0.8 mm wall thickness
• 10 meters of 3/8" copper pipe - 0.8 mm wall thickness
• 10 meter condensation pipe
• 10-meter power cable (for power and communication connection)
• Wall bracket
• EASY JOINT 1/4 SAE self-flaring nozzles
• EASY JOINT 3/8 SAE self-flaring nozzles

Green Electric

Green Electric branded products are imported and distributed in Italy by SuperSamaStore. The air conditioners are designed for the consumer market and offer a very good quality/price ratio.
