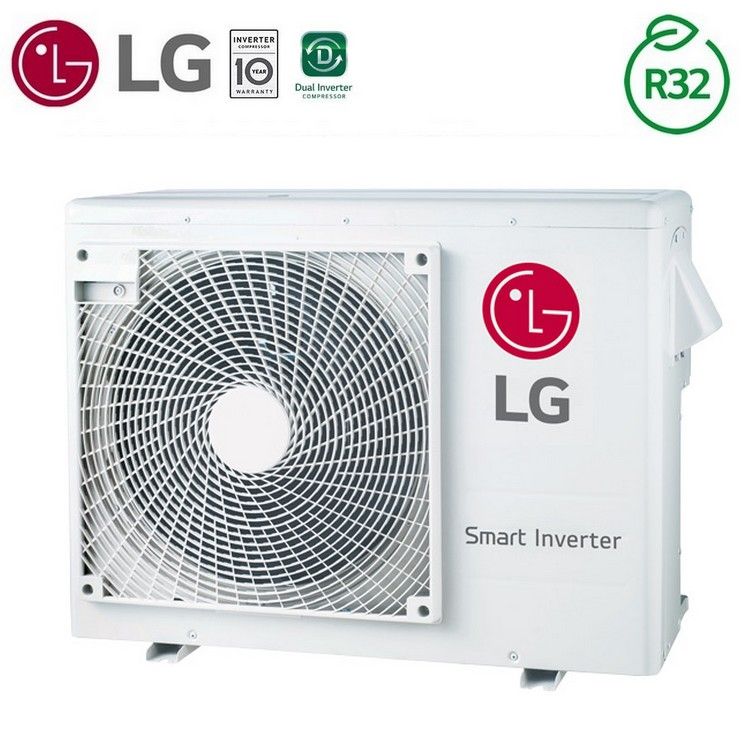

LG multi-quadra outdoor unit 7.0 kW R32 A++/A+

LG Electronics - MULTI SPLIT OUTDOOR UNIT

for paintings - can be combined with 4 internal units - R32 A+++/A++
Multisplit outdoor unit nominal capacity: cooling 5.3 kW heating 6.3 kW

Model:
Multi system external unit
Outdoor unit model: MU4R25.U22

Energy Efficiency:

Seasonal efficiency:
SEER: 8.00
SCOP (average/warmest/colder climate): 4.40
Energy Efficiency Class (Cooling): A++
Energy Efficiency Class (Heating): A+

Performance:
Cooling Capacity min - nom - max (kW) : 1.06 ~ 7.03 ~ 8.50
Heating capacity min - nom - max (kW) : 1.17 ~ 8.09 ~ 9.09
Connectable to 4 internal units with maximum power 11.0 kW
The unit must operate with a minimum of 2 indoor units connected
Sound Pressure (dB(A) : 49/53
Cooling power consumption min - nom - max kW: 0.29 ~ 1.76 ~ 2.77
Heating power consumption min - nom - max kW: 0.28 ~ 1.84 ~ 2.85

Electrical data:
Power supply (V/Hz/?) : 230/50/1

Characteristics:
Refrigerant gas: R32 - 1,400 Kg / 0.95 T.Co2 eq.
Liquid / gas pipe diameter (inches): 1/4” (6.35mm) - 3/8” (9.52mm)
Maximum length of pipes with standard load: 30 m
Maximum length of pipes with added load: 70 m
Maximum height difference (external unit above) 15 m
Operating limits (outside temperature): cooling from -10°c to +46°c / heating from -15°c to +24°c

Dimensions and weight:
Dimensions (WxHxD) mm: 870 × 650 × 330 ; 47 Kg without packaging

Product Code: MU4R25.U22
