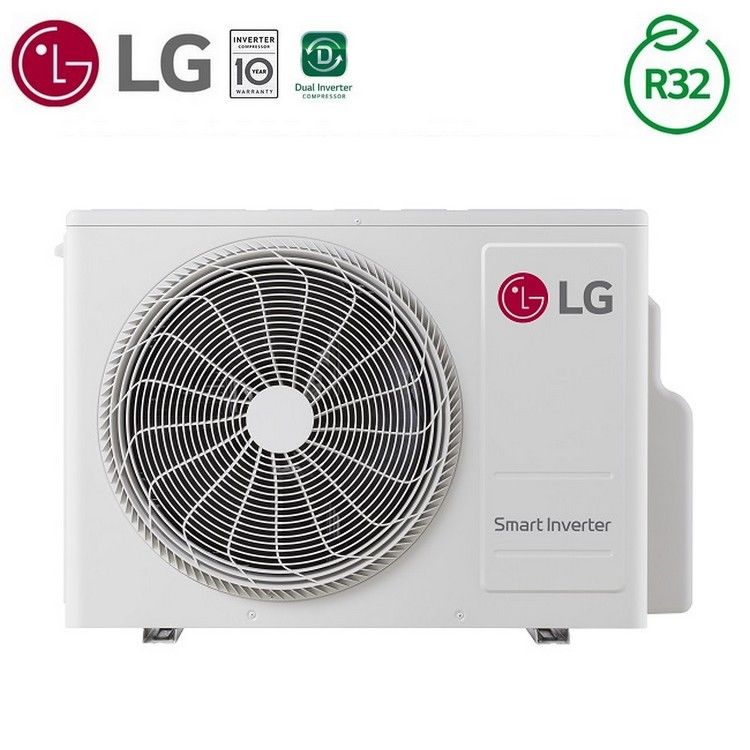

LG multi trial outdoor unit 5.3 kW R32 A+++/A++

LG Electronics - MULTI SPLIT OUTDOOR UNIT

for trial - can be combined with 3 internal units - R32 A+++/A++
Multisplit outdoor unit nominal capacity: cooling 5.3 kW heating 6.3 kW

Model:

Multi system external unit
Outdoor unit model: MU3R19.U23

Energy Efficiency:

Seasonal efficiency:
SEER: 8.60
SCOP (average/warmest/colder climate): 4.65
Energy Efficiency Class (Cooling): A+++
Energy Efficiency Class (Heating): A++

Performance:

Cooling Capacity min - nom - max (kW) : 1.06 ~ 5.27 ~ 6.33
Heating capacity min - nom - max (kW) : 1.17 ~ 6.33 ~ 7.33
Connectable to 3 internal units with maximum power 8.5 kW
The unit must operate with a minimum of 2 indoor units connected
Sound Pressure (dB(A) : 47/50
Cooling power consumption min - nom - max kW: 0.29 ~ 1.19 ~ 1.82
Heating power consumption min - nom - max kW: 0.28 ~ 1.32 ~ 1.93

Electrical data:
Power supply (V/Hz/?) : 230/50/1

Characteristics:
Refrigerant gas: R32 - 1,400 Kg / 0.94 T.Co2 eq.
Liquid / gas pipe diameter (inches): 1/4” (6.35mm) - 3/8” (9.52mm)
Maximum length of pipes with standard load: 30 m
Maximum length of pipes with added load: 50 m
Maximum height difference (external unit above) 15 m
Operating limits (outside temperature): cooling from -10°c to +46°c / heating from -15°c to +24°c

Dimensions and weight:
Dimensions (WxHxD) mm: 870 × 650 × 330 ; 44.5 kg without packaging

Product Code: MU3R19.U22
