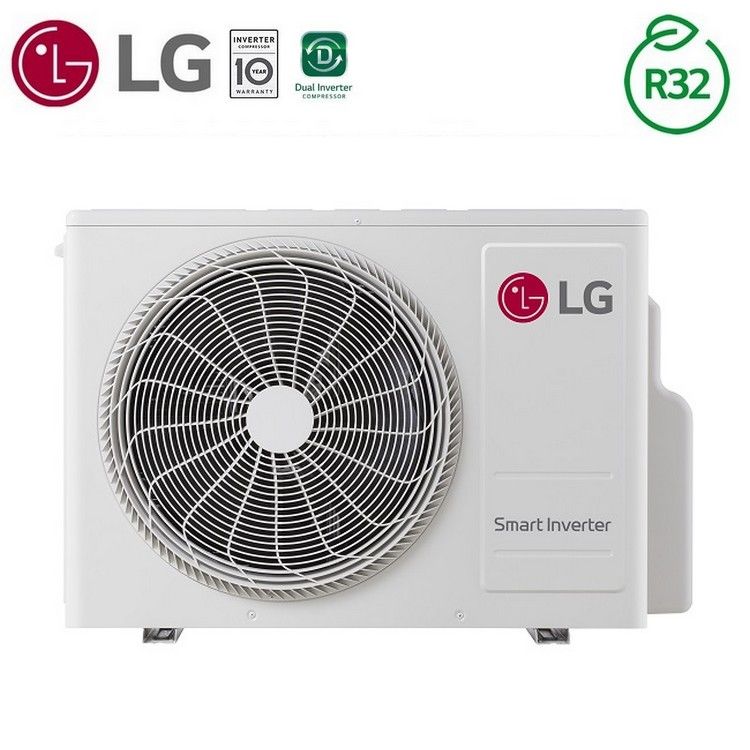

LG multi dual 4.1 kw R32 A+++/A++ outdoor unit

LG Electronics - MULTI SPLIT OUTDOOR UNIT

for dual - can be combined with 2 indoor units - R32 A+++/A++
Multisplit outdoor unit nominal capacity: cooling 4.1 kW heating 4.7 kW

Model:

Multi system external unit

Outdoor unit model: MU2R15.U13

Energy Efficiency:

Seasonal efficiency:
SEER: 8.60
SCOP (average/warmest/colder climate): 4.61

Energy Efficiency Class (Cooling): A+++

Energy Efficiency Class (Heating): A++

Performance:

Cooling Capacity min - nom - max (kW) : 0.88 ~ 4.10 ~ 4.72

Heating capacity min - nom - max (kW) : 0.97 ~ 4.69 ~ 5.39

Connectable to 2 internal units with maximum power 6.0 kW

The unit must operate with a minimum of 2 indoor units connected

Sound Pressure (dB(A) : 45/48

Cooling power consumption min - nom - max kW: 0.23 ~ 0.99 ~ 1.39

Heating power consumption min - nom - max kW: 0.24 ~ 1.07 ~ 1.46

Electrical data:

Power supply (V/Hz/?) : 230/50/1

Characteristics:

Refrigerant gas: R32 - 1.040 Kg / 0.702 T.Co2 eq.

Liquid / gas pipe diameter (inches): 1/4” (6.35mm) - 3/8” (9.52mm)

Maximum length of pipes with standard load: 20 m

Maximum length of pipes with added load: 30 m

Maximum height difference (external unit above) 15 m

Operating limits (outside temperature): cooling from -10°c to +46°c / heating from -15°c to +24°c

Dimensions and weight:

Dimensions (WxHxD) mm: 770x545x288; 32.5 kg without packaging

Product Code: MU2R15.U12
