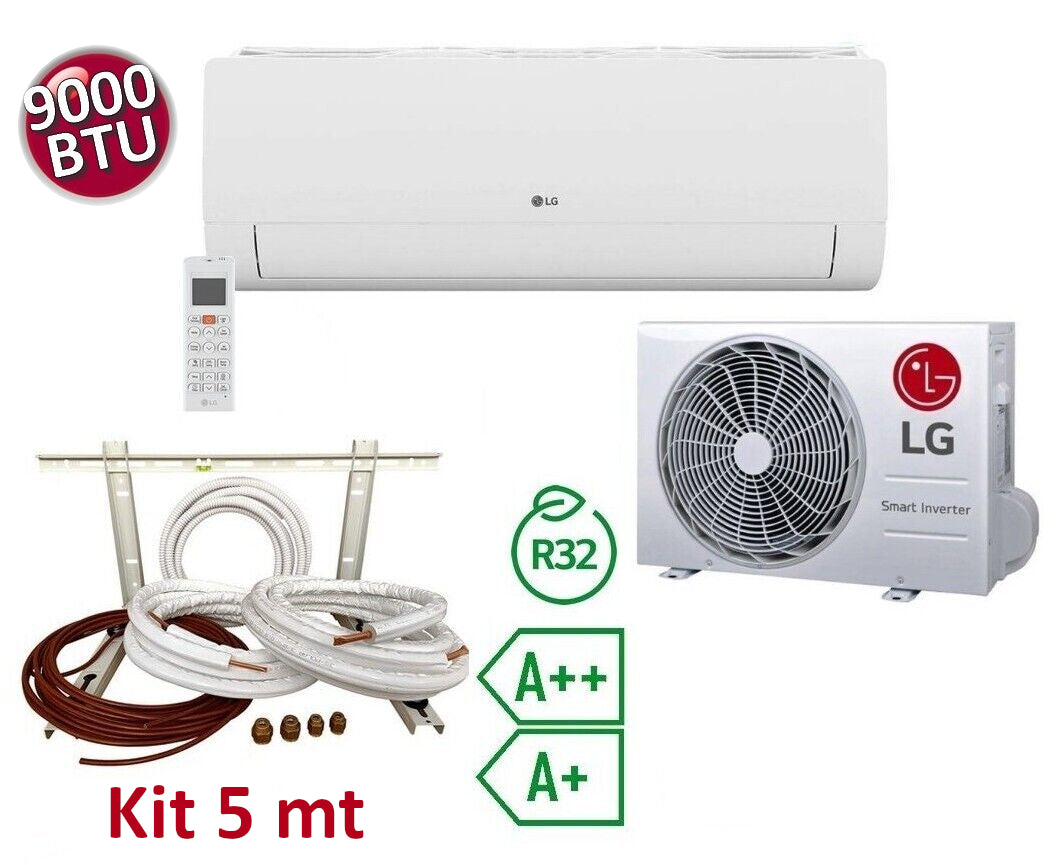

LG Electronics - FREE 9000 btu

Single-split air conditioning A++ / A+ R32 gas

Series: LIBERO TE with R32 refrigerant gas

• Indoor unit model: W09TE.NEU
• Outdoor unit model: W09TE.UEU
• Type: heat pump
• Power: 9000 BTU

Cooling Specifications:
Seasonal Cooling Efficiency Ratio (SEER) 6.1 Watts
Energy class in cooling A++
Annual energy consumption in cooling 143 kW/h
Cooling efficiency 9000 BTU
Cooling with air flow 7.0 ? / min
Cooling efficiency (EER) 3.03 W/W
Rated input power in cooling 825 Watt

Heating specifications:
Heating energy class A+
Annual heating energy consumption 604 kWh / year
Heating efficiency coefficient (COP) 3.4 W/W
Seasonal Rate of Return (SCOP) 5.1
Rated input power heating +7°C767 Watt
Supply air heating 7.0 ? / min
Refrigerant type R32

Noise levels:
Indoor unit cooling sound pressure (Sleep / Low / Moderate / High) 32 / 35 / 38 / 42 dBA
Indoor unit heating sound pressure (Low / Medium / High) 35 / 38 / 42 dBA
Outdoor unit cooling sound pressure (High)64 dBA

Dimensions and weight:
Internal unit dimensions (HxWxD) 25.5 x 69.8 x 19 cm
External unit dimensions (HxWxD) 45.9 x 71.2 x 27.6 cm
Indoor unit weight 7 kg
Weight of the outdoor unit 20 kg

The assembly kit includes:

• 5 meter 1/4" copper pipe - 0.8 mm wall thickness
• 5 meter 3/8" copper pipe - 0.8 mm wall thickness
• 5 meter condensation pipe
• 5 meter power cable (for power and communication connection)
• Wall bracket
• EASY JOINT 1/4 SAE self-flaring unions WITHOUT flaring tool
• EASY JOINT 3/8 SAE self-flaring unions WITHOUT flaring tool
