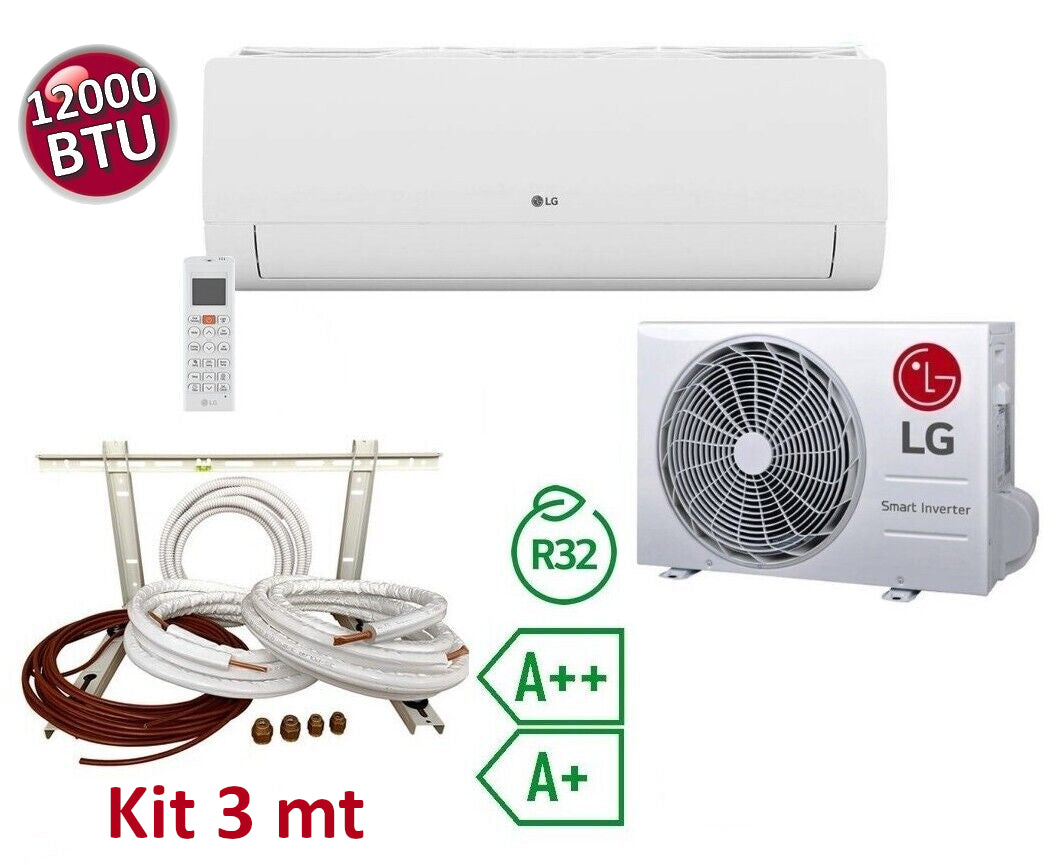

LG Electronics - FREE 12000 btu

Single-split air conditioning A++ / A+ R32 gas

Series: LIBERO TE with R32 refrigerant gas

• Indoor unit model: W12TE.NEU
• Outdoor unit model: W12TE.UEU
• Type: heat pump
• Power: 12000 BTU

Cooling Specifications:
Seasonal Cooling Efficiency Ratio (SEER) 6.1 Watts
Energy class in cooling A++
Annual energy consumption in cooling 189 kW/h
Cooling efficiency 12000 BTU
Cooling by air flow 9.2 ?/min
Cooling efficiency (EER) 2.92 W/W
Rated input power in cooling 1,130 Watts

Heating specifications:
Heating energy class A+++
Annual heating energy consumption 659 kWh / year
Heating efficiency coefficient (COP) 3.4 W/W
Seasonal Rate of Return (SCOP) 5.1
Rated input power heating +7°C 1,005 Watt
Refrigerant type R32

Noise levels:
Indoor unit cooling sound pressure (Sleep / Low / Moderate / High) 29 / 32 / 36 / 40 dBA
Indoor unit heating sound pressure (Low / Medium / High) 31 / 35 / 40 dBA
Outdoor unit cooling sound pressure (High) 65 dBA

Dimensions and weight:
Indoor unit dimensions (HxWxD) 25 x 77.7 x 20.1 cm
Outdoor unit dimensions (HxWxD) 45.9 x 71.2 x 27.6 cm
Indoor unit weight 7.8 kg
Weight of the outdoor unit 20 kg

The assembly kit includes:

• 3 meter 1/4" copper pipe - 0.8 mm wall thickness
• 3 meter 3/8" copper pipe - 0.8 mm wall thickness
• 3 meter condensation pipe
• 3 meter power cable (for power and communication connection)
• Wall bracket
• EASY JOINT 1/4 SAE self-flaring unions WITHOUT flaring tool
• EASY JOINT 3/8 SAE self-flaring unions WITHOUT flaring tool
