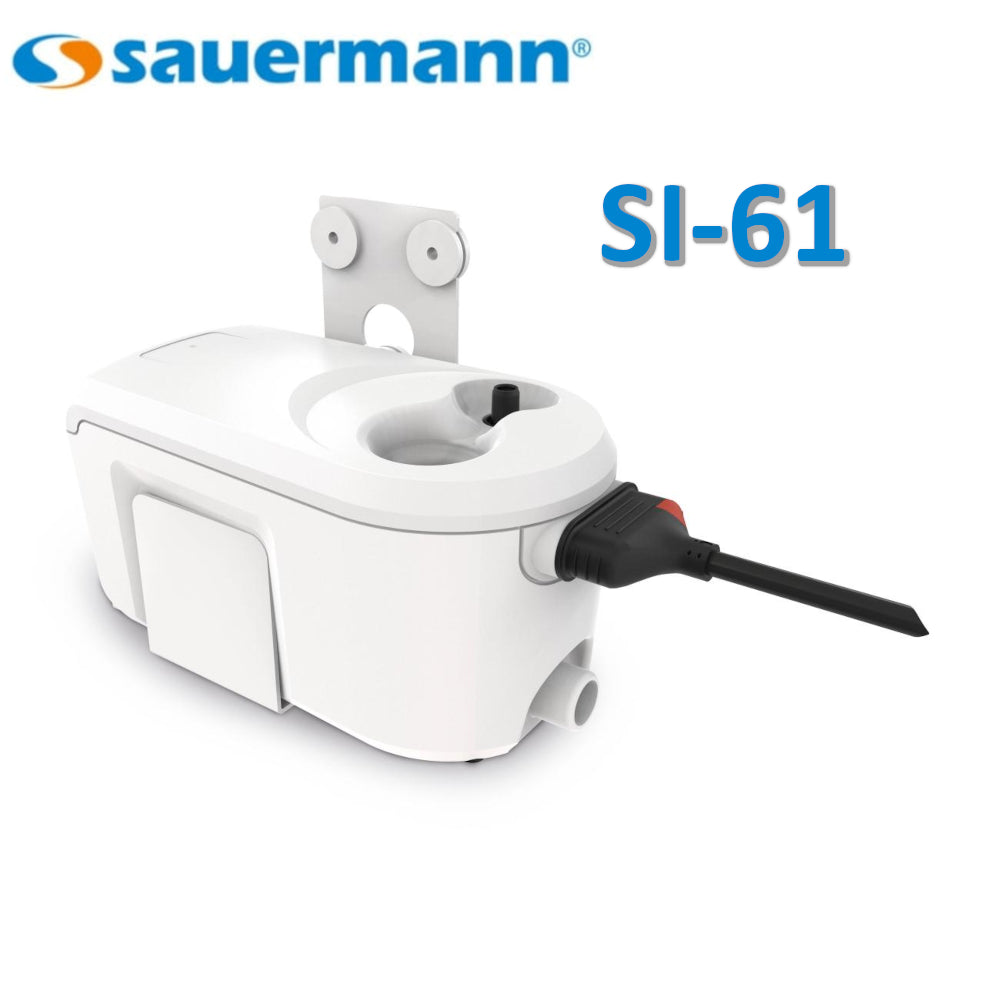

Si-61 PISTON CONDENSATE DRAIN PUMP
FOR CONDENSING BOILERS UP TO 50 kW

Description:
The Si-61 is a neutral-coloured piston pump, ideal for residential environments, with a built-in tank (0.37 l) designed to eliminate acid condensation produced by condensing boilers up to 50 kW.
Sauermann® technology allows the removal of particulate matter and, thanks to the innovative float, makes the pump completely reliable on condensing boilers.
White color, small size and low noise level make the Si-61 ideal for installation even in the kitchen.

Technical details:
Maximum flow rate: 10 l/h
Maximum head: 4 m
Maximum pressure: 8 m
Insulation class: Double insulation
Power supply: 230 V~ 50/60 Hz - 10W
Operating conditions: 100% continuous
Protection: IPX4
Color: White
Tank volume: 0.37 L
Main package: 5
Safety switch: NC: 4 A resistive 250 V
Detection: ON: 28 mm / OFF: 24 mm / Safety: 35 mm

Advantages:
Patented technology

• Best performance and high flow rate reduce
• operating time and energy consumption
• Proven reliability
• Superior delivery heights

Easy to Install

• Designed for intuitive installation
• Compact size
• Lockable plug-in power cord to prevent
• accidental disconnection
• 0.37 l tank to collect acid condensate from
• condensing boilers

Pollution resistant

• Resistant to acid condensation
• Able to remove small particles
• Sturdy float, the shaft rotates out of the water
• IPX4, for greater protection of the parts
• mechanical and electrical

Adapted to living spaces

• White color
• Compact size
• Low noise level. Anti-vibration wall bracket.
• with rubber shock absorbers

Kit contents

• - Monoblock piston pump with 0.37 l tank
• - Integrated float detection unit
• - 1.5m plug-in power cord, 2 power wires, 2 safety contact wires
• - Rubber adapter for inlet Ø int. 15-20-24-32-40 mm (Ø int. 5/8''-3/4''-1''-1''¼-1''½)
• - 5 m of hose (internal Ø 6 mm - 1/4'')
• - Safe device emptying system
• - Self-sealing exhaust connection
• - Double wire spring clips (x4)
• - 2 screws, 2 dowels

Product Code: SI61CE02UN23
