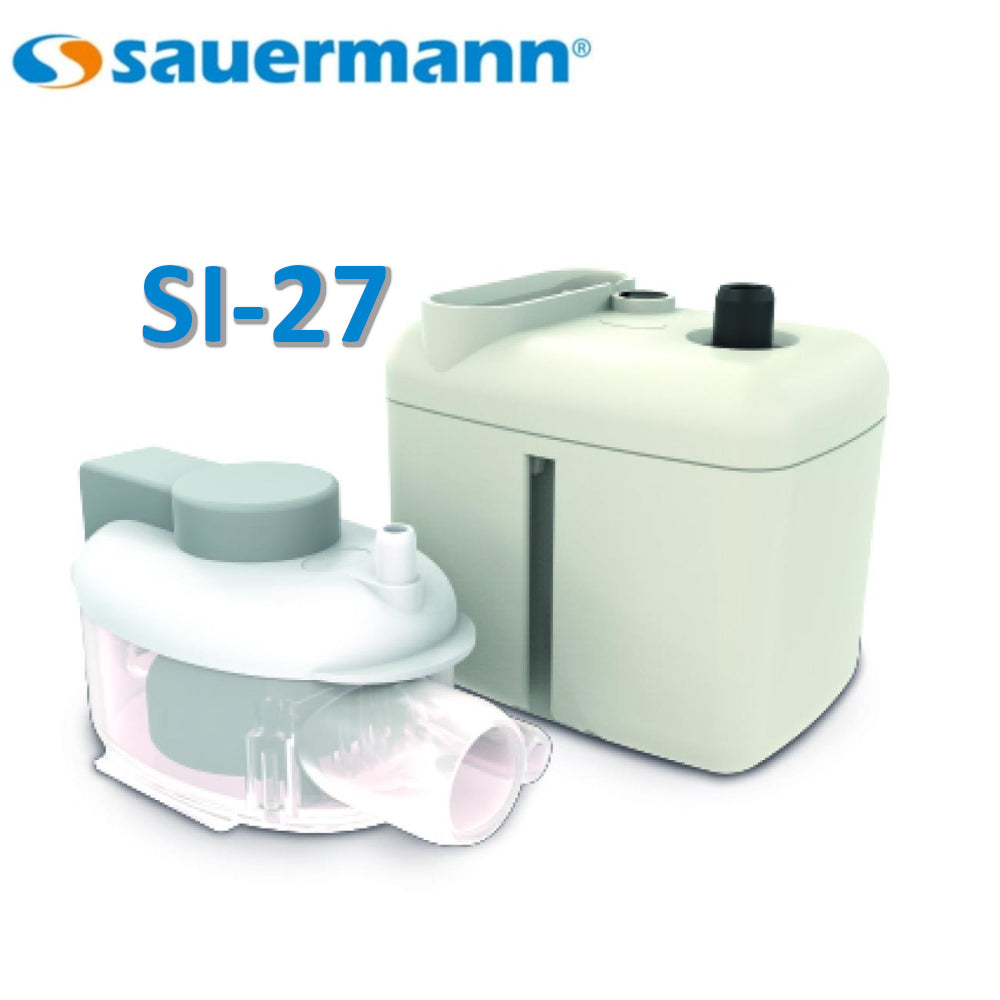

Si-27 CONDENSATE DRAIN PUMP

SUITABLE FOR AIR CONDITIONERS UP TO 20 kW

Description:

The Si-27 is suitable for air conditioners up to 20 kW. The piston pump technology is specifically designed to drain the condensate they produce.
Highly reliable in all types of environments, the Si-27 offers one of the quietest sound levels, regardless of the volume of condensate being discharged.

Technical details

Maximum flow rate: 20 l/h
Maximum head: 10 m
Maximum pressure: 14 m
Maximum suction height: 3 m
Insulation class: Double insulation
Power supply: 230V 50/60Hz 14W
Operating conditions: 100% continuous cycle
Protection: IP20
Main package: 20
Safety switch: NO - NC 8A resistive – 250 V
Detection: Detection block

Advantages:

Patented technology

• High performance: a single code for a product suitable for air conditioners up to 20 kW.
• Highly resistant to pollution in any environment. Capable of discharging small particles.
• Proven reliability.

Silence

• Low noise levels during operation (20 dBA, tested by an independent laboratory).
• The power of the air conditioner and the volume of condensate to be drained do not affect the sound volume of the pump.

Easy installation

• Compact design.
• Pump fixing plate that allows for wall, pipe or suspension mounting.
• Removable electric cable that simplifies maintenance and replacement operations.
• Safety contact

Energy saving

• Thanks to the high flow rate, short operating times and low power consumption.

Kit contents

• - Piston pump
• - Fixing plate
• - 1.5m detachable power cord
• - Transparent PVC tube Ø int. 6 mm, L 1.5 m
• - 6 Rilsan
• - Detection block (SI2958, 1.5 m power cable)
• - Detection block installation kit:
  • ? fitting Ø int. 15 x L 35 mm
  • ? vent pipe Ø int. 4 x L 75 mm
  • ? assembly sled
  • ? sticker
