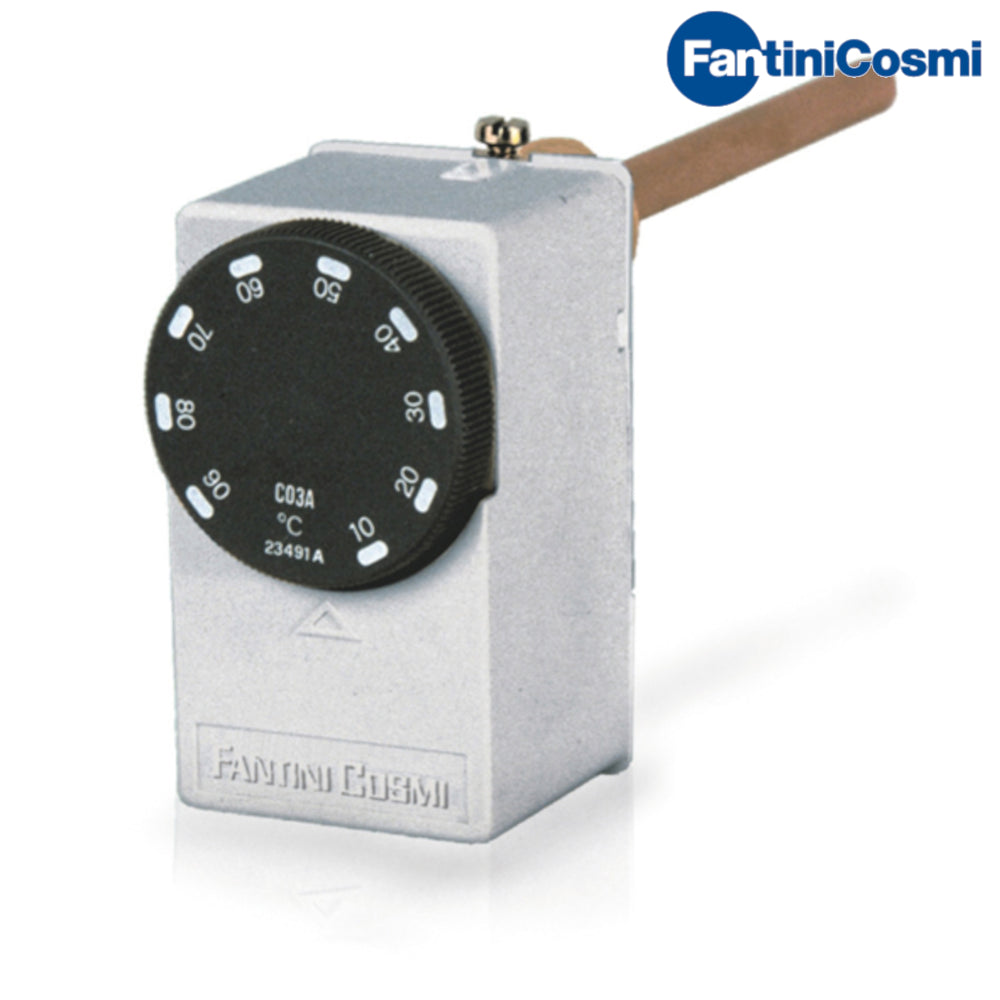

IMMERSION THERMOSTAT WITH SHEATH

RANGE 10 ÷ 90° C - FOR BOILERS AND HEATING SYSTEMS

Description:

Control thermostats for direct pipe mounting, supplied with a sheath for immersion in the fluid being controlled. Suitable for boilers, heating systems, circulation pumps, burners, and unit heaters.

General characteristics:

• Sensitive element with stainless steel membrane.
• Copper bulb and capillary.
• Copper sheath with Gc 1/2 PN10 connection.
• Base, cover and knob in shockproof and self-extinguishing V0 thermoplastic material.
• Electrical connections output with PVC cable gland.
• Differential 6 ± 1 K (the differential must be subtracted from the scale value, the values ​​refer to a thermal gradient of 1K/min in liquid, 4K/hour in air)
• Permissible body temperature -35 ÷ 120°C
• Storage and transport temperature -35 ÷ 120°C

Electrical characteristics:

• Snap action microswitch with gold-plated AgCdO contacts;
• Rated insulation voltage Ui 380V~;
• Rated continuous service current Ith 15A.
