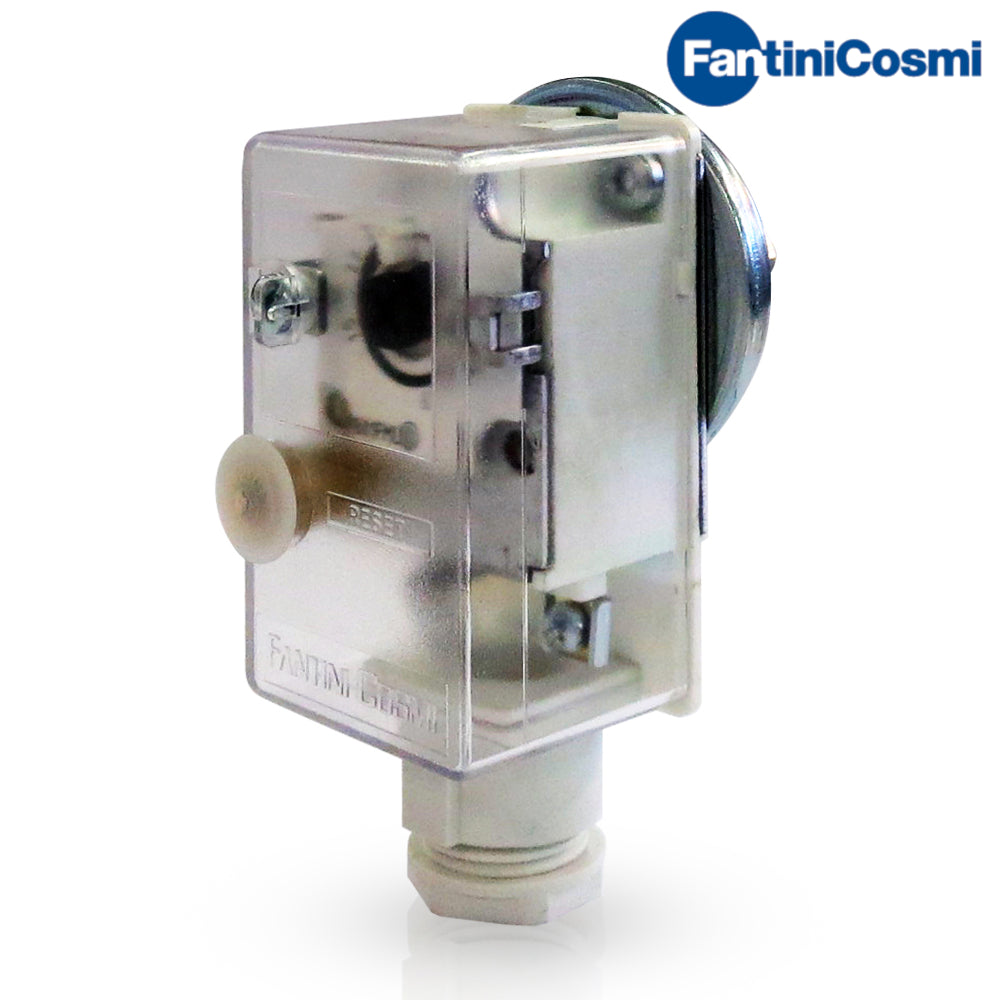

MINIMUM PRESSURE SWITCH

MANUAL REINSERT - G 1/4" F

Description:

Locking and safety pressure switch with manual reset, suitable for heating systems.

General characteristics:

• Sensitive element with stainless steel membrane, laser welded.
• Lid made of shockproof thermoplastic material.
• Connection output with shockproof and self-extinguishing V0 thermoplastic cable gland.
• Maximum controlled fluid temperature 120°C.
• Maximum pressure switch body temperature -35 ÷ 80°C.
• Storage and transport temperature -35-80°C.
• Unit weight 0.15 Kg.

Electrical characteristics:

• Snap-action microswitch with manual reset and silver alloy contacts.
• Contact rating according to EN 60730-1: 15(6)A 250V~ 50Hz
• Flow rate according to EN 60947-5-1
• Rated insulation voltage Ui 380V~
• Rated continuous service current Ith 15A
• Rated operational current Ie: 220V- 250V~ 380V~
• AC-12 resistive load – 15A 10A
• Inductive load AC-15 – 2.5A 1.5A
• DC-13 0.2A direct current – ​​–
