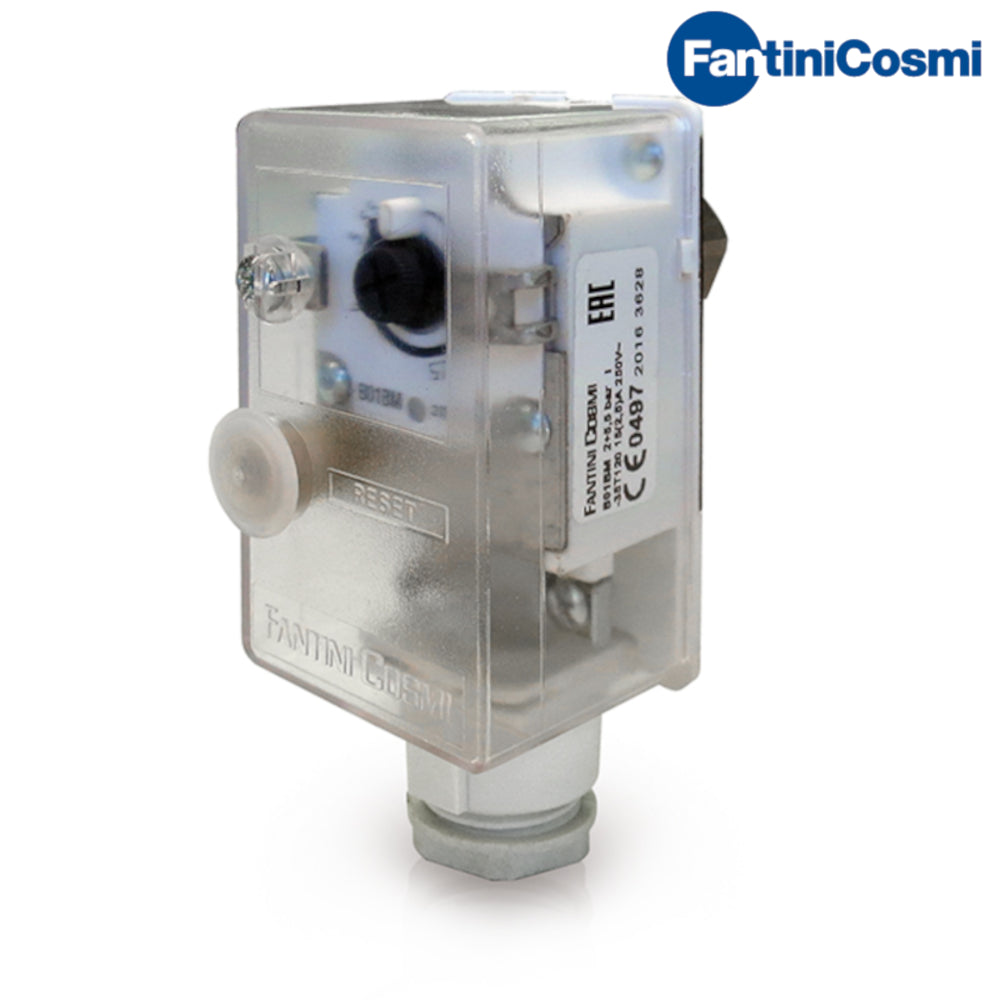

MAXIMUM PRESSURE SWITCH

MANUAL RESET - IP44 G 1/4" F

Description:

Locking and safety pressure switch with manual reset, suitable for heating systems

General characteristics:

• Laser welded stainless steel wetted parts.
• Base, cover in shockproof and self-extinguishing V0 thermoplastic material.
• Connection output with G 1/2 cable gland in shockproof and self-extinguishing V0 thermoplastic for connection output.
• Sensitive element with stainless steel membrane.
• Internal adjustment: The case is designed to be sealed after calibration.
• Maximum controlled fluid temperature 120°C.
• Permissible temperature of the pressure switch body -35 ÷ 80 °C.
• Storage and transport temperature -35 ÷ 80 °C.
• Unit weight 0.14 Kg.

Electrical characteristics:

• Rated insulation voltage Ui 380V~
• Rated continuous service current Ith 15A
