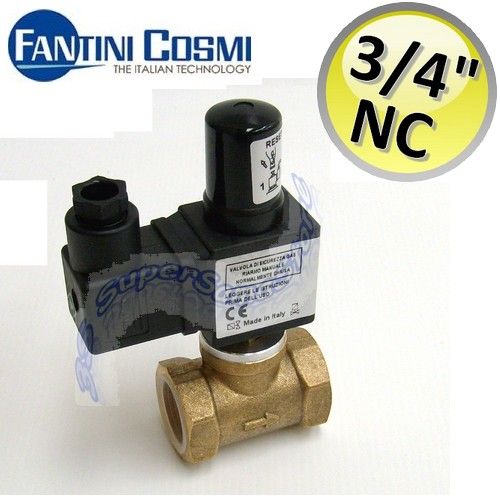

Fantini Cosmi 3/4'' gas safety solenoid valve with manual reset, normally closed
Fantini Cosmi 3/4'' gas safety solenoid valve with manual reset, normally closed
Regular price
€73,76
Regular price
Sale price
€73,76
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
GAS SAFETY SOLENOID VALVE
3/4' - BRASS BODY - MANUAL RESET NORMALLY CLOSED - ZDVGRM20NC - FANTINI COSMI
ELECTRICAL CHARACTERISTICS
Nominal voltage 230V AC 50/60Hz
REGULATIONS AND APPROVALS
Compliant with EN 161-EN60529 standards
INSTALLATION
Check that the flow direction matches the raised arrow on the valve body, ensure the connection pipes are correctly aligned, and maintain a sufficient distance from the walls to allow for free air circulation. The valve can be mounted with a horizontal or vertical coil.
The coil can in turn be oriented in any direction over 360°.
Install in an area protected from rain, splashes or dripping water.
To make the electrical connection, remove the connector cover and connect the power cables to the rectifier circuit terminals.
CHARACTERISTICS
CHARACTERISTICS
Connections: ISO 7/1 gas threaded from RP 1/2 to RP 2
flanged PN16 ISO 7005 from DN65 to DN100
Voltage tolerance -15% / +10%
Ambient temperature -15°C / +60°C
Operating pressure 500 mbar Max.
Closing time < 1 second
Degree of protection IP 65
PG 9 cable gland
G1/4' pressure ports on both sides (excluding models with brass body)
Limit switches on request from 3/4' to 4'
Gas type: air and non-aggressive gases (EN 437)
600 ?m filter (excluding models with brass body)
Product Code: ZDVGRM20NC
