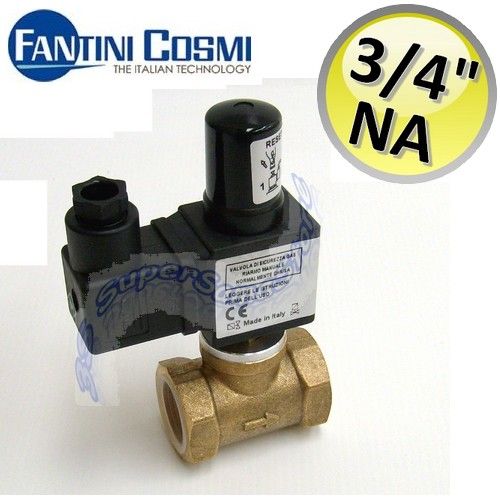

Solenoid valves for air and non-aggressive gases (according to EN437) normally open with manual reset.

ELECTRICAL CHARACTERISTICS

Nominal voltage 230V AC 50/60Hz

REGULATIONS AND APPROVALS

Compliant with EN 161-EN60529 standards

INSTALLATION

Check that the flow direction matches the raised arrow on the valve body, and ensure the connection pipes are correctly aligned. The valve can be mounted with a horizontal or vertical coil.

The coil can in turn be oriented in any direction over 360°.

Install in an area protected from rain, splashes or dripping water.

To make the electrical connection, remove the connector cover and connect the power cables to the terminals.

CHARACTERISTICS

• Connections: ISO 7/1 gas threaded from Rp 1/2 to Rp 2

• flanged PN16 ISO 7005 from DN65 to DN100

• Voltage tolerance -15% / +10%

• Ambient temperature -15°C / +60°C

• Operating pressure 500 mbar Max.

• Closing time < 1 second

• Degree of protection IP 54

• PG 9 cable gland

• G1/4' pressure ports on both sides (excluding models with brass body)

• Limit switches on request from 3/4' to 4'

• Gas type: air and non-aggressive gases (EN 437)

• 600 ?m filter (excluding models with brass body)

  Product Code: ZDVGRM20NA
