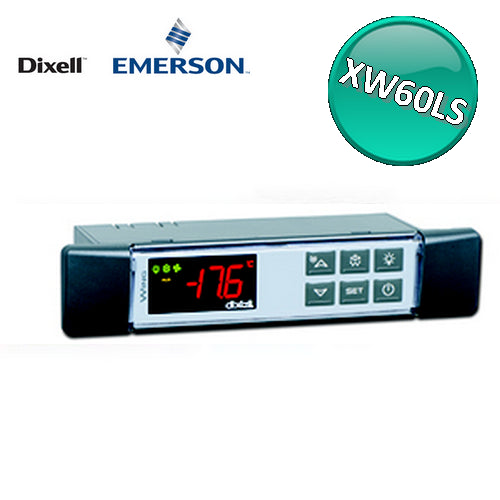

DIXELL XW60LS 230 Vac digital controller for TN and BT with defrost management and fans
Characteristics:
The XW60L is a microprocessor controller, suitable for applications on medium or low temperature ventilated refrigeration units.
It has four relay outputs for controlling the compressor, defrost,
They are equipped with 2 selectable NTC or PTC probe inputs, one for thermostat control,
They are equipped with an output for programming the parameter list via the “Hot Key” programming key.
Here are the main features of the XW60L:
Dimensions
38x185mm
Generals
Power supply: 24, 110, 230Vac
Number of display digits: ± 3 dp
Number of keyboard buttons: 6
Probe inputs
Thermostat: NTC/PTC
Defrost: NTC/PTC
Capacitor: NTC/PTC
Display: NTC/PTC
Digital inputs
Alarm, defrost start, door switch, pressure switch, probe: configurable
OF 2: configurable
Relay outputs
Compressor: 20A
Defrost: 8A
Fans: 8A
Light: 8A, 16A
Other
Hot Key/Prog Tool Kit: present
Serial output: TTL
Remote display output : X-REP optional
Buzzer: optional
Internal clock: optional
Product Code : XW60LS
