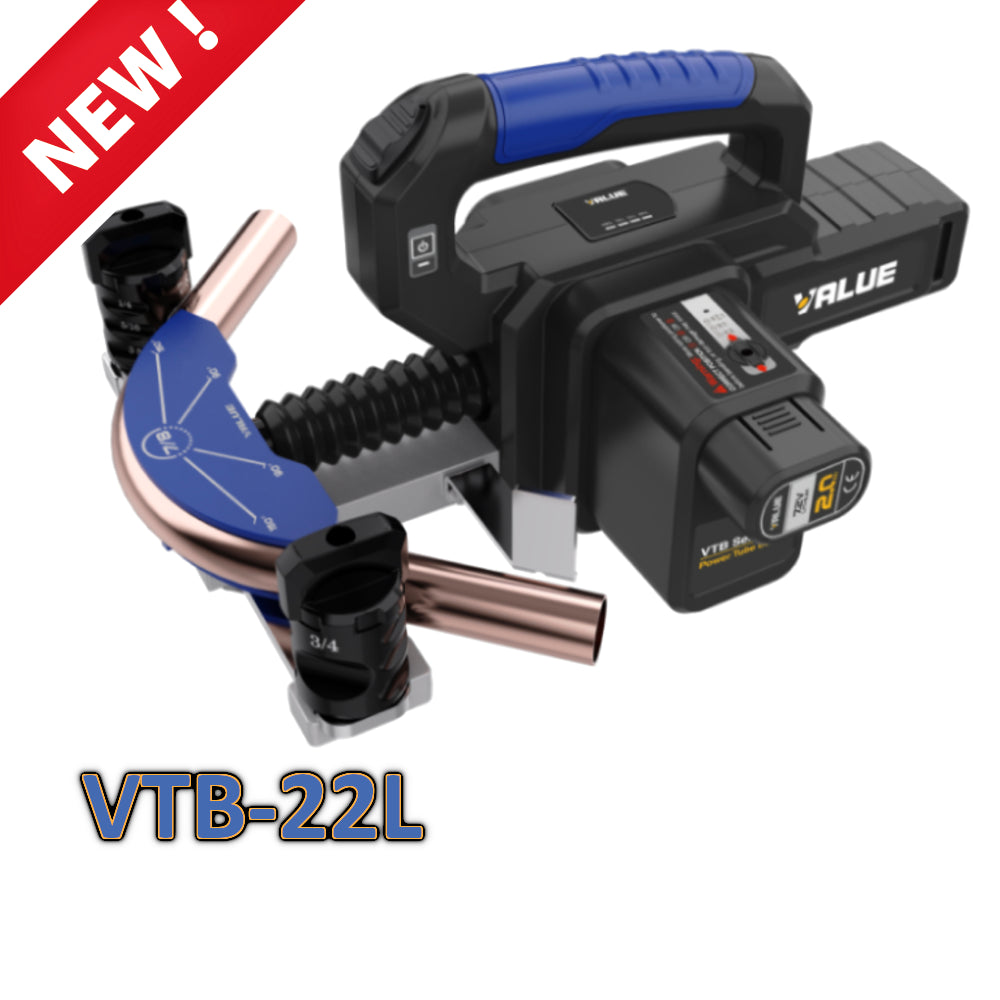

BATTERY-OPERATED PIPE BENDER

FOR COPPER PIPES WITH BATTERY AND BATTERY CHARGER

DESCRIPTION:

VALUE VTB-22L Cordless Copper Pipe Bender (HVACR) - for ¼' (6mm), 5/16' (8mm), 3/8' (10mm), 1/2' (12mm), 5/8' (16mm), 3/4' (19mm), 7/8' (22mm) pipes

• Bending/curving copper tubing for the refrigeration and air conditioning (HVACR) industry can be difficult, especially for large diameter tubing, and requires a lot of time and attention to achieve a professional job.

• Furthermore, removing the tube from a traditional mandrel is often a delicate operation.

• The VALUE TF-VTB22L cordless bending/folding machine saves you time and labor, making your work much easier and more precise.

• Suitable for 1/4' (6 mm), 5/16' (8 mm), 3/8' (10 mm), 1/2' (12 mm), 5/8' (16 mm), 3/4' (19 mm), 7/8' (22 mm) copper pipes.

• With a simple push of the control on the bender, you can bend the pipe to any desired angle. Once the bend is complete, the deflector automatically ejects the pipe while the tool resets, helping you remove the pipe effortlessly.

• The high-capacity lithium battery provides approximately 90 folds per charge and can be fully charged in 35 minutes.

• Dimensions: 325 x 250 x 180 mm

• Weight: 5.9 kg

• Operating temperature: 5 - 40 °C

• Lithium battery 7.2 V - 2Ah - 14.4 Wh

• Charging time: 35 minutes

• The battery and charger are compatible with the VET19Li cordless flaring tool and the VTE-29D and VTE-42D cordless tube expanders.

Included:

? Lithium battery 7.2 V - 2Ah - 14.4 Wh

? 230 V AC (50-60 Hz) - 50 W battery charger.

Plastic case.

NOTE:

VTBRK reverse bending kit available for purchase separately

With the kit, it is possible to bend the copper pipe in the opposite direction to that of the cordless bender (i.e. outwards).

Product Code: VTB-22L
