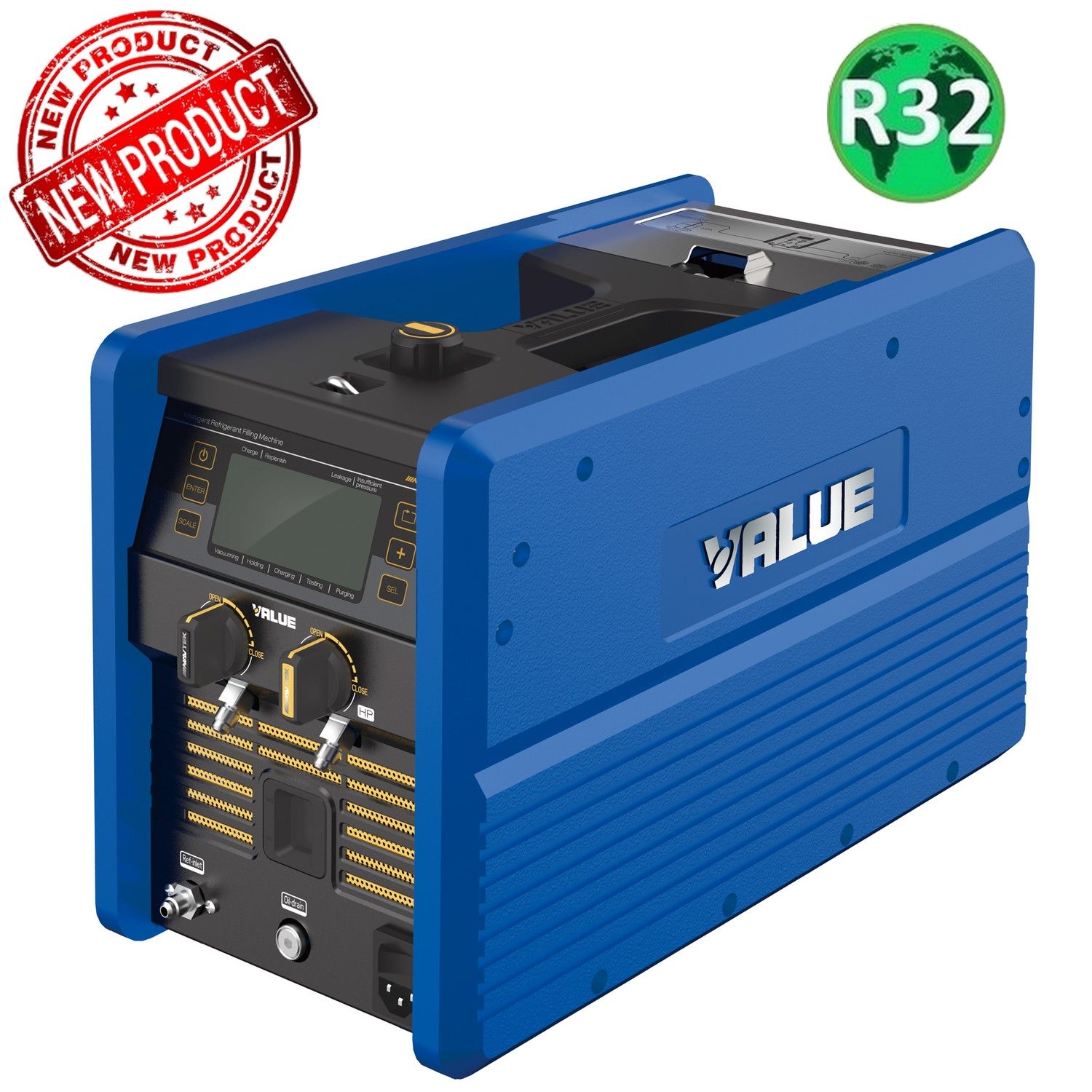

PORTABLE AUTOMATIC CHARGING AND VACUUM STATION

CHARACTERISTICS:

The world's first intelligent and portable automatic station NAVTEK is an innovative multifunctional tool, dedicated to HVAC professionals.

It contains everything necessary to ensure perfect start-up and simple maintenance of air conditioning/refrigeration systems.

The station carries out three actions autonomously and in complete safety:

• Vacuum/drying operation of the plant;

• Empty value monitoring and leak detection operation;

• System charging operation and bringing operating pressures up to standard.

The station is equipped with a precision wireless digital scale housed in a special compartment, 3 flexible hoses for connection to the systems, a high-flow two-stage vacuum pump (170 LT/min) and a digital manifold (approved for R32, R1234YF and R1234ZE).

It eliminates the possibility of errors during the delicate installation/maintenance phases of refrigeration systems, thanks to the possibility of being completely programmed by the operator (vacuum value to be reached, quantity of refrigerant to be inserted into the system and working pressures/temperatures to be satisfied).

TECHNICAL DATA:

Power supply: 230V~50-60hz

Vacuum Rating: 6.0 CFM

Charge: 30 g/s

Engine power: 1/2 Hp

Operating temperature: 5°C~40°C

Dimensions: 484 x 254 x 328 mm

Weight: 21.3 kg

Product Code: VRC-6100I
