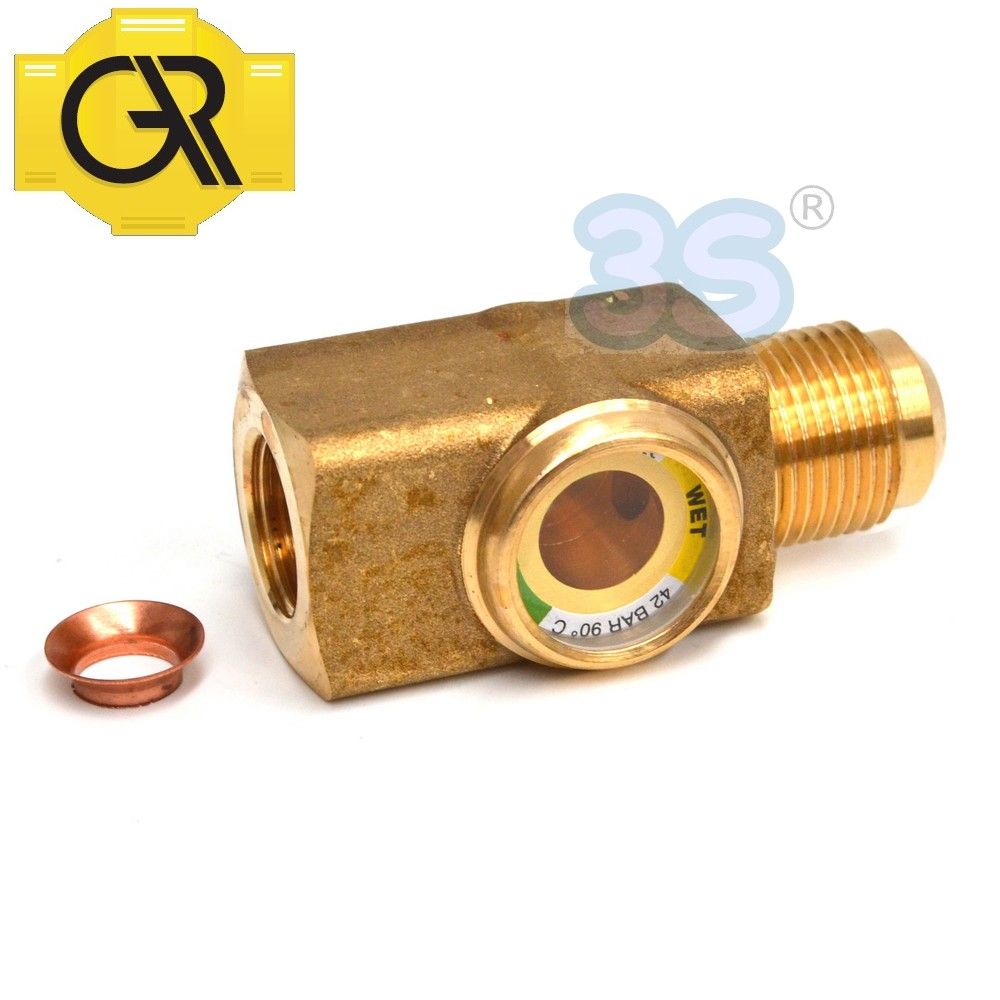

Moisture and Liquid Indicator 5/8'' SAE Male-Female GAR SPU-5MF

LIQUID and MOISTURE INDICATOR for REFRIGERATED SYSTEMS - 5/8 male/female - GAR SPU-5MF

CHARACTERISTICS:

GAR liquid and humidity indicators are constructed from a single forged brass block with riveted portholes to ensure a perfect watertight seal.

The SPU models are equipped with a color changer that is highly sensitive to humidity, resistant to acids and compatible with all refrigerants.

These features allow for safe and immediate monitoring of the humidity level and liquid state of the refrigerant thanks to the colour variation of the paper (yellow=humidity / green=dry).

Building materials

CW 617N forged brass body

Operating conditions

Temperature - 40°C + 70°C

Working pressure 42 bar

Applied standards : EN 378-2 97/23/CE (PED) 2002/95/EC (RoHS)

Product Code: SPU-5MF
