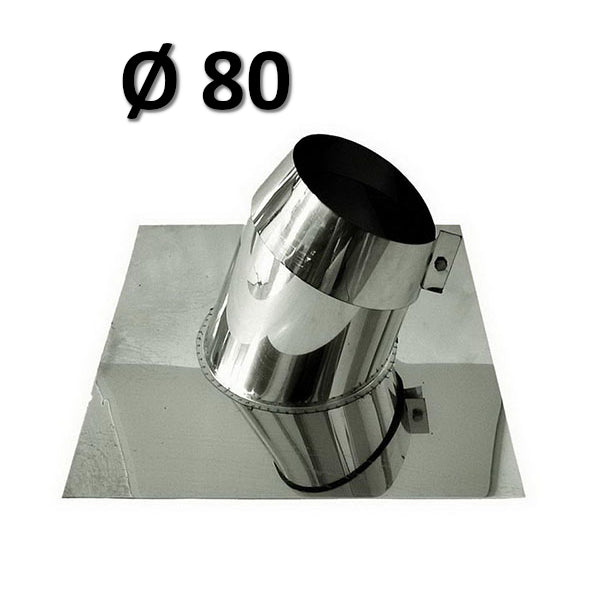

Lead flue for sloping roofs with 80 mm diameter chimney

STAINLESS STEEL / LEAD INCLINED FLANGE Ø 80

DESCRIPTION:

Pitched roof flashing with lead base DN 80. The sloping flashing is positioned on the roof and comes complete with flashing for 5° to 20° pitched roofs. The lead base adapts to uneven surfaces. The flue element is made of 0.5 mm thick 316 stainless steel. TIG welding without filler material ensures high resistance to corrosion caused by acid condensation and ease of maintenance. The various elements are connected via a male/female socket joint. The system is CE certified in compliance with the EN1856-2:2009 standard. It withstands operating temperatures of up to 600° in negative pressure (n1) without a gasket, and 200° in positive pressure (p1) using the special silicone gasket sold separately, which guarantees the joints are perfectly sealed against gases and condensation. It also complies with the UNI/TS 11278:2008 installation standard. Designation with gasket: EN 1856-2 – T200 – P1 – W – V2 – L50040 - 0 Designation without gasket: EN 1856-2 – T600 – N1 – D– V2 – L50040 – G600

Product Code: SPFI20080P
