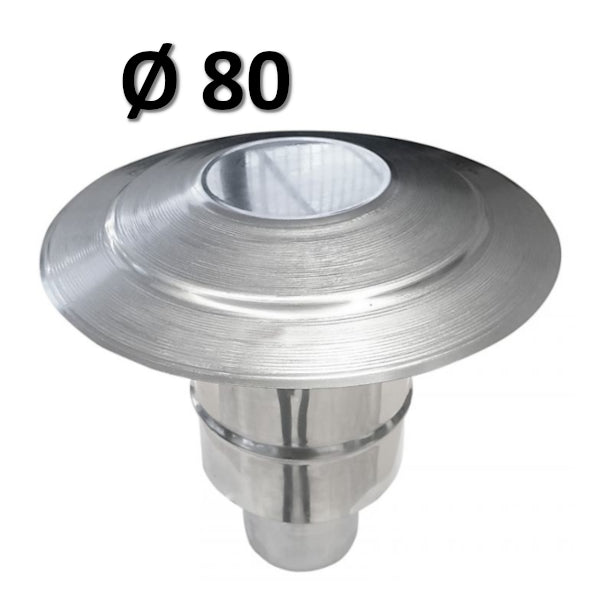

Chinese hat flue terminal in steel - windproof Ø 80

CHIMNEY TERMINAL WITH CHINESE HAT - WINDPROOF Ø 80

DESCRIPTION:

Chimney flue terminal, Chinese/windproof cap DN 80. This windproof cap is a flue terminal that prevents rainwater from entering the flue and ensures proper smoke evacuation even in windy conditions. The flue element is made of 0.5 mm thick 316 stainless steel. TIG welding without filler material ensures high resistance to corrosion caused by acid condensation and ease of maintenance. The various elements are connected via a male/female socket joint. The system is CE certified in compliance with the EN1856-2:2009 standard. It withstands operating temperatures of up to 600°C in negative pressure (n1) without a gasket, and 200°C in positive pressure (p1) using the special silicone gasket sold separately, which guarantees the joints are perfectly sealed against gases and condensation. It also complies with the UNI/TS 11278:2008 installation standard. Designation with gasket: EN 1856-2 – T200 – P1 – W – V2 – L50040 - 0 Designation without gasket: EN 1856-2 – T600 – N1 – D– V2 – L50040 – G600

Product Code: SPCA07080
